Swinghandle FS PrC Stainless Steel for PHZ

ICON_IP65
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_PZ_DIN_18252
ICON_FLACHSTANGE
ICON_EDELSTAHL
ICON_CUTOUT_PR_C
ICON_DIRAK_GEERDET
7_065
E_7-060
7_065
E_7-060

Advantages

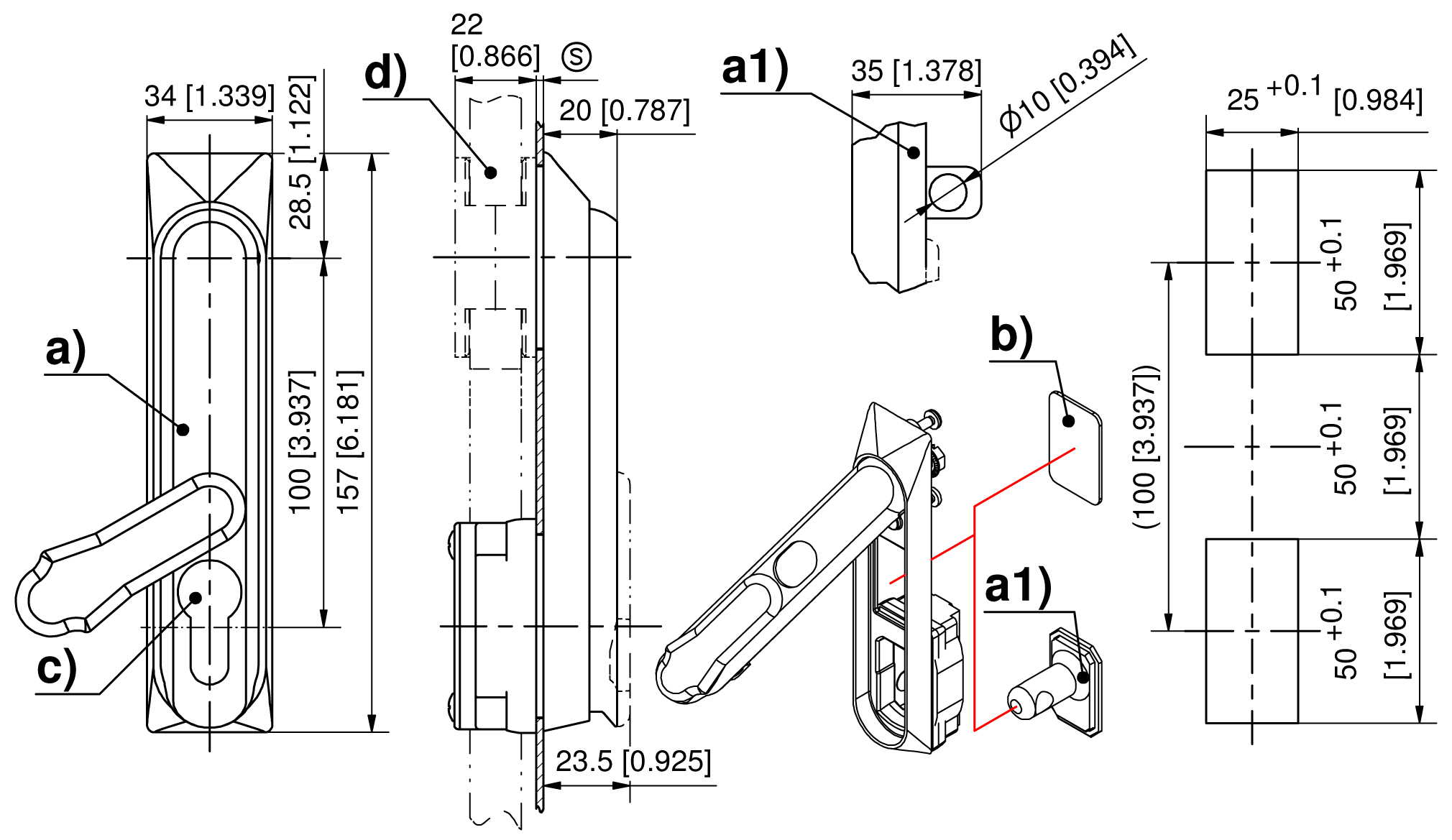

  • Swinghandle for profile cylinder to DIN 18252.
  • IP65 DIN EN 60529 within the sealed area.
  • The padlock device with rectangular base is fitted from the rear and so held captive between door and swinghandle body.
  • This opening can be filled with a rectangular blanking plate.

Material

  • Swinghandle, dish, bearing part, dust cover and padlock bolt: AISI 316
  • Blanking plate: AISI 304
  • Swinghandle shaft: AISI 303
  • Cap: PA, black

Remarks

(S) Door-thickness 1.5 - 2.5mm

Swinghandle for application with rod latch see product system 7-040 and cutout version PrC 50x25mm.

Profile half cylinders and their assembly must be ordered separately.

Selected version

Product number 207-9292.00-00000
Delivery Unit: 1 pc.
Installation type: screw-on
Padlock: -
Cylinder cover: -
CAD model
Remove selection Product data sheet

Related Products

Assembly options



Article no.
Name

207-0016.00-00000
Assembling of inserts / profile-cylinder
Details
Name:
Assembling of inserts / profile-cylinder
Delivery Unit:
1 pc.
Open product in new tab

Accessories



Article no.
Name

b)
207-2506.80-00000
Blanking plate for opening
Details
Name:
Blanking plate for opening
Delivery Unit:
1 pc.
Open product in new tab
c)
2-140
Profile-Cylinder DIN 18252
Open overview in new tab
c)
211-9003.00-00000
DIRAK pin cylinder, DIN 18252, 8 x 45° adjustable, keyed alike
Details
Latching type:
keyed alike
Clip-in:
No
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9004.00-00000
DIRAK pin cylinder, DIN 18252, 8 x 45° adjustable, keyed different
Details
Latching type:
keyed different
Clip-in:
No
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9101.00-00000
keyed different
Details
Latching type:
keyed different
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9102.00-00000
keyed alike DIRAK 1333
Details
Latching type:
keyed alike DIRAK 1333
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
511-9102.00-00000
keyed alike DS200
Details
Latching type:
keyed alike DS200
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9301.00-00000
keyed different, 90°
Details
Latching type:
keyed different
Closing stroke:
90°
Clip-in:
No
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9302.00-00000
keyed alike DIRAK 1333, 90°
Details
Latching type:
keyed alike DIRAK 1333
Closing stroke:
90°
Clip-in:
No
Delivery Unit:
1 pc.
Open product in new tab
c)
511-9302.00-00000
keyed alike DS200, 90°
Details
Latching type:
keyed alike DS200
Closing stroke:
90°
Clip-in:
No
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9113.00-00000
Snap Profile-cylinder, keyed alike DIRAK 1333
Details
Latching type:
keyed alike DIRAK 1333
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9115.00-00000
Snap Profile-cylinder, keyed different (dual entry)
Details
Latching type:
keyed different (dual entry)
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9202.00-00000
insert square 6mm
Details
Insert:
Square 6mm
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9203.00-00000
insert square 7mm
Details
Insert:
Square 7mm
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9204.00-00000
insert square 8mm
Details
Insert:
Square 8mm
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9205.00-00000
insert square 8mm, slotted
Details
Insert:
Square 8mm, slotted
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9206.00-00000
insert triangular 7mm
Details
Insert:
Triangular 7mm
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9207.00-00000
insert triangular 8mm
Details
Insert:
Triangular 8mm
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9208.00-00000
insert double bit 3mm pin
Details
Insert:
Double bit 3mm pin
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9209.00-00000
insert double bit 5mm pin
Details
Insert:
Double bit 5mm pin
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9210.00-00000
insert triangular 6,5mm CNOMO
Details
Insert:
Triangular 6.5mm CNOMO
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9211.00-00000
insert socket hexagon 10mm
Details
Insert:
Socket hex. 10mm
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9212.00-00000
insert slotted 2x4mm
Details
Insert:
Slotted 2x4mm
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9213.00-00000
insert Daimler Benz type
Details
Insert:
Daimler Benz type
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9214.00-00000
insert crown type
Details
Insert:
Crown type
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9215.00-00000
insert square socket 6mm
Details
Insert:
Square socket 6mm
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9216.00-00000
insert square socket 7mm
Details
Insert:
Square socket 7mm
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9217.00-00000
insert square socket 8mm
Details
Insert:
Square socket 8mm
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9218.00-00000
insert slotted recessed coinproof
Details
Insert:
Slotted recessed coinproof
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9219.00-00000
insert half-round czech
Details
Insert:
Half-round czech
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9220.00-00000
insert hexagon Belcore 7/16''
Details
Insert:
Hex. Belcore 7/16"
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9235.00-00000
insert conical square 9mm
Details
Insert:
Conical square 9mm
Closing stroke:
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9203.00-00001
insert square 7mm, 360°
Details
Insert:
Square 7mm
Closing stroke:
360°
Clip-in:
No
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9204.00-00001
insert square 8mm, 360°
Details
Insert:
Square 8mm
Closing stroke:
360°
Clip-in:
No
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9206.00-00001
insert triangle 7mm, 360°
Details
Insert:
Triangular 7mm
Closing stroke:
360°
Clip-in:
No
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9207.00-00001
insert triangle 8mm, 360°
Details
Insert:
Triangular 8mm
Closing stroke:
360°
Clip-in:
No
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9208.00-00001
insert double bit 3mm pin, 360°
Details
Insert:
Double bit 3mm pin
Closing stroke:
360°
Clip-in:
No
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9209.00-00001
insert double bit 5mm pin, 360°
Details
Insert:
Double bit 5mm pin
Closing stroke:
360°
Clip-in:
No
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9212.00-00001
insert slotted 2x4mm, 360°
Details
Insert:
Slotted 2x4mm
Closing stroke:
360°
Clip-in:
No
Delivery Unit:
1 pc.
Open product in new tab
c)
211-8057.00-00000
insert conical square 9mm, 360°
Details
Insert:
Conical square 9mm
Closing stroke:
360°
Clip-in:
No
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9106.00-00000
radial pin tumbler cylinder keyed different
Details
Locking:
Push button
Latching type:
keyed different
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9107.00-00000
radial pin tumbler cylinder keyed alike DIRAK D0205
Details
Locking:
Push button
Latching type:
keyed alike DIRAK D0205
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9244.00-00000
security insert with free rotating 8mm triangular front
Details
Insert:
Security insert with free rotating 8mm triangular front part
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
211-0401.03-00000
Blind plug without spring-loaded ball
Details
Name:
Blind plug without spring-loaded ball
Clip-in:
No
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9201.00-00000
Blind plug with spring-loaded ball
Details
Name:
Blind plug with spring-loaded ball
Clip-in:
Yes
Delivery Unit:
1 pc.
Open product in new tab
c)
7-069
Profile-Cylinder Stainless Steel
Open overview in new tab
c)
211-9226.00-00000
Square 6mm
Details
Insert:
Square 6mm
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9227.00-00000
Square 7mm
Details
Insert:
Square 7mm
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9228.00-00000
Square 8mm
Details
Insert:
Square 8mm
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9229.00-00000
Triangular 7mm
Details
Insert:
Triangular 7mm
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9230.00-00000
Triangular 8mm
Details
Insert:
Triangular 8mm
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9231.00-00000
Double bit 3mm pin
Details
Insert:
Double bit 3mm pin
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9232.00-00000
Profile-Cylinder
Details
Insert:
Double bit 5mm pin
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9233.00-00000
Profile-Cylinder
Details
Insert:
Slotted 2x4mm
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9242.00-00000
Profile-Cylinder
Details
Insert:
Security insert with free rotating 8mm triangular front part
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9238.00-00000
Profile-Cylinder
Details
Insert:
Conical square 9mm
Delivery Unit:
1 pc.
Open product in new tab
d)
7-040
Rod Latch FS PrC Stainless Steel
Open overview in new tab
d)
208-9024.00-00000
Rod latch
Details
Rod fastening:
C-clip
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab

Product Configuration

Selected version

Product number 207-9292.00-00000
Delivery Unit: 1 pc.
Installation type: screw-on
Padlock: -
Cylinder cover: -

Selected additional products

[none]
Contact linkedin YouTube
This website uses cookies to ensure the best experience possible. More information...
