[3-150.03]

Swinghandle FS PrC for Insert

ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_FLACHSTANGE
ICON_CUTOUT_PR_C
ICON_IP65
ICON_DIRAK_GEERDET
2_090_03

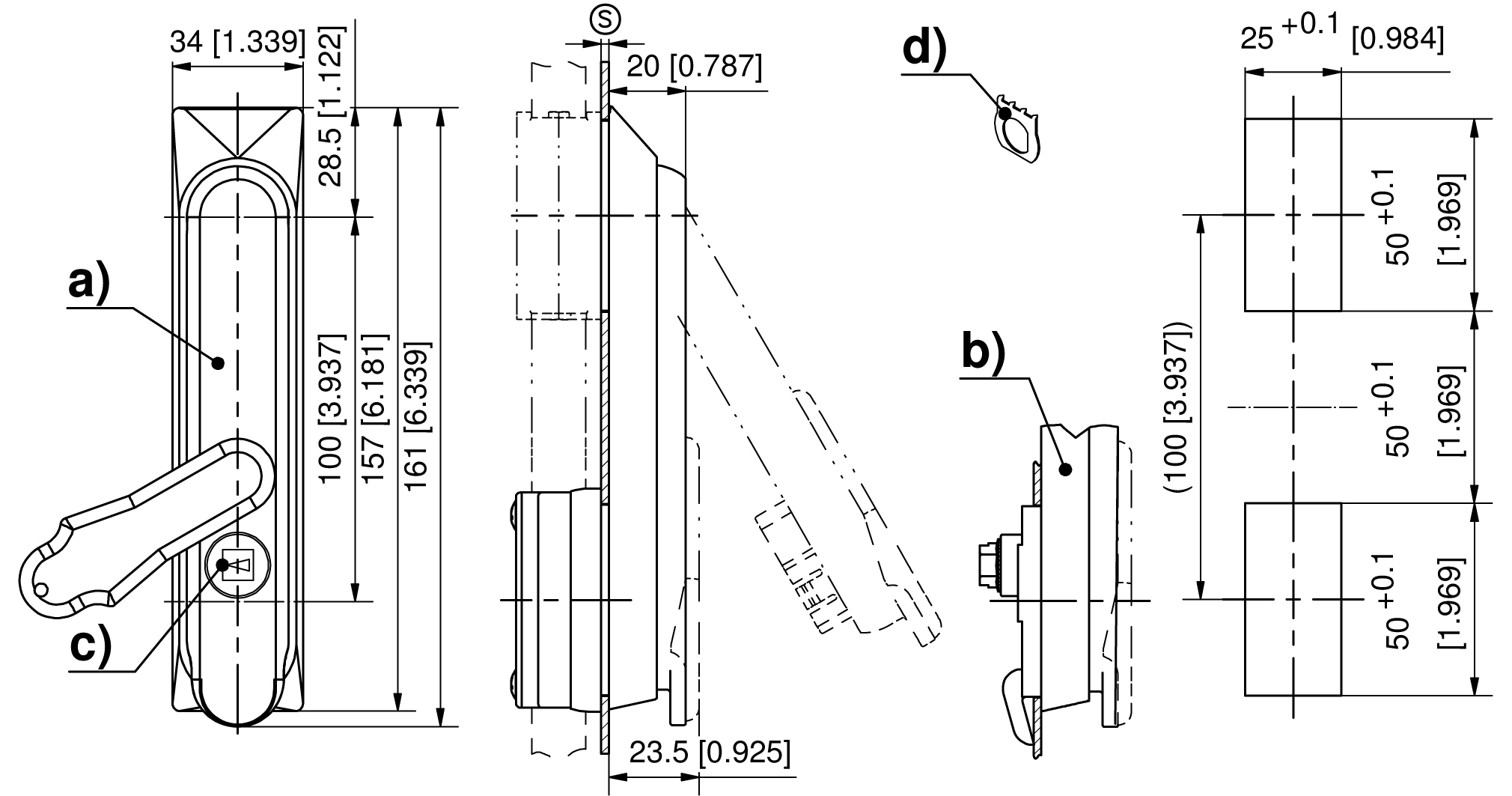

E_3-150_03
2_090_03
E_3-150_03

Advantages

  • The locking cam is included.
  •  Version with cylinder cover is securable with wire padlock.
  • IP65 according to DIN EN 60529 - version dish with cap.
  • Dish with hook version is secured outside the sealed area.
  • RH / LH application.
  • Grounding by grounding clip (optional).

Material

  • Swinghandle: zinc die, chrome plated or black or PA, black
  • Dish: PA, black

Remarks

(S) Door-thickness 1.5 - 2.5mm

The swinghandles can be retrofitted with sliding cap product system 2-091.

Inserts and their assembly must be ordered separately.

Selected version

Product number 107-9250.00-00000
Delivery Unit: 1 pc.
Installation type: screw-on
Surface handle: black
Dish : with hook
Handle material: zinc die
CAD model
Remove selection Product data sheet

Related Products

Function extension



Article no.
Name

d
3-011
Grounding Clip Stainless Steel
Open overview in new tab
d
208-1206.93-00000
Grounding Clip Stainless Steel
Details
Delivery Unit:
1 pc.
Open product in new tab

Assembly options



Article no.
Name

207-0016.00-00000
Assembling of inserts / profile-cylinder
Details
Name:
Assembling of inserts / profile-cylinder
Delivery Unit:
1 pc.
Open product in new tab

Accessories



Article no.
Name

c)
2-141
Inserts, zinc die chrome plated
Open overview in new tab
c)
211-9501.00-00000
Square 6mm
Details
Insert:
Square 6mm
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9502.00-00000
Square 7mm
Details
Insert:
Square 7mm
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9503.00-00000
Square 8mm
Details
Insert:
Square 8mm
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9504.00-00000
Square 8mm, slotted
Details
Insert:
Square 8mm, slotted
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9505.00-00000
Triangular 6,5mm, CNOMO
Details
Insert:
Triangular 6.5mm CNOMO
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9506.00-00000
Triangular 7mm
Details
Insert:
Triangular 7mm
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9507.00-00000
Triangular 8mm
Details
Insert:
Triangular 8mm
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9508.00-00000
Triangular 9mm EDF
Details
Insert:
Triangular 9mm EDF
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9509.00-00000
Double bit 3mm pin
Details
Insert:
Double bit 3mm pin
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9510.00-00000
Double bit 5mm pin
Details
Insert:
Double bit 5mm pin
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9511.00-00000
Socket hex. 6mm
Details
Insert:
Socket hex. 6mm
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9512.00-00000
Socket hex. 10mm
Details
Insert:
Socket hex. 10mm
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9513.00-00000
Daimler Benz type
Details
Insert:
Daimler Benz type
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9514.00-00000
Slotted 2x4mm
Details
Insert:
Slotted 2x4mm
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9515.00-00000
Slotted recessed coinproof
Details
Insert:
Slotted recessed coinproof
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9516.00-00000
Crown type
Details
Insert:
Crown type
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9517.00-00000
Square socket 6mm
Details
Insert:
Square socket 6mm
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9518.00-00000
Square socket 7mm
Details
Insert:
Square socket 7mm
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9519.00-00000
Square socket 8mm
Details
Insert:
Square socket 8mm
Delivery Unit:
1 pc.
Open product in new tab
c)
211-9520.00-00000
Half-round czech
Details
Insert:
Half-round czech
Delivery Unit:
1 pc.
Open product in new tab
3-130
Rod Latch FS PrC
Open overview in new tab
208-9002.00-00000
Rod latch zinc die, c-clip
Details
Material:
zinc die
Rod fastening:
C-clip
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
208-9052.00-00000
Rod latch PA, c-clip
Details
Material:
PA
Rod fastening:
C-clip
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
208-9003.00-00000
Rod latch zinc die, quick-fit
Details
Material:
zinc die
Rod fastening:
quick-fit
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
208-9053.00-00000
Rod latch PA, quick-fit
Details
Material:
PA
Rod fastening:
quick-fit
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
3-132.02
Rod Latch RS PrC
Open overview in new tab
208-9015.00-00000
Rod latch
Details
Rod fastening:
C-clip
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
3-165
Rod Latch FS PrC and Angle Pieces with Rollers
Open overview in new tab
208-9715.00-Lxxmm
Rod latch for right-angle terminal
Details
Version:
for inserts and swinghandles
Stroke:
24 mm
Installation type:
screw-on
Delivery Unit:
on request
Open product in new tab
208-9902.00-00020
Right-angle terminal A20
Details
Name:
Right-angle terminal A20
Delivery Unit:
1 pc.
Open product in new tab
208-9902.00-00026
Right-angle terminal A26
Details
Name:
Right-angle terminal A26
Delivery Unit:
1 pc.
Open product in new tab
3-170
Rod Latch for Multi-Point Locking FS PrC
Open overview in new tab
208-9101.00-00000
Rod latch, 1-part
Details
Name:
Rod latch, 1-part
Door height Th:
800 mm - 1200 mm
Locking points:
2
Dual rollers A:
300
Dual rollers B:
-
Total dimension extended:
750
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
208-9102.00-00000
Rod latch, 1-part
Details
Name:
Rod latch, 1-part
Door height Th:
1200 mm - 1600 mm
Locking points:
2
Dual rollers A:
450
Dual rollers B:
-
Total dimension extended:
1050
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
208-9107.00-00000
Rod latch, 3-parts
Details
Name:
Rod latch, 3-parts
Door height Th:
1600 mm - 1900 mm
Locking points:
4
Dual rollers A:
275
Dual rollers B:
700
Total dimension extended:
1550
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
208-9108.00-00000
Rod latch, 3-parts
Details
Name:
Rod latch, 3-parts
Door height Th:
1900 mm - 2200 mm
Locking points:
4
Dual rollers A:
275
Dual rollers B:
850
Total dimension extended:
1850
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab

Product Configuration

Selected version

Product number 107-9250.00-00000
Delivery Unit: 1 pc.
Installation type: screw-on
Surface handle: black
Dish : with hook
Handle material: zinc die
