[MLR3000/MLR3000KP]

E-LINE Swinghandle mechatronic RS/FS PrC

ICON_ROHS
ICON_RUNDSTANGE
ICON_FLACHSTANGE
ICON_IP40_SCHWARZ
ICON_MECHATRONICS_SCHWARZ

Advantages

  • Opening readiness can be activated via RFID card, PIN code, Administration Suite software.
  • Status display via LED for handle and temperature status.
  • Controlled access, seamlessly documented.
  • Illuminated info field with configurable backlighting.
  • Keypad for two-factor authentication.
  • RS485.
  • IP40 according to DIN EN 60259.
  • 2000 memory locations for authorized RFID cards / PINs.
  • Complete control via Administration Suite software with many other functions.
  • Emergency opening possible with battery back.



Material

  • Handle: zinc die
  • Dish: ABS, black
  • Control box: PA, black

Remarks

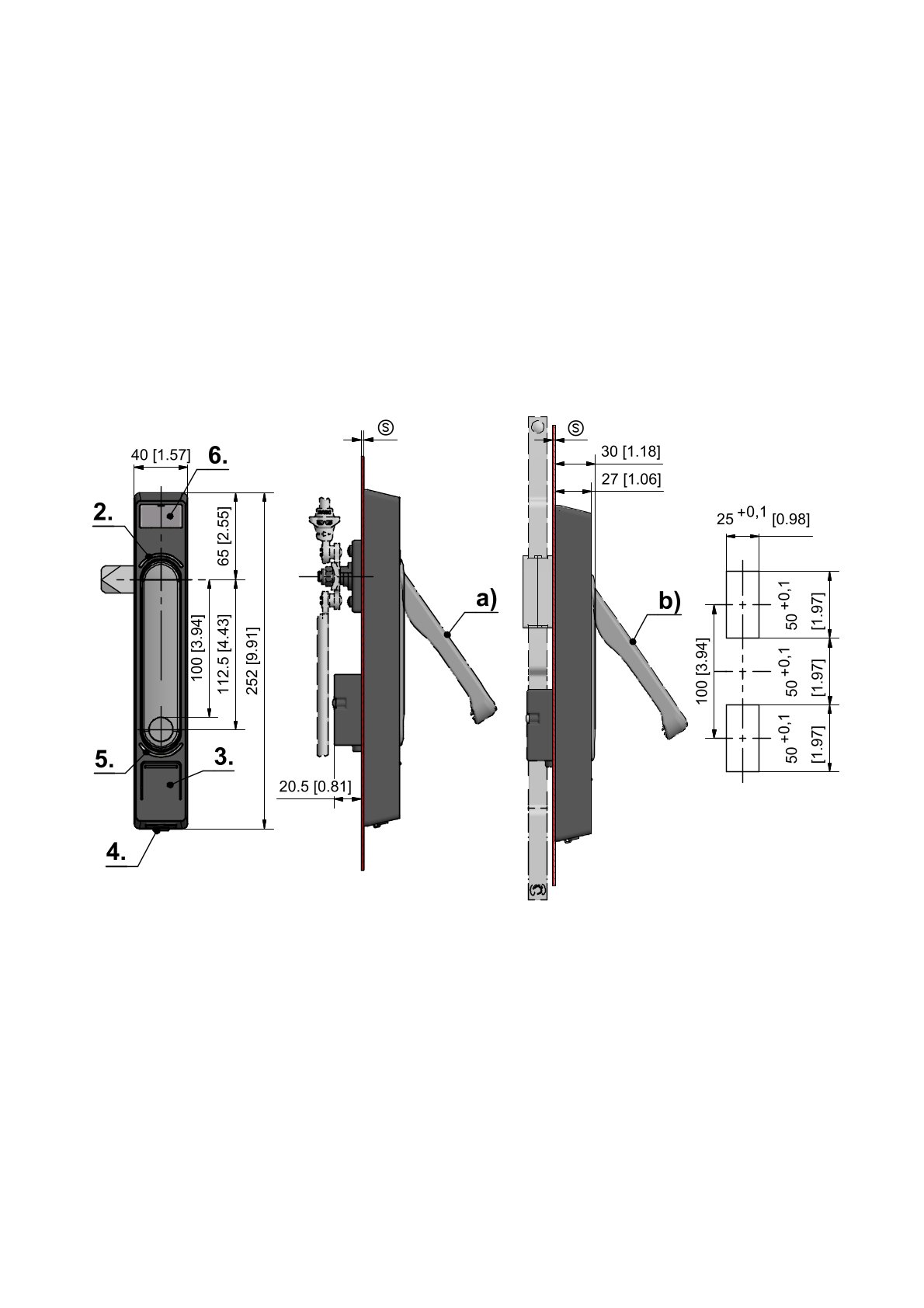

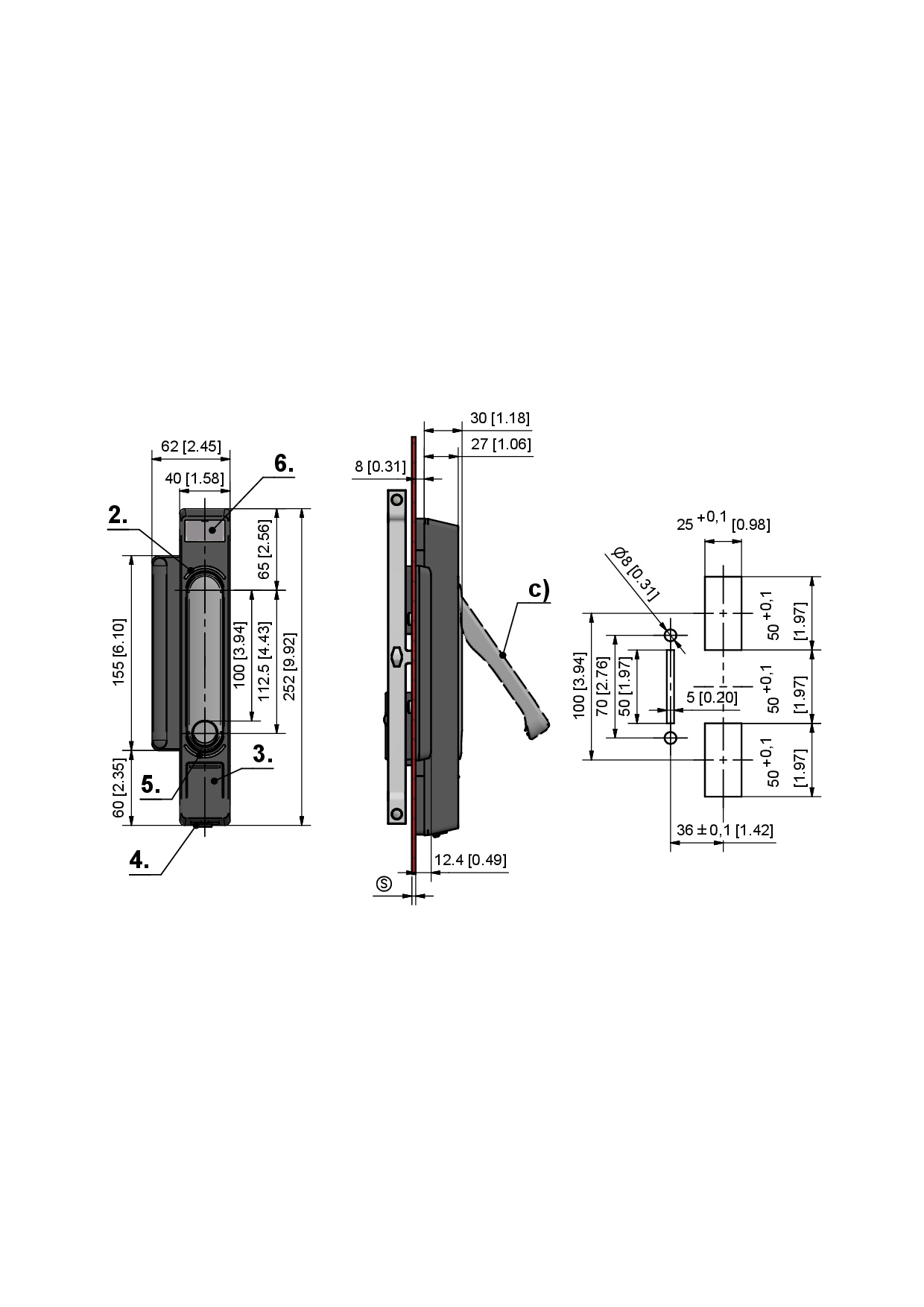

(S) door-thickness 1.5 - 2mm

1. keypad
2. LED handle status
3. button
4. emergency power supply interface
5. LED temperature status
6. info field

Please contact us regardring the necessary accessory components for your project.

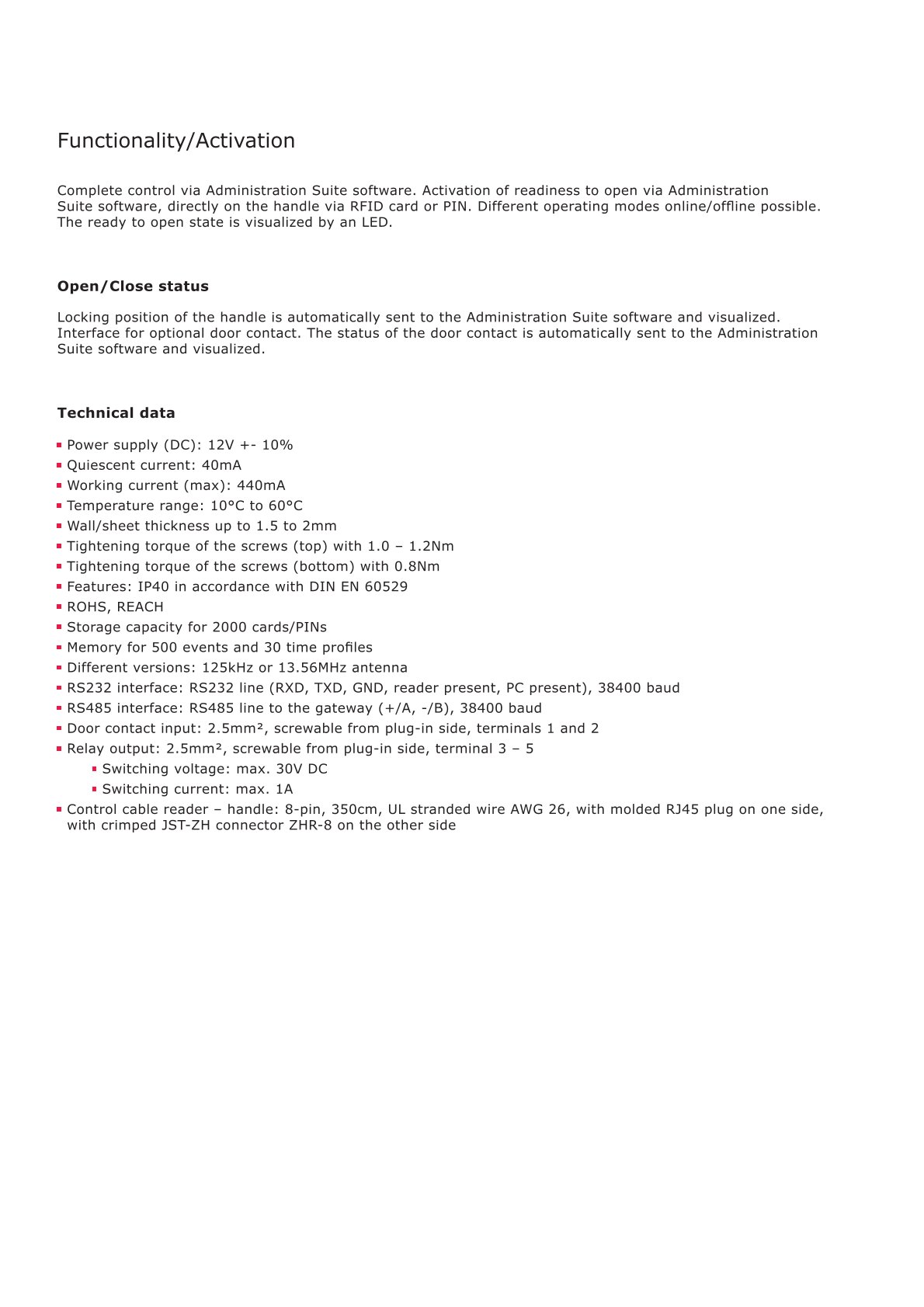

Further technical details please see data sheet.

Please select version Product data sheet
