[MLR2500/MLR2500KP]

E-LINE Swinghandle mechatronic RS/FS PrC

ICON_ROHS
ICON_RUNDSTANGE
ICON_FLACHSTANGE
ICON_IP40_SCHWARZ
ICON_MECHATRONICS_SCHWARZ

Advantages

  • Opening readiness can be activated via RFID card, PIN code, management system.
  • Status display via LED directly for handle.
  • Wiegand interface.
  • Illuminated info field with configurable backlighting.
  • Keypad for two-factor authentication.
  • IP40 according to DIN EN 60529.
  • 125 kHz and 13.56 MHz hybrid antenna.
  • Emergency opening with e.g. laptop possible.

Material

Handle: zinc die
Dish: ABS, black
Control box: PA, black

Remarks

(S) door-thickness 1.5 - 2 mm

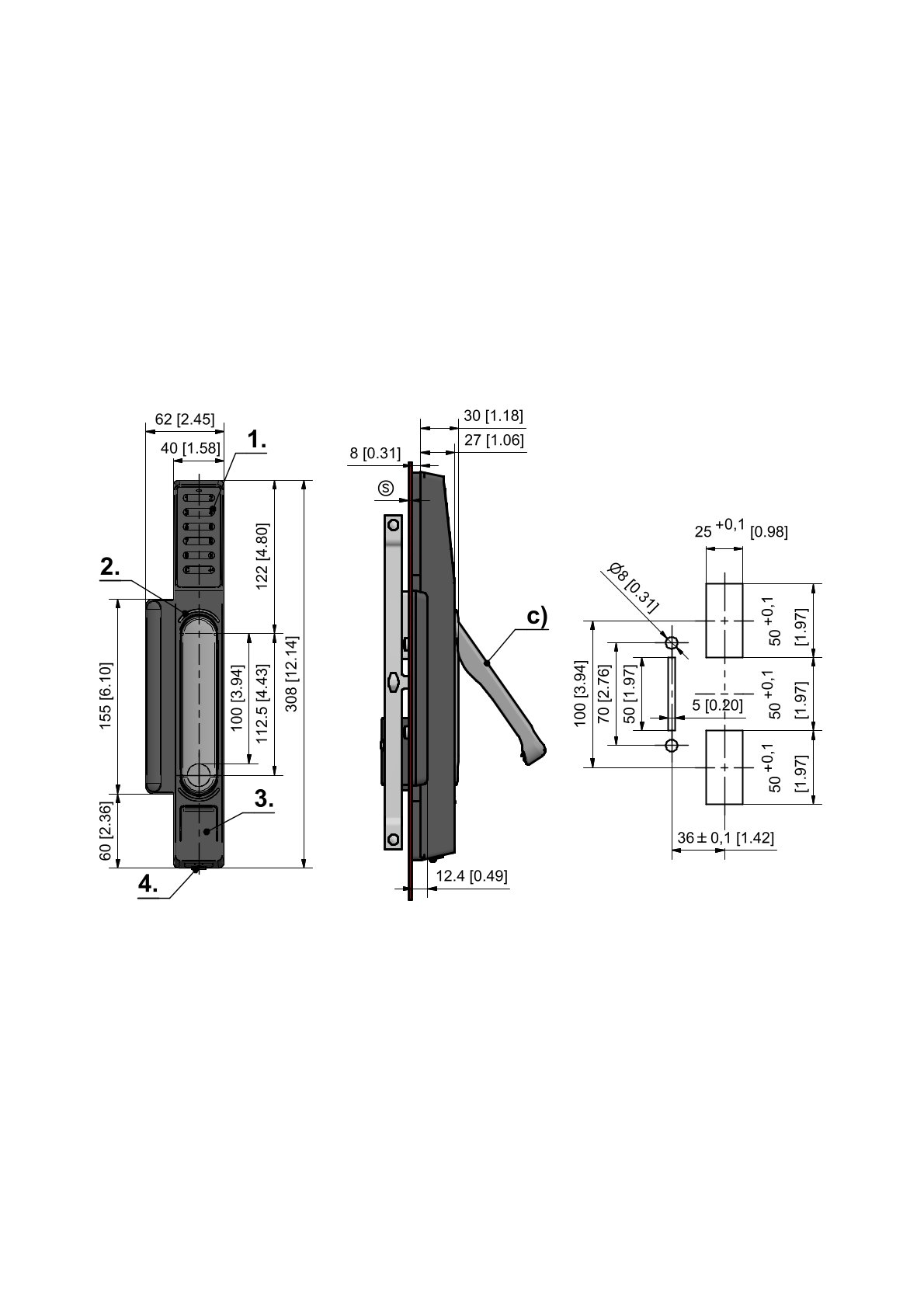

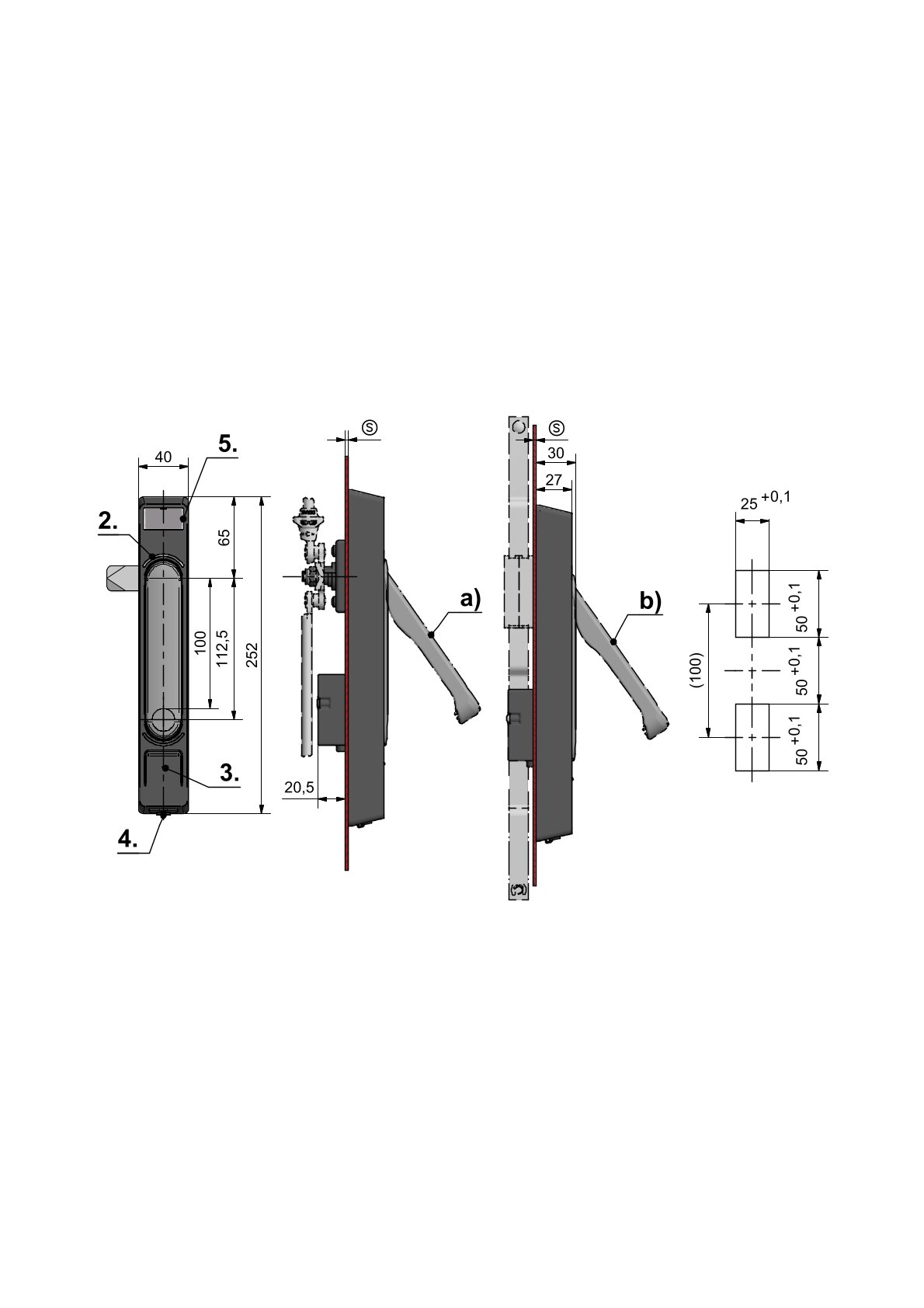

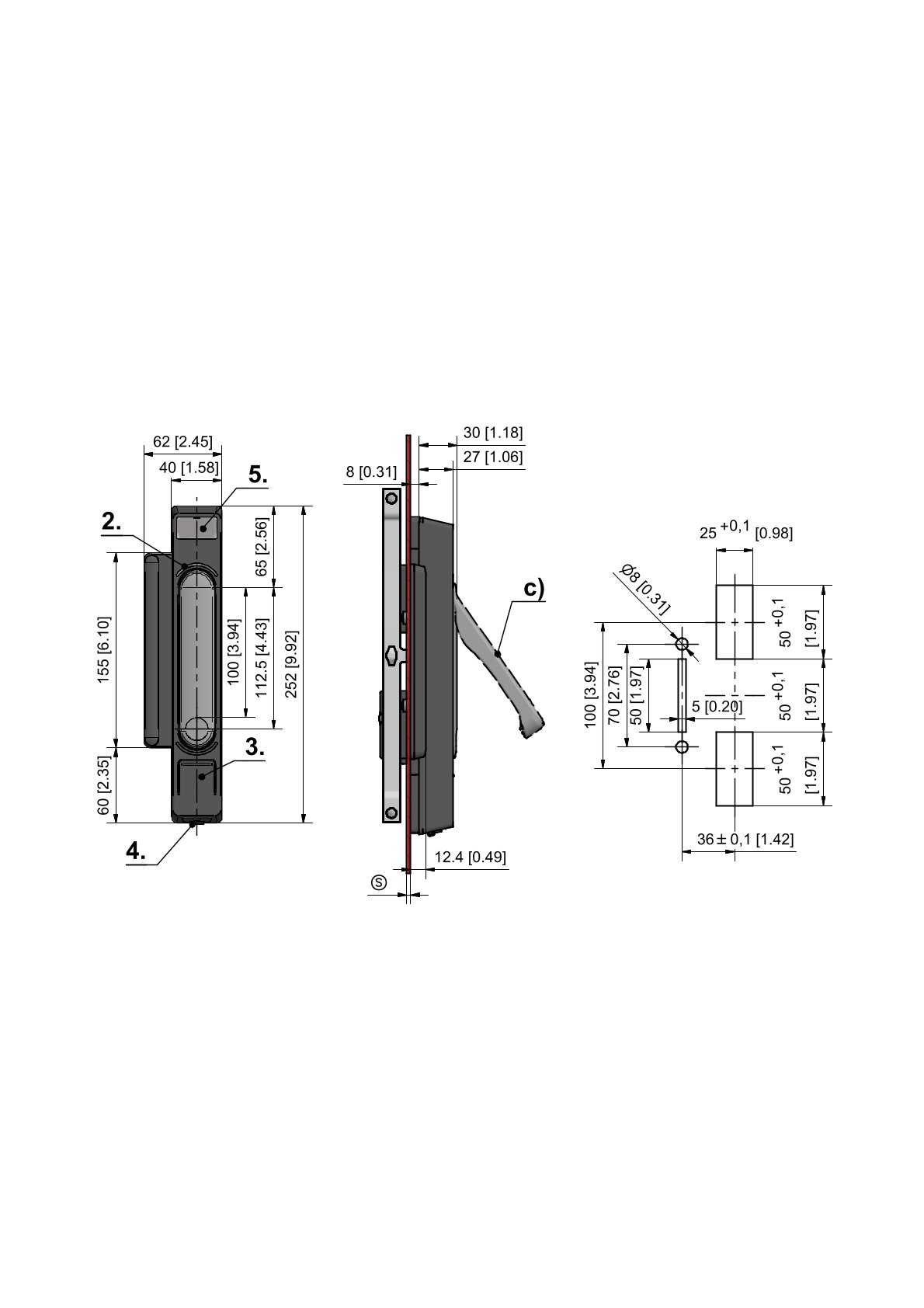

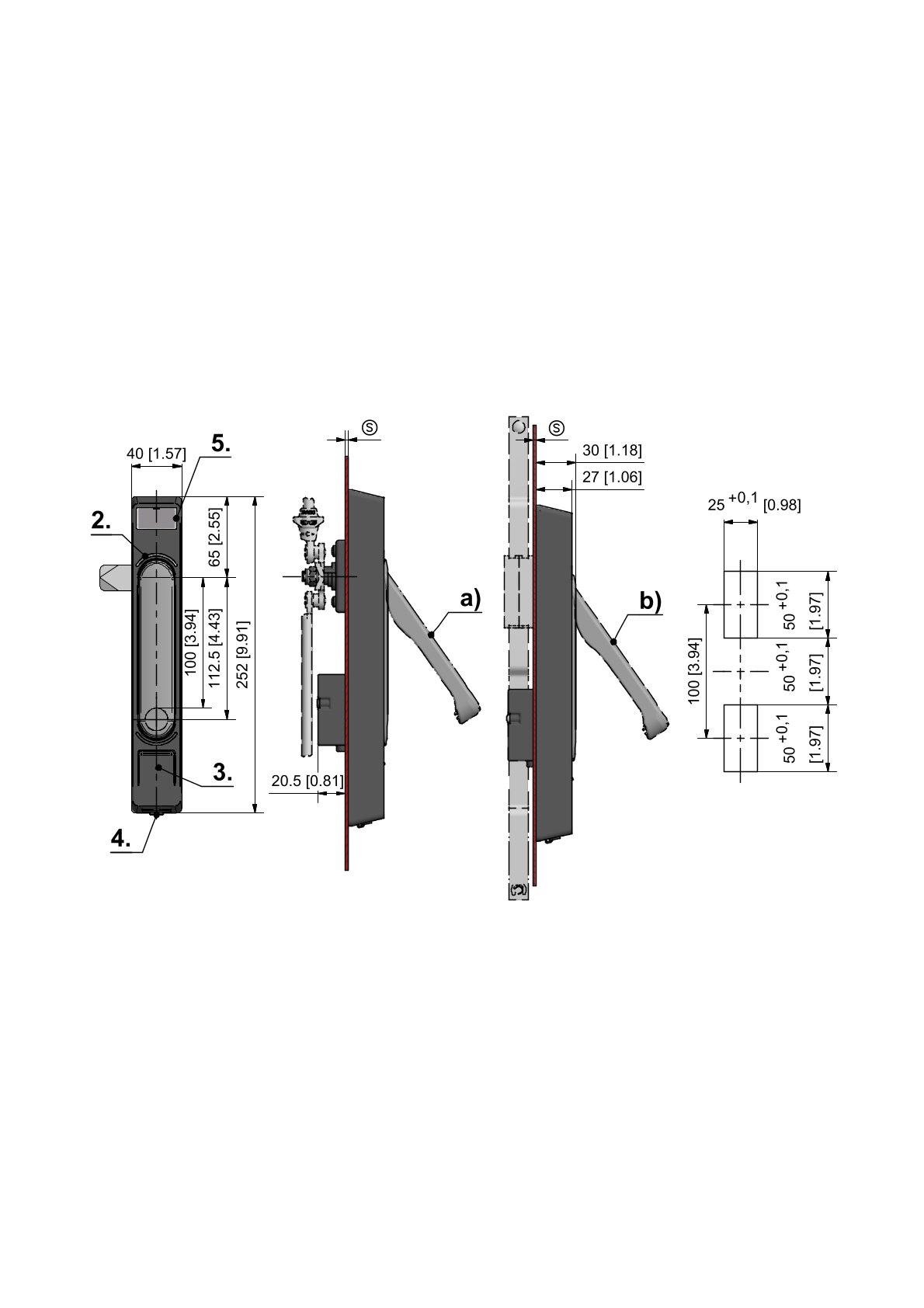

1. keypad
2. LED handle status
3. button
4. emergency power supply interface
5. info field

Please contact us regarding the necessary accessory components for your project.

The Device Configuration Tool is available under DOWNLOADS.

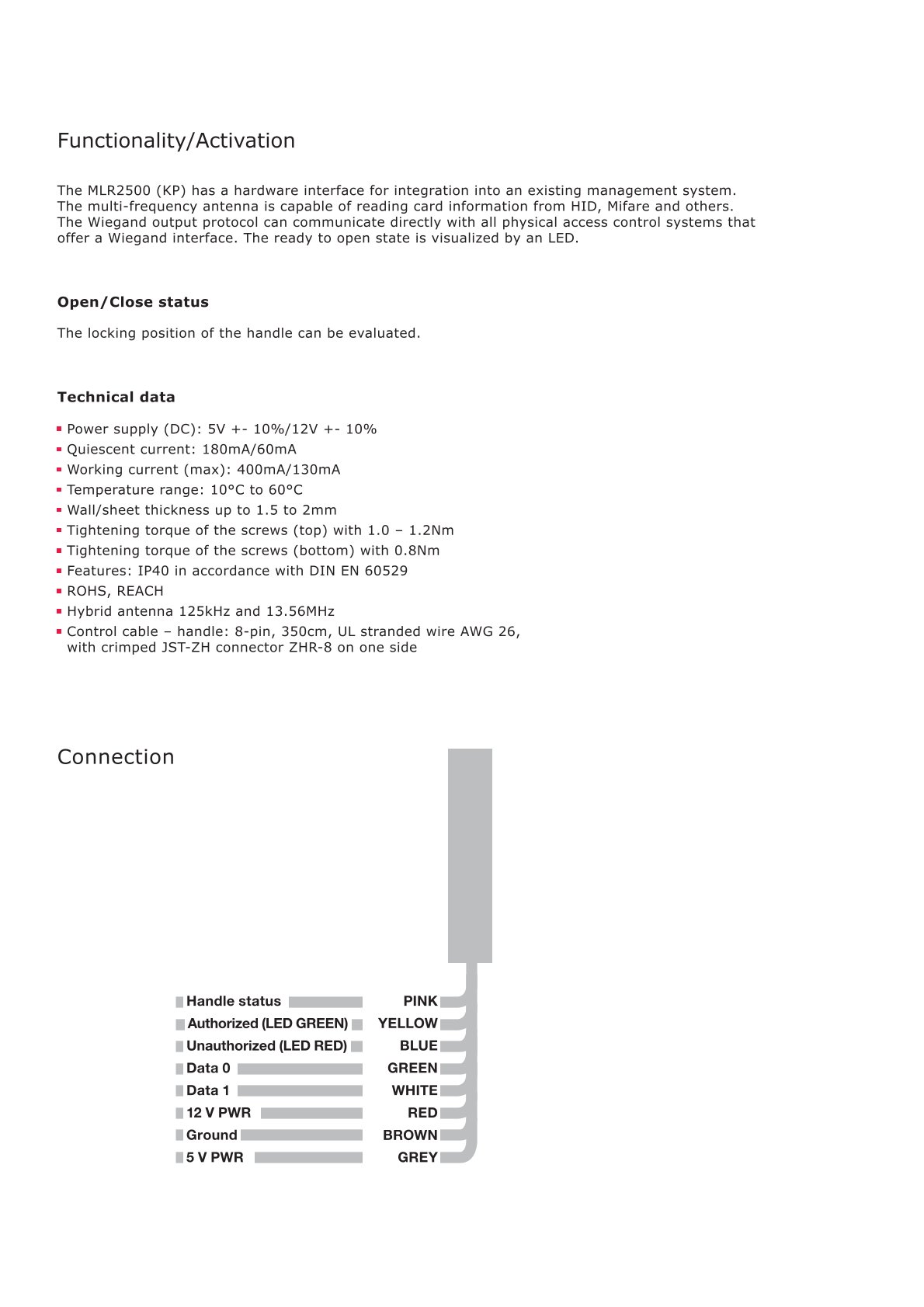

Further technical details please see data sheet.
