[MLR1000]

E-LINE Swinghandle mechatronic RS/FS PrC

ICON_ROHS
ICON_IP40_SCHWARZ
ICON_MECHATRONICS_SCHWARZ
ICON_RUNDSTANGE
ICON_FLACHSTANGE
MLR1000
MLR1000

Advantages

  • Opening readiness can be activated via potential-free contact or by direct voltage supply.
  • Handle status can be evaluated.

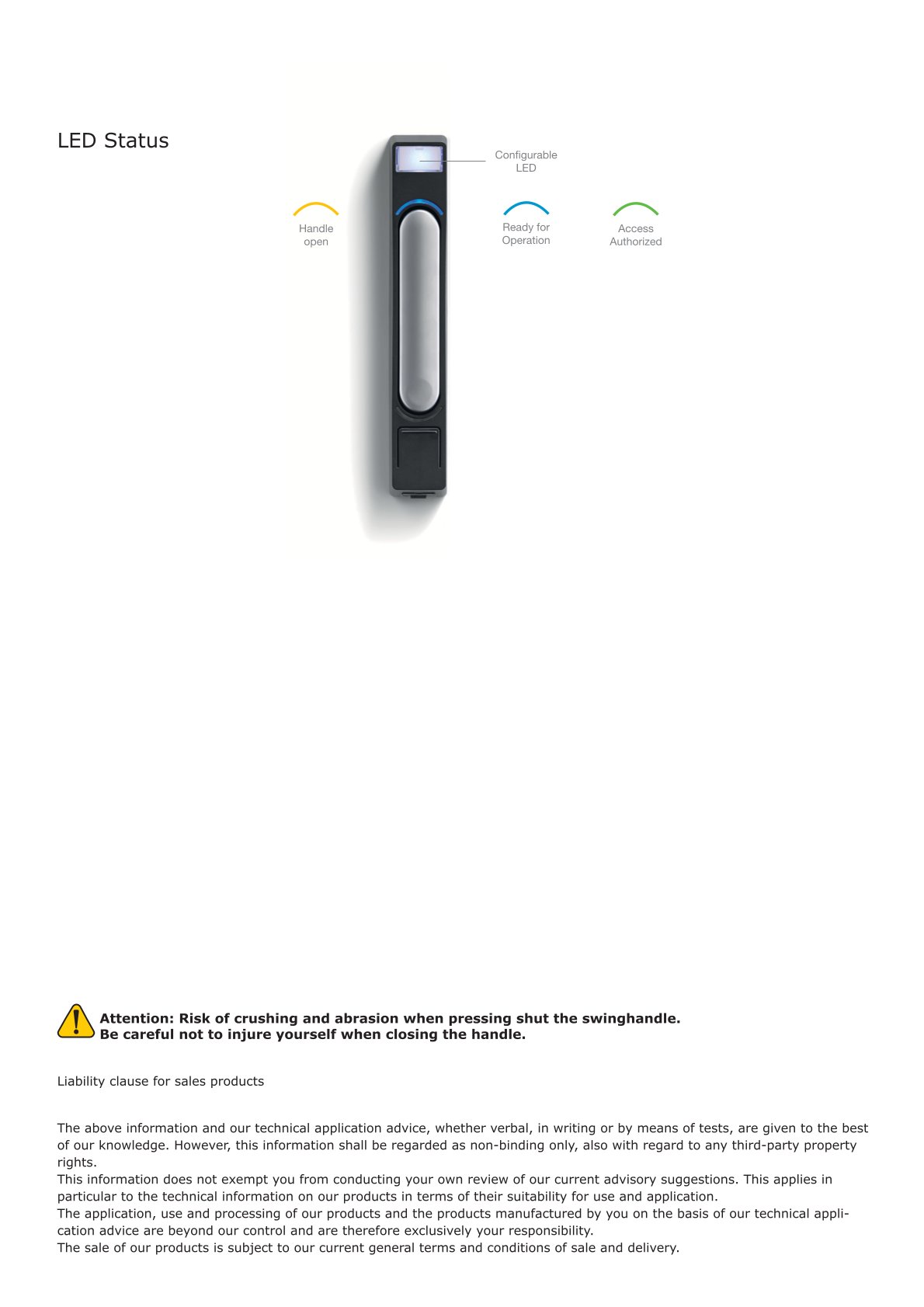

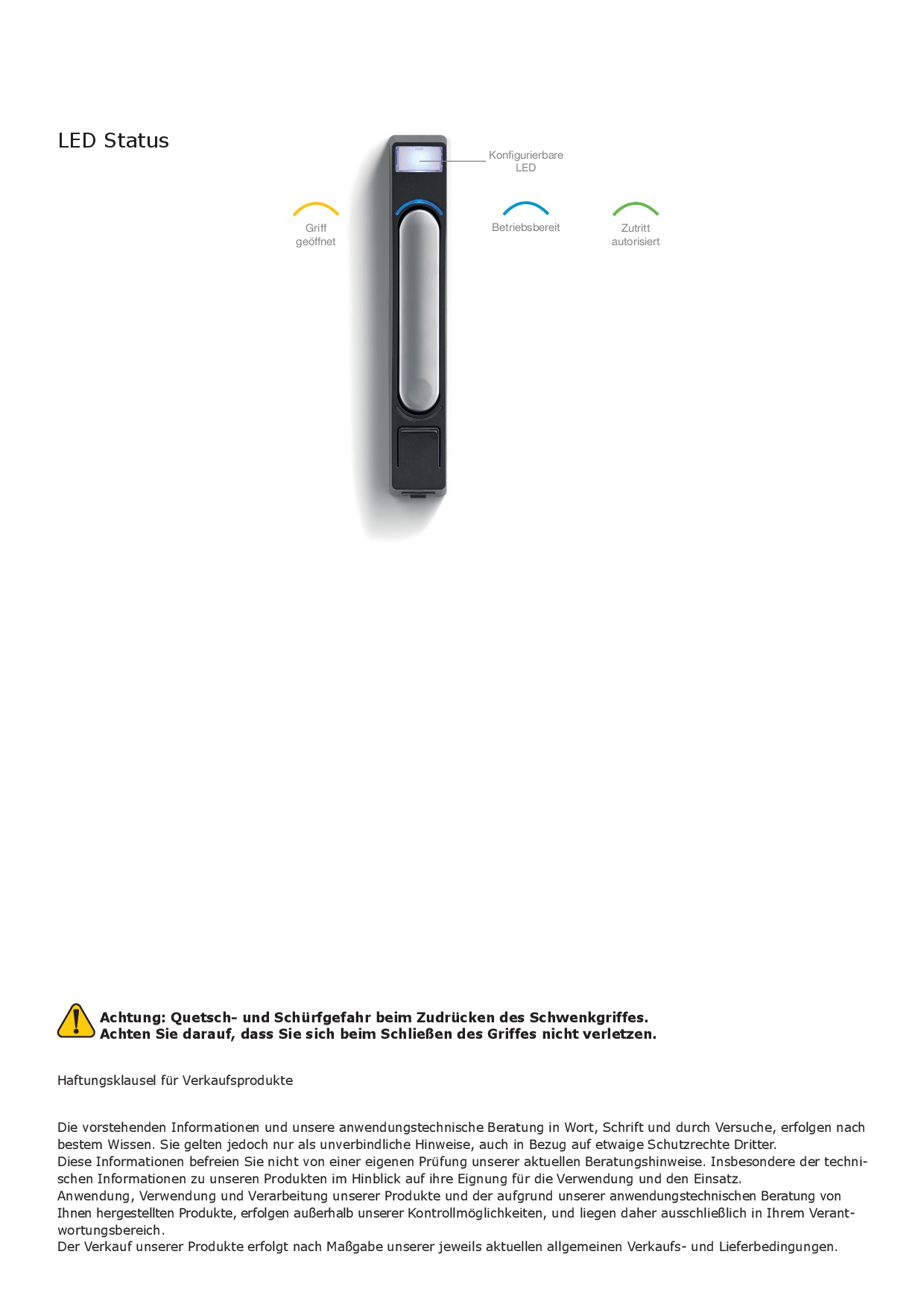

  • Status display via LED directly on the handle.
  • Illuminated information field - color configurable.
  • IP40 according to DIN EN 60529.
  • Emergency opening possible with battery pack. (3.)

Material

Handle: zinc die
Dish: ABS, black
Check box: PA, black

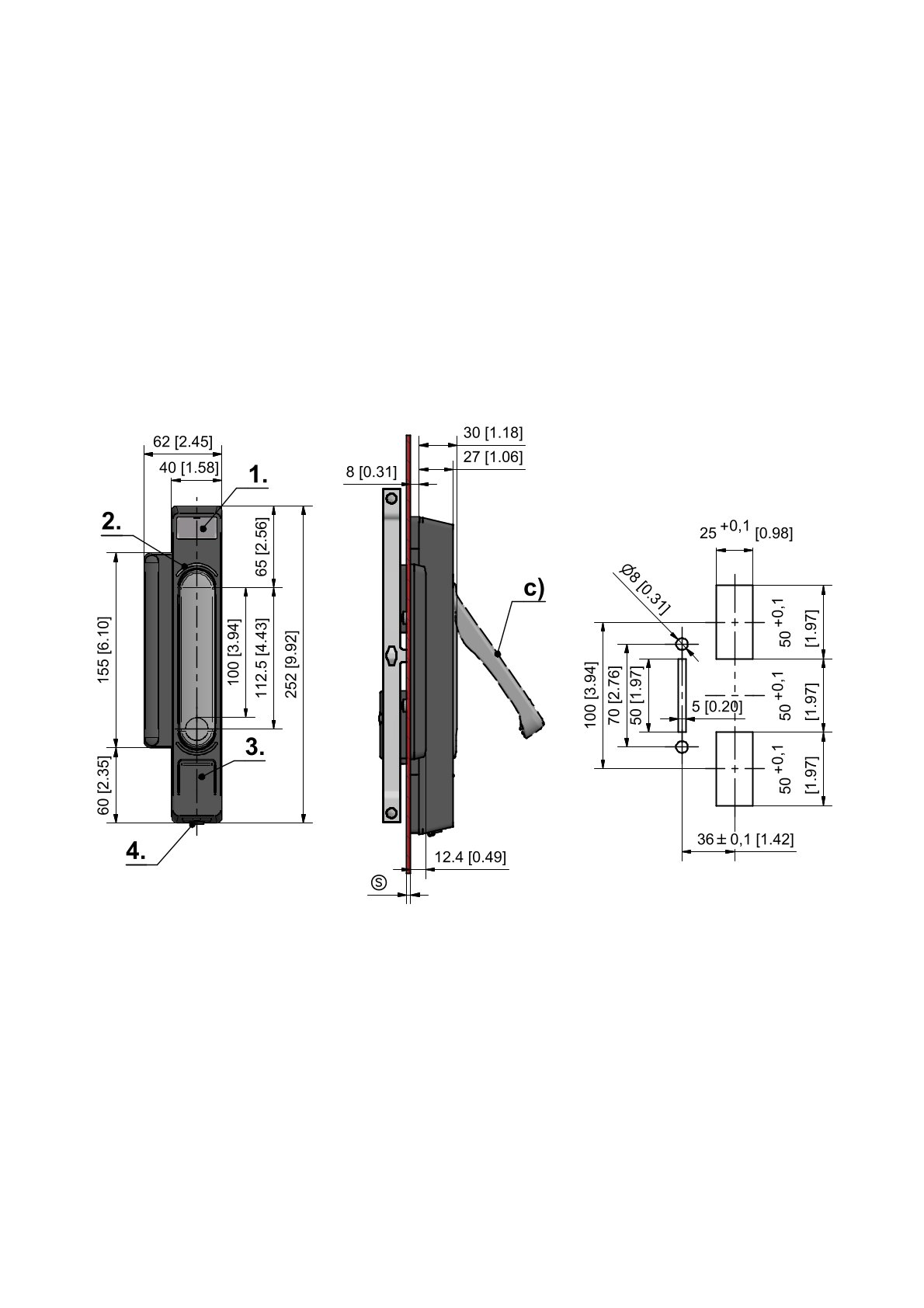

Remarks

(S) Door-thickness 1.5 - 2mm

1. info field
2. LED
3. button

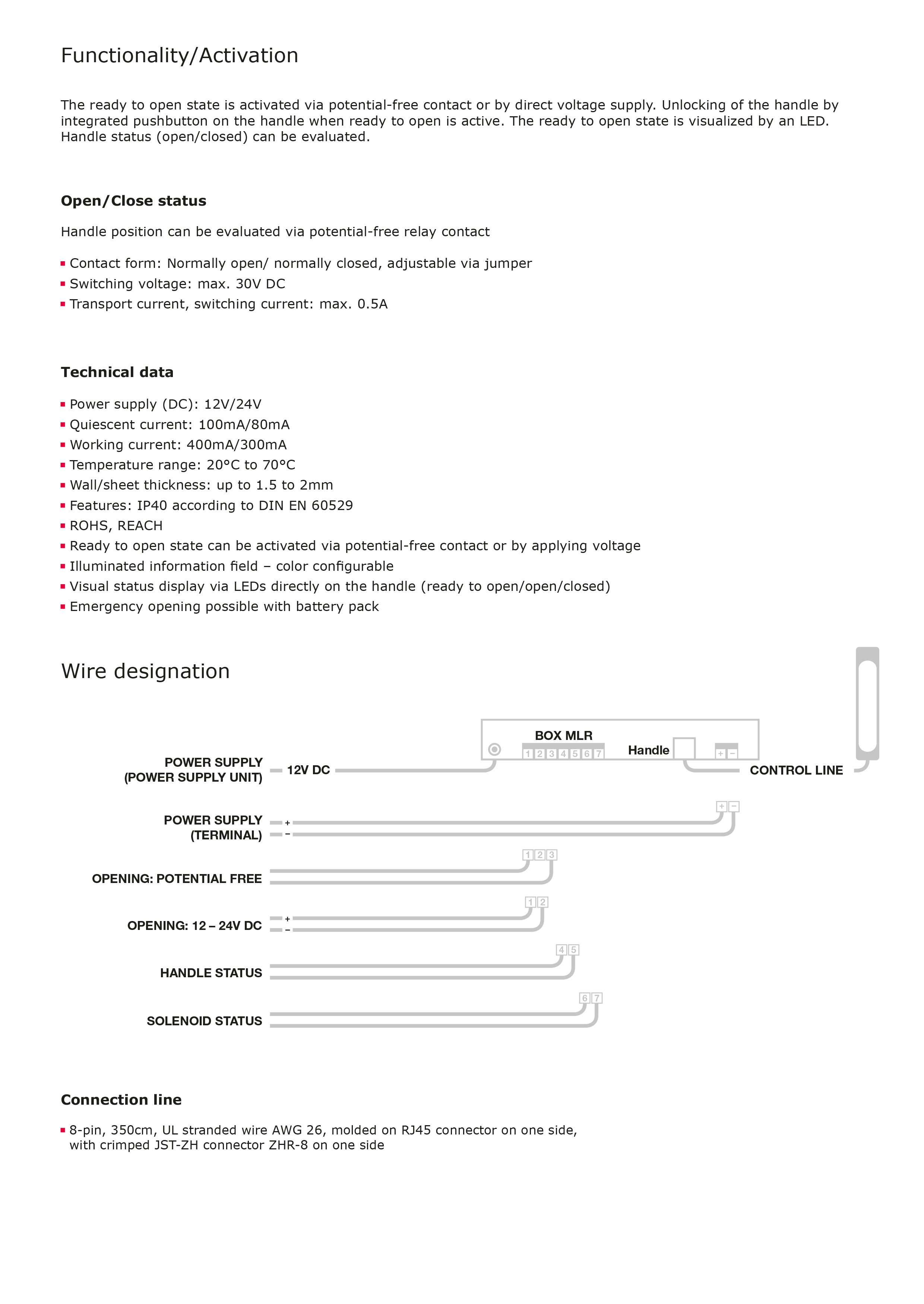

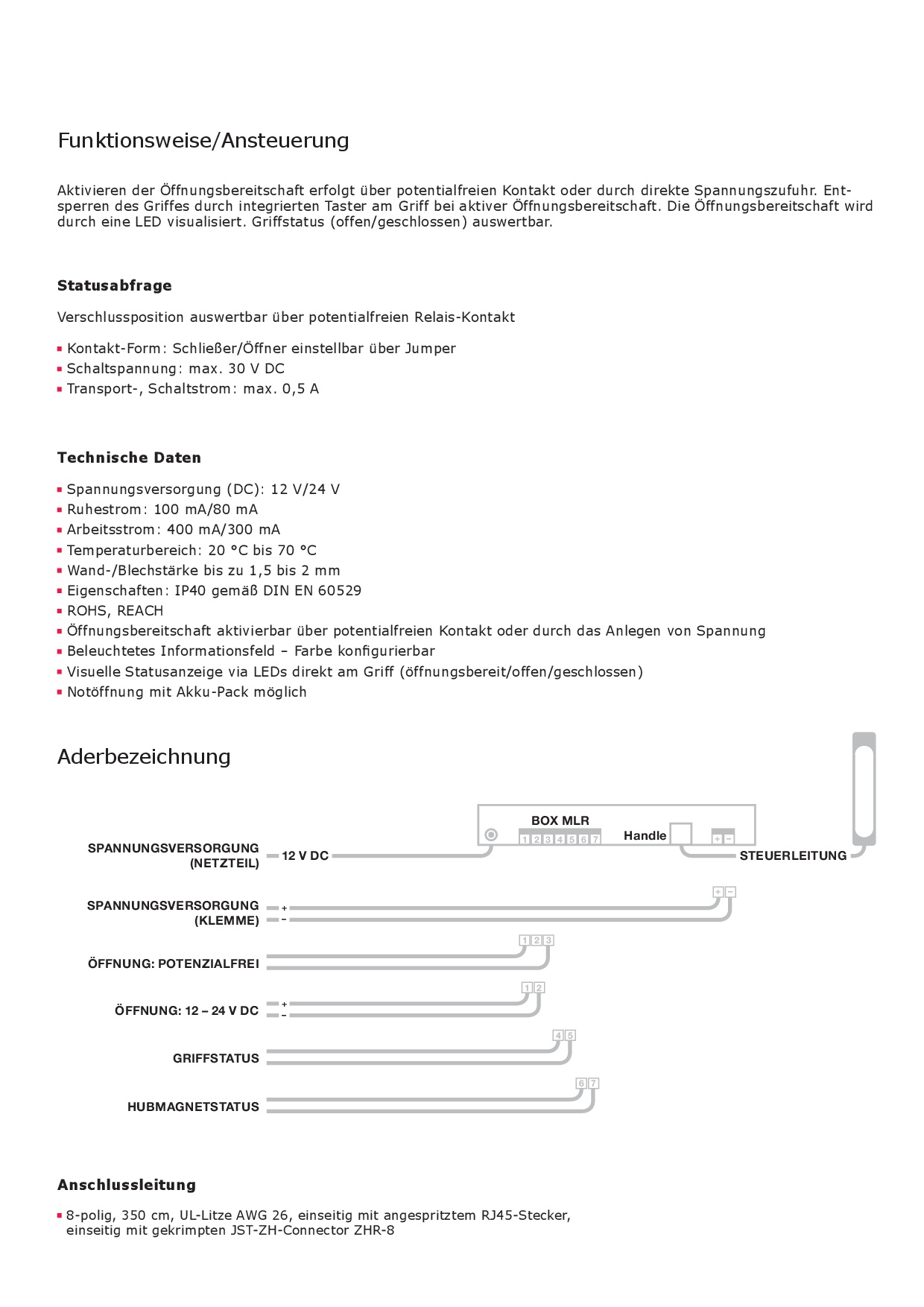

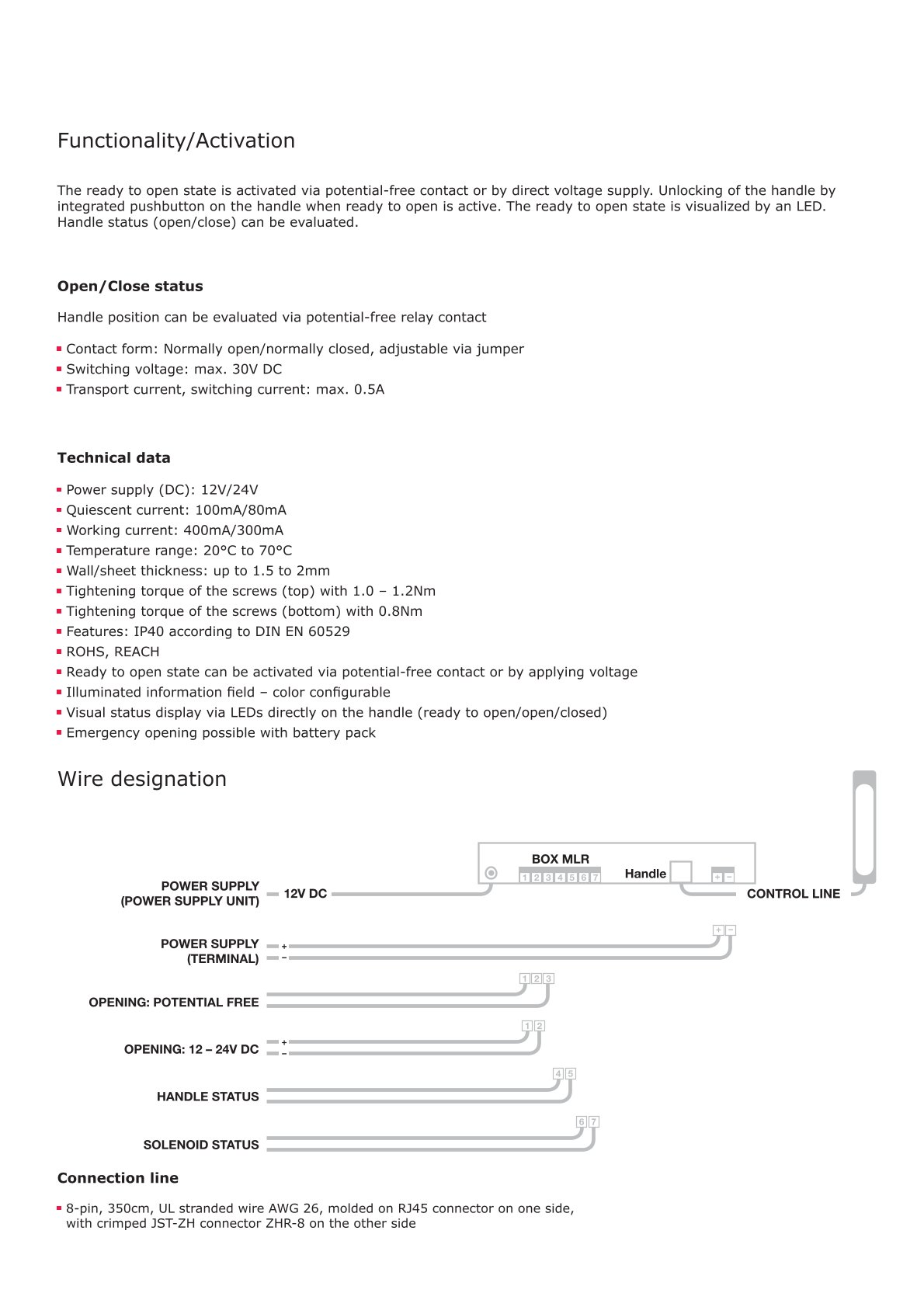

Further technical details please see data sheet
Please select version Product data sheet

Available versions

Swinghandle MLR1000


Product number
Application
Installation type
Delivery Unit
a)
610-9539.07-07101
3-point cam
screw-on
1 pc.
b)
610-9501.07-07101
Rod latch
screw-on
1 pc.
c)
610-9507.07-07101
Offset
screw-on
1 pc.
