[7-320.02]

Over Center Toggle Latch Stainless Steel

ICON_ROHS
ICON_DIN_61373
ICON_EDELSTAHL
ICON_DIN_EN_45545_3_E60_SCHWARZ

Advantages

  • Flat design.
  • Secure tightening and locking of two components.
  • Clamping takes place via the dead center override.
  • Vibration-proof according to DIN EN 61373.
  • Fire protection tested with E60 classification according to DIN EN 45545-3.

Material

  • Over center toggle latch: AISI 316L

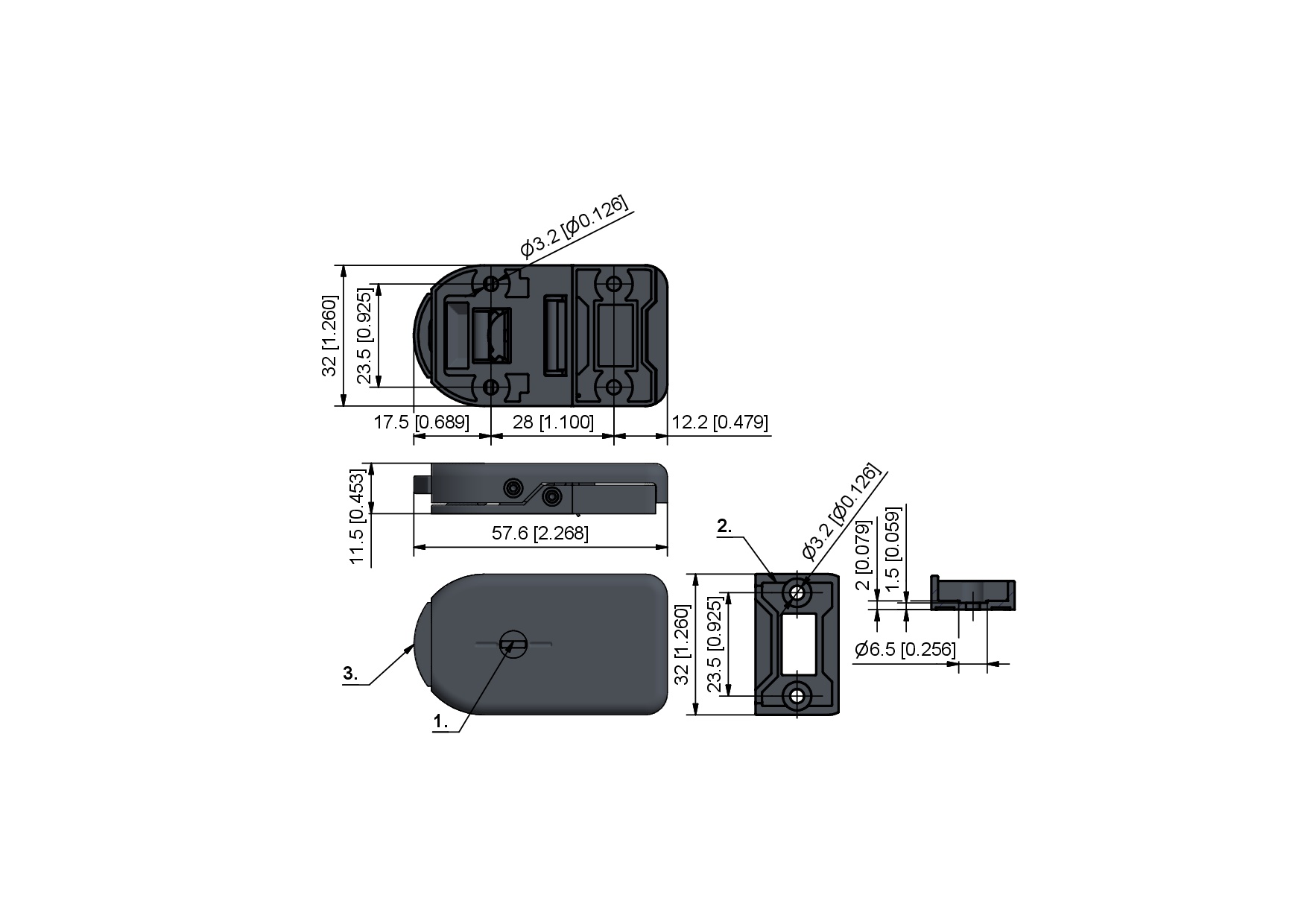

Remarks

1. locking
2. catch hook
3. release push putton

Please select version Product data sheet

Available versions

Over Center Toogle Latch

Product number
Dimension
Delivery Unit
259-9104.00-00000
57 x 32 x 12
1 pc.
