[7-073.02]

L-Handle 3/8" for Padlock Stainless Steel

Advantages

RH / LH application.
IP65 according to DIN EN 60529.
Big padlock eye Ø11mm.
Version a) with fastening plate and additional fastening holes for screws Ø5mm.
Version b) with fastening plate without fastening holes.

Material

Handle, fastening plate, square threaded rod and padlock eye: AISI 316
Flat external seal: EPDM
Washer: Teflon

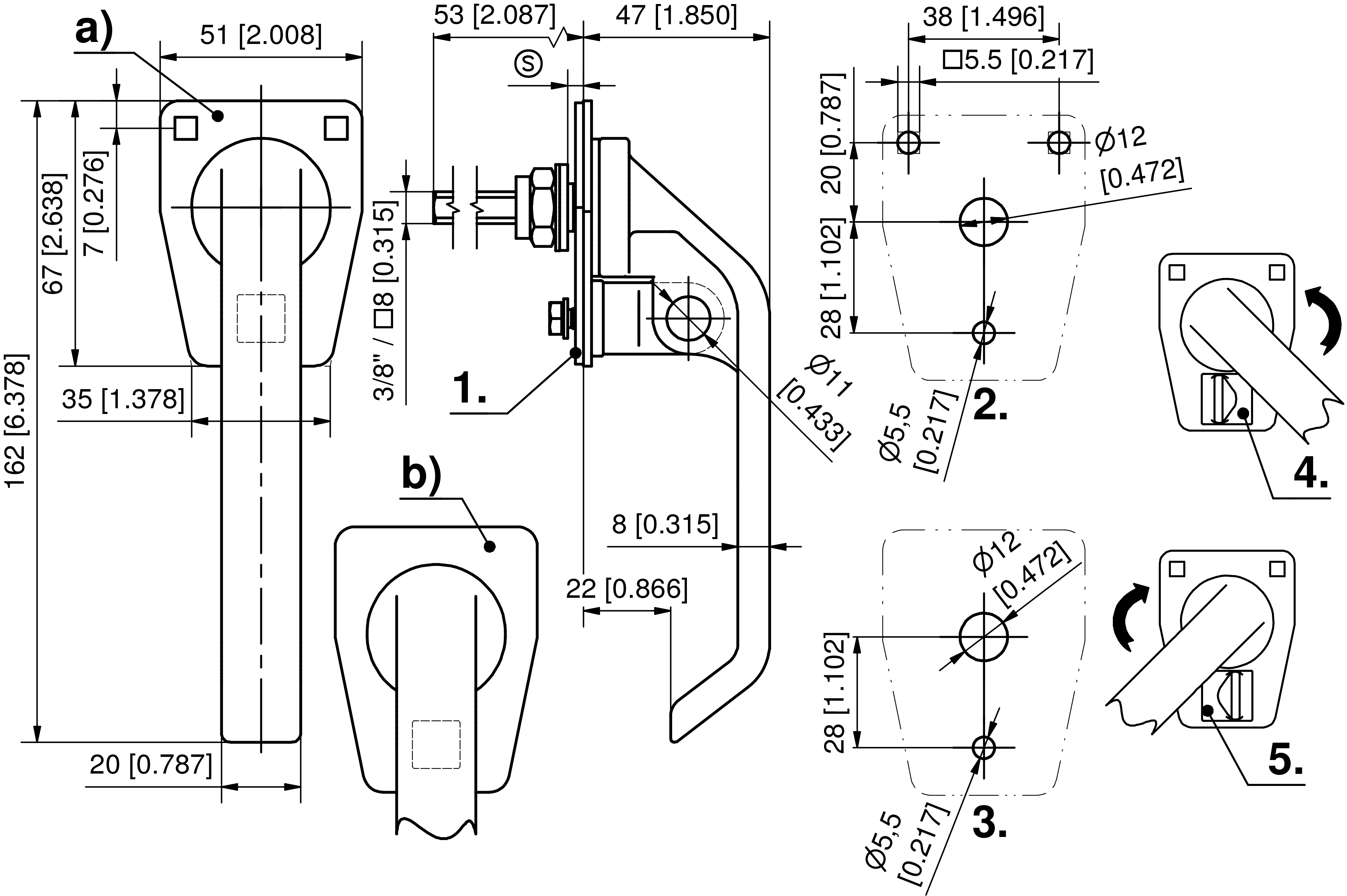

Remarks

(S) Door-thickness max. 5mm with the supplied screw M5x10

1. flat external seal
2. cutout version a)
3. cutout version b)
4. and 5. the padlock eye is asymmetrical. It serves as a stop for RH (4.) / LH (5.) applications.

Delivery time on request!
