Compression Latch PHZ with Lock Cover

Advantages

Ergonomically designed lock cover.
Magnet supported cylinder flap. (5.)

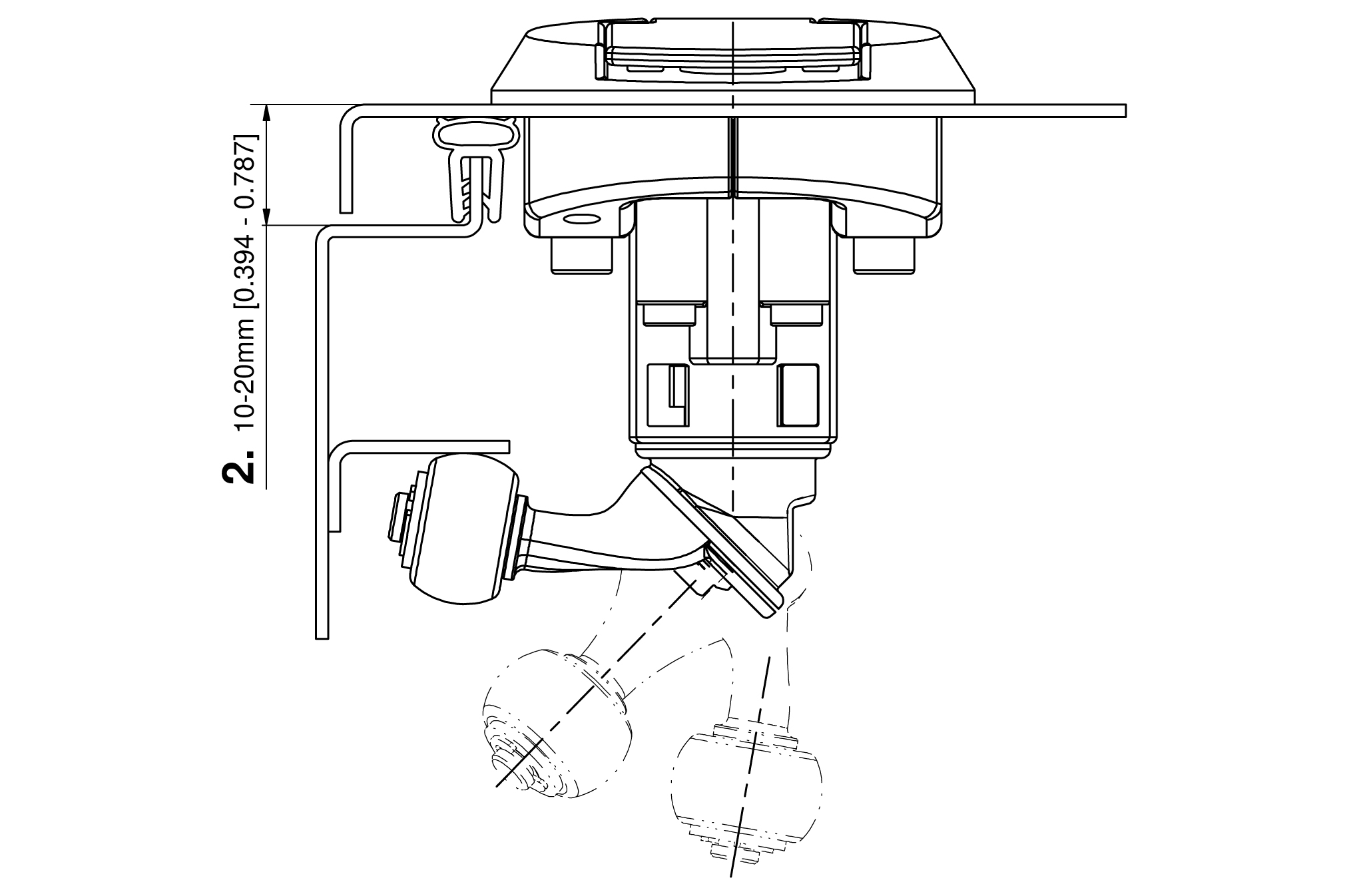

Compression 10 - 20mm. (2.)
The key inserted into the profile-cylinder opens and closes the lock according to DIN 18252.
Closing- and opening operation 180°.
The key is removable only in the locked position.
Grounding with set screw DIN 914 (incl.). (6.)
Seismic-proof according to GR-63-CORE, Issue 4.
IP65 according to DIN EN 60529. (3.)
1300N of force at the latching point.

Material

Housing, slider and cam: zinc die, zinc plated
Lock cover: zinc die, matte chrome plated
Clamp: zinc die, untreated
Seal: CR / NBR
Roller: POM, black
Washer, fastening screws and set screw: steel, zinc plated
Collar screw: stainless steel
Gear cover: PA6, black

Remarks

(S) Door-thickness max. 3mm

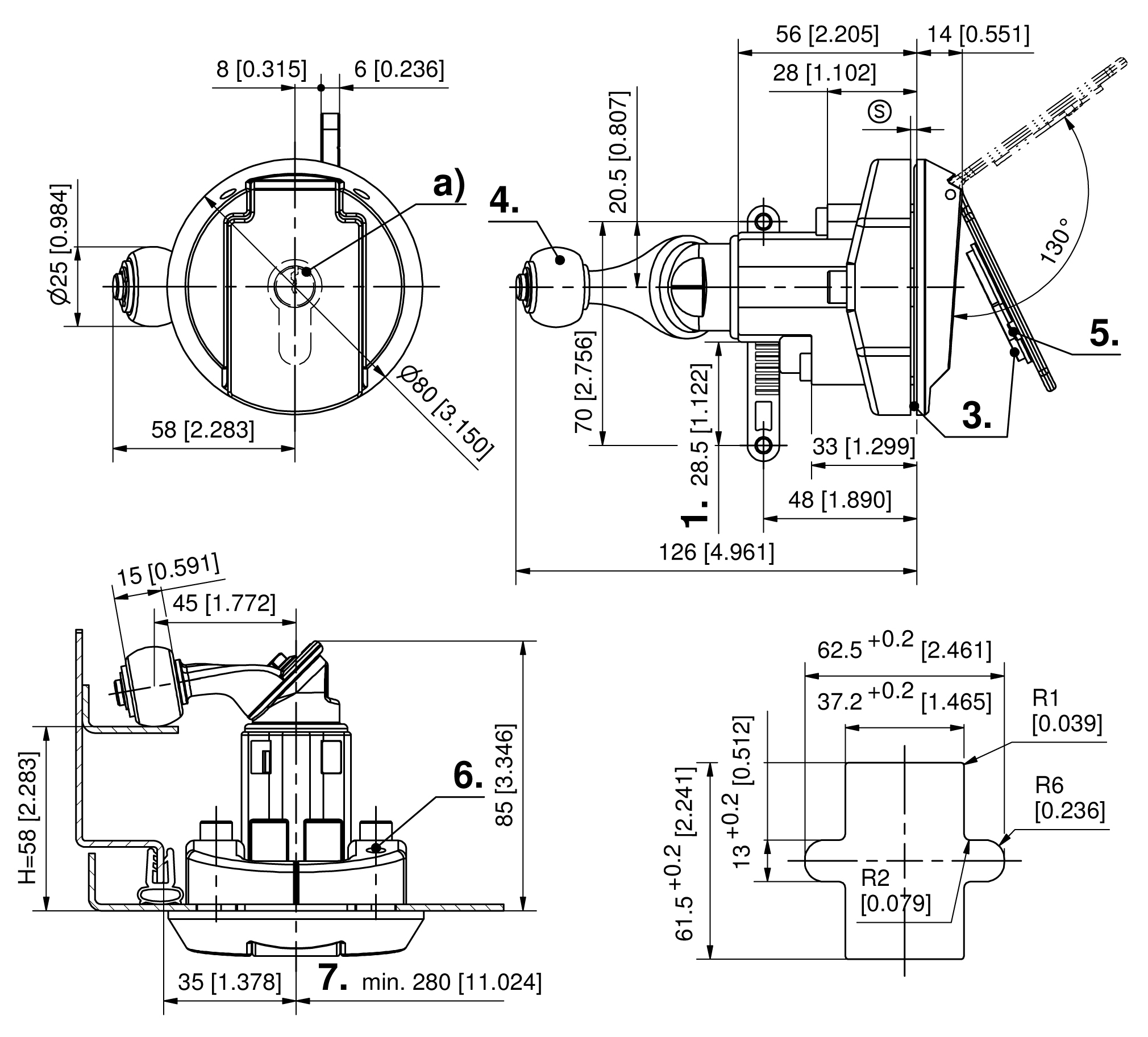

1. stroke 28.5mm
4. opened
7. min 280mm to the pivot point (hinge)

Profile half cylinders and their assembly must be ordered separately.

Version DIN RH (as shown).Version DIN LH on request.
