[6-501]

2-Point Latch PHZ, vertical

ICON_IP65
ICON_ROHS
ICON_PZ_DIN_18252
ICON_FLACHSTANGE
6_501
E_6-501_1
E_6-501_100
E_6-501_2
E_6-501_3
6_501
E_6-501_1
E_6-501_100
E_6-501_2
E_6-501_3

Advantages

  • No protruding handle or knob.
  • Perfectly suited to control flat rods.
  • The key inserted into the profile-cylinder opens and closes the lock according to DIN 18252.
  • Closing- and opening operation 180°.
  • The key is removable only in the locked position.
  • IP65 according to DIN EN 60529. (4.)

Material

  • Housing, housing cover and slider: zinc die, zinc plated
  • Screws: steel, zinc plated
  • O-rings: NBR, black
  • Flat external seal: EPDM, black

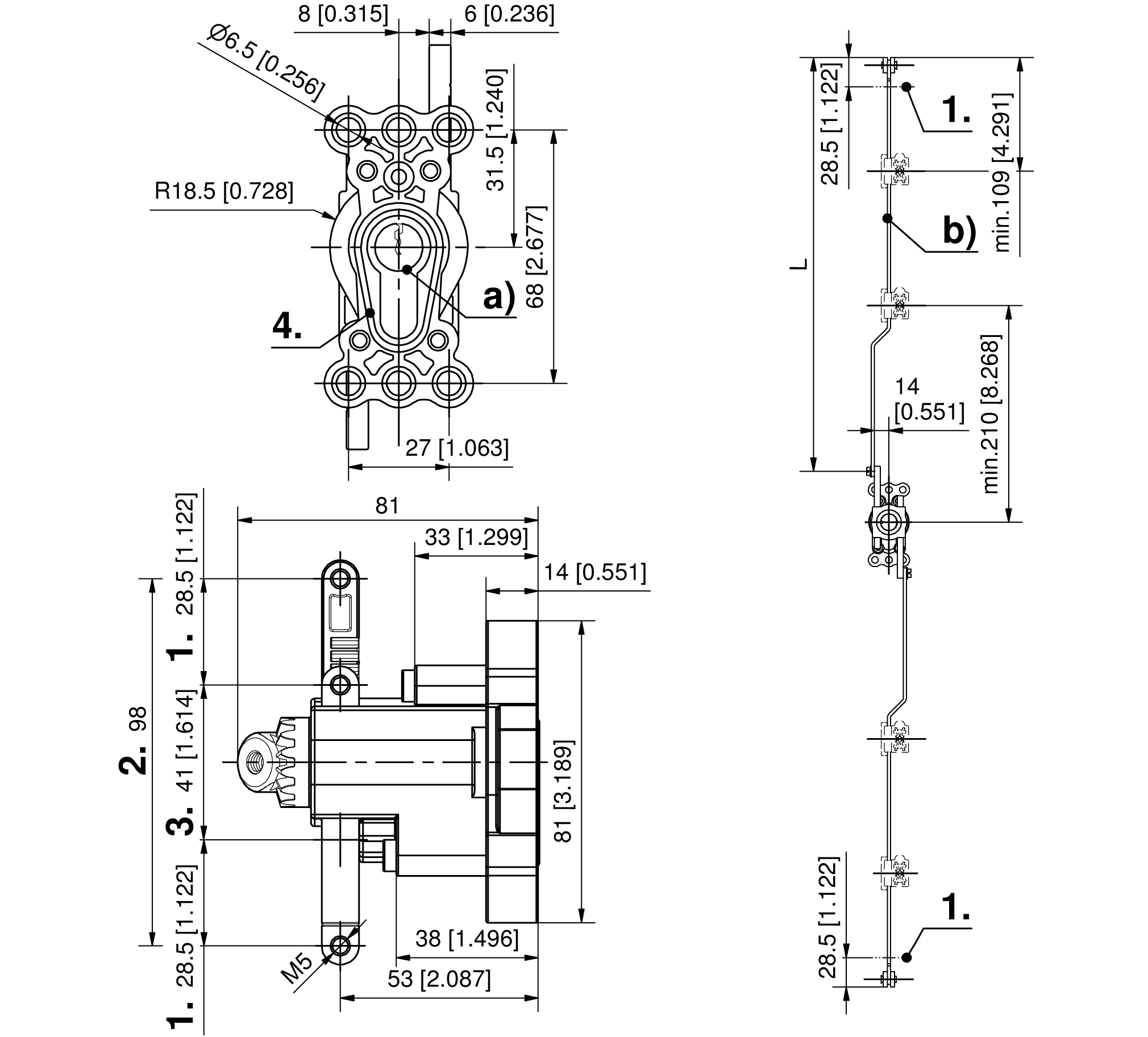

Remarks

1. stroke 28.5mm
2. extracted
3. retracted
5. e.g. weld stud M6x20

Profile half cylinders and their assembly must be ordered separately.

Version DIN RH (as shown). Version DIN LH on request.
Please select version Product data sheet

Available versions

2-point latch PHZ (internal)

Product number
Version
Multi-point latches
Installation type
Delivery Unit
448-9119.00-00000
for flat rods
Yes
screw-on
1 pc.
