Compression Latch PHZ

Advantages

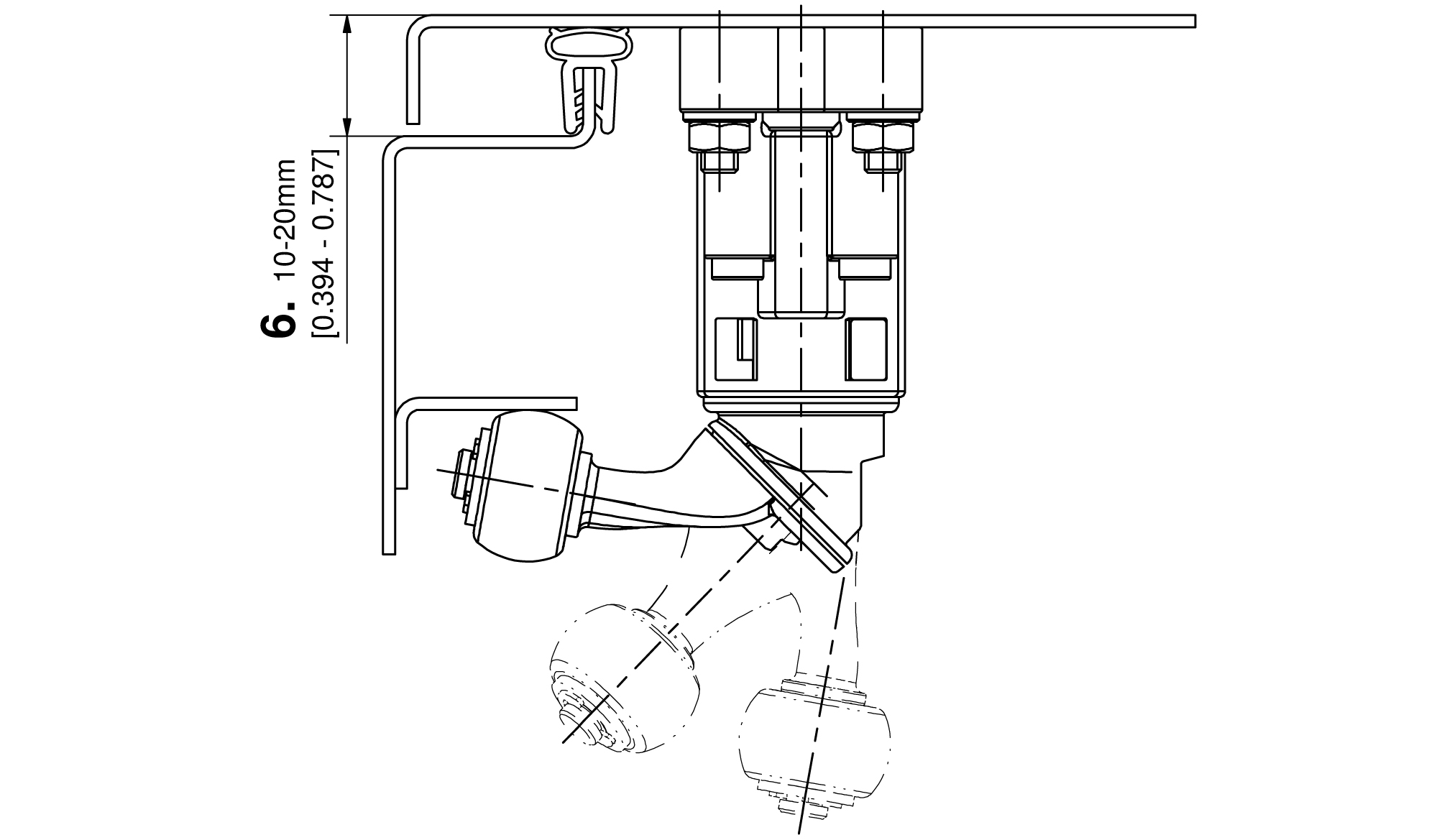

Compression 10 - 20mm. (6.)
No protruding handle or knob.
The key inserted into the profile-cylinder opens and closes the lock according to DIN 18252.
Closing- and opening operation 180°.
The key is removable only in the locked position.
IP65 according to DIN EN 60529. (2.)
Vibration-proof according to DIN EN 61373.
1300N of force at the latching point.

Material

Housing, housing cover, slider and cam: zinc die, zinc plated
Roller: POM, black
Washer, retaining clip and fastening screws: steel, zinc plated
Shoulder bolt: stainless steel
Gear cover: PA6, black
O-Rings: NBR, black
Flat external seal: EPDM, black

Remarks

1. stroke 28,5mm
3. cam open position
4. to the pivot to the hinge min. 280mm
5. e.g. weld stud M6x20

Profile half cylinders and their assembly must be ordered separately.

Version DIN RH (as shown). Version DIN LH on request.
