[6-320.03]

Locking Bar System □16

ICON_ROHS
6_320_01
E_6-320_100
E_6-320_03
6_320_01
E_6-320_100
E_6-320_03

Advantages

  • For heavy doors.
  • Both ends come ready to be connected to the handle mechanism.

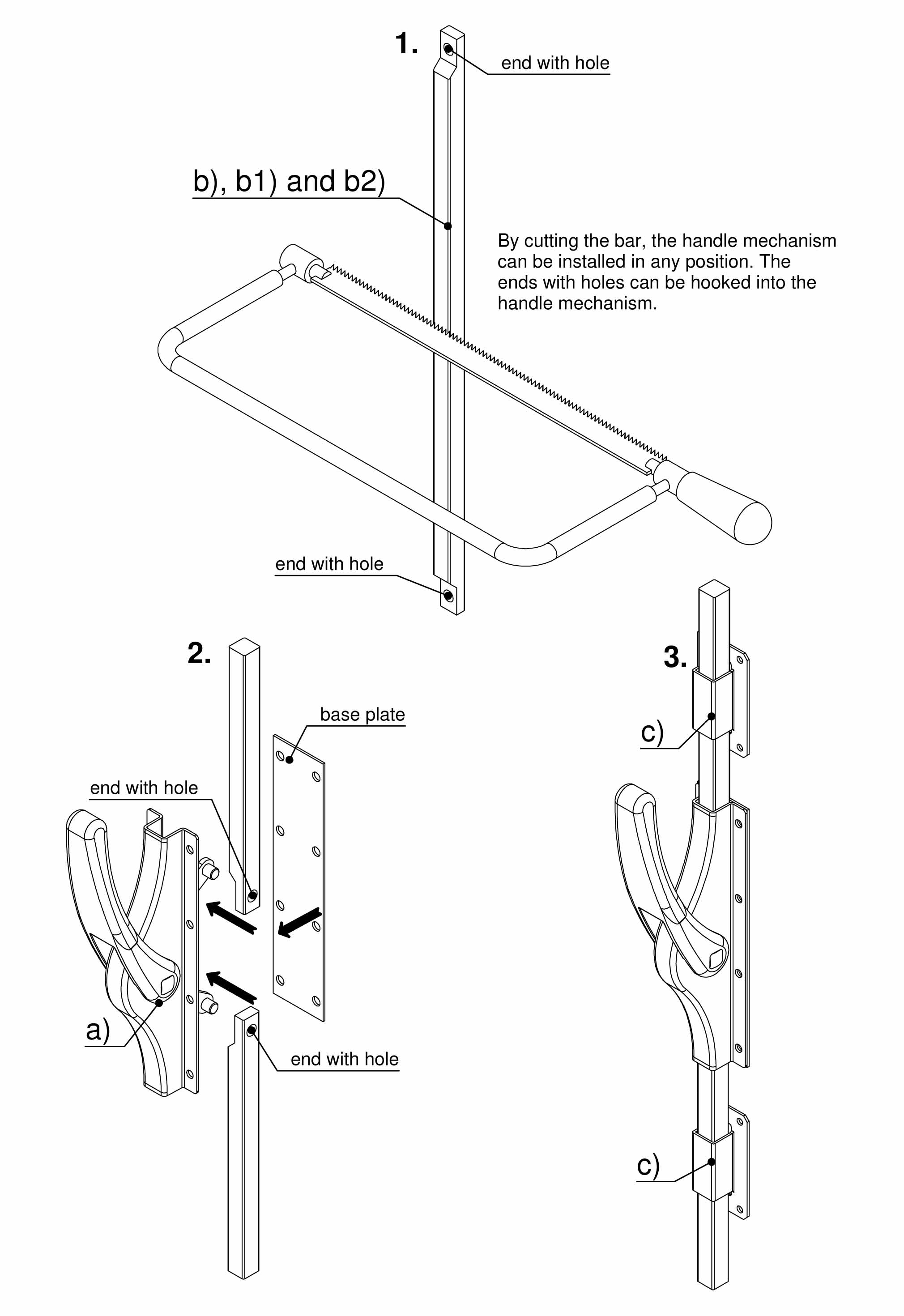

  • By cutting the rod, the handle mechanism can be installed in any position.

Material

  • Bolt box, base plate, rod guides, handle: steel, zinc plated

Remarks

1. stroke 28mm

Please order separately: rod one-piece.
Please select version Product data sheet

Available versions

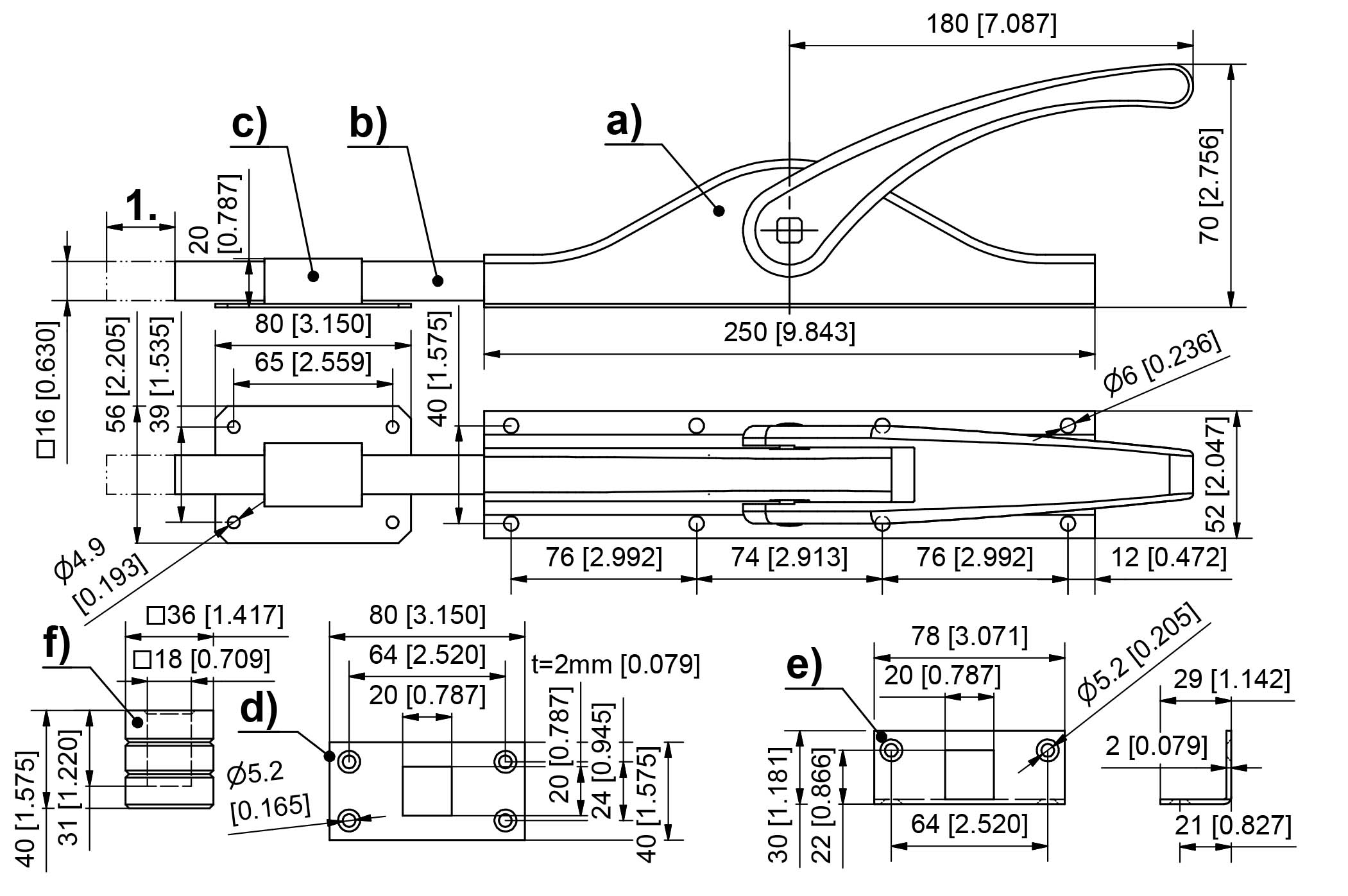

Locking bar system incl. base plate and 4 rod guides


Product number
Multi-point latches
Installation type
Delivery Unit
a)
249-9205.00-00000
Yes
screw-on
1 pc.

Related Products

Skip product gallery

Specific accessories

6_320_01
249-0508.00-00000 Rod for locking bar system □16, 2000mm
6_320_01
249-0509.00-00000 Rod for locking bar system □16, 2500mm
6_320_01
249-0510.00-00000 Rod for locking bar system □16, 3000mm
6_320_01
249-0410.00-00000 Rod guide for locking bar system □16
6_320_01
249-0304.00-00000 Bottom plate, angled
6_320_01
249-0603.00-00000 Bar latching bushing for concrete, 2 parts, for rod □16
6_320_01
249-0205.00-00000 Bottom plate, straight
