[6-320.01]

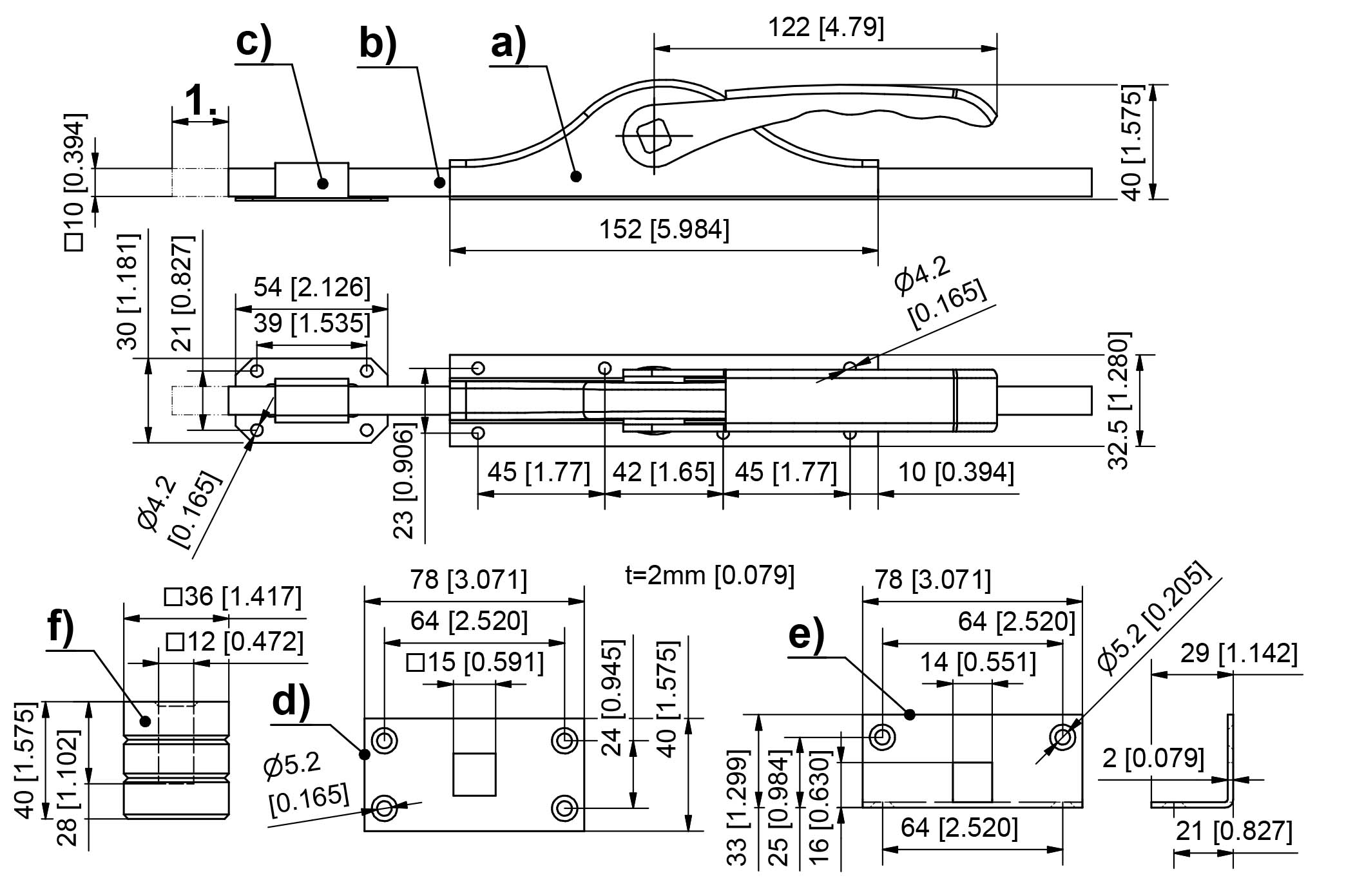

Locking Bar System □10

ICON_ROHS
6_320_01
E_6-320_100
E_6-320_01
6_320_01
E_6-320_100
E_6-320_01

Advantages

  • For heavy doors.
  • Both ends come ready to be connected to the handle mechanism.
  • By cutting the rod, the handle mechanism can be installed in any position.

Material

  • Bolt box, base plate, rod guides, handle: steel,zinc plated

Remarks

1. stroke 19mm

Includes locking bar system incl. base plate and 2 rod guides.
Please order separately: rod one-piece
Please select version Product data sheet

Available versions

Locking bar system incl. base plate and 2 rod guides


Product number
Multi-point latches
Installation type
Delivery Unit
a)
249-9005.00-00000
Yes
screw-on
1 pc.

Related Products

Skip product gallery

Accessories

6_320_01
249-0502.00-00000 Rod for locking bar system □10, 2000mm
6_320_01
249-0503.00-00000 Rod for locking bar system □10, 2500mm
6_320_01
249-0504.00-00000 Rod for locking bar system □10, 3000mm
6_320_01
249-0408.00-00000 Rod guide for locking bar system □10
6_320_01
249-0204.00-00000 Bottom plate, straight
6_320_01
249-0601.00-00000 Bar latching bushing for concrete, 2 parts, for rod □10
