[6-160.01]

Compression Lever Latch

Advantages

Flat compression lever latch with release button.
With pre-assembled mounting bracket.
No rear access needed for assembly.
In closed position the lever latch cannot be disassembled.
Vibration-proof according to DIN EN 61373.
Adjustment of the H-dimension (1.) from 0 to 40mm.
Lockable lever latches with stainless dust cover and 2 keys.
The spring bolt keeps doors and flaps always under tension against the frame.
No need for readjusting if the pressure if the sealing decreases.

Material

Compression lever latch: zinc die, black, powder coated
Clamp: steel, zinc plated
Spring bolt and spring: stainless steel

Remarks

(S) Door-thickness max. 3.2mm

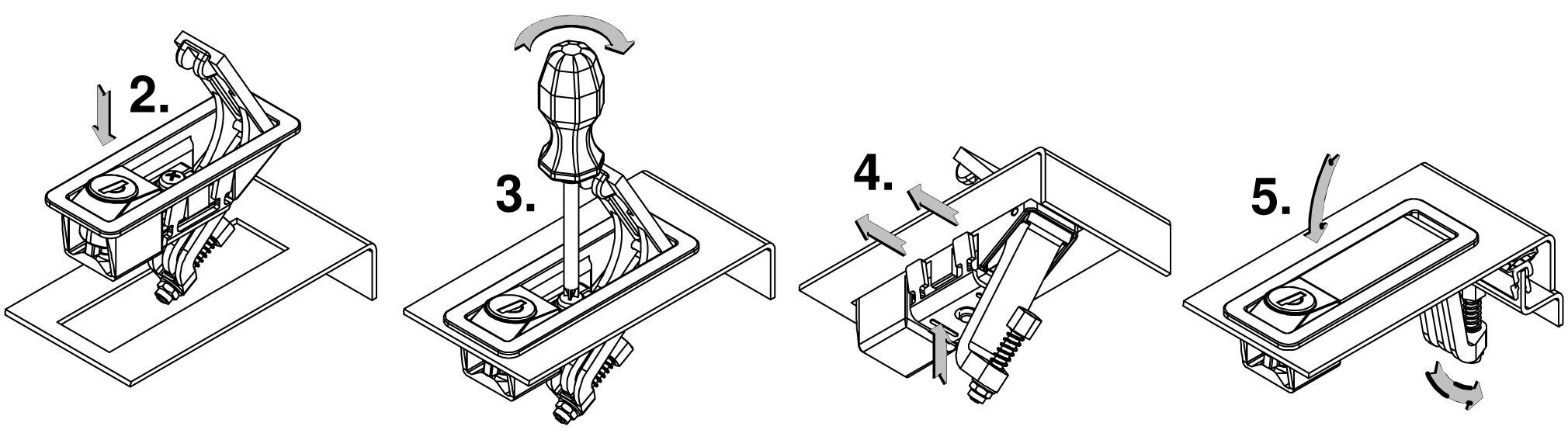

Installation:
2. the complete latch can be installed in the cutout from the front.
3. by turning the screw (PH2) from the outside, the mounting bracket spreads and fixes the latch in the door panel.
4. the latch is securely fastened by the mounting backet in the cutout.
5. by closing the latch the door is pulled against the frame.

Available versions

Compression Lever Latch, without lock

Product number

variable H-dimension

Installation type

Delivery Unit
