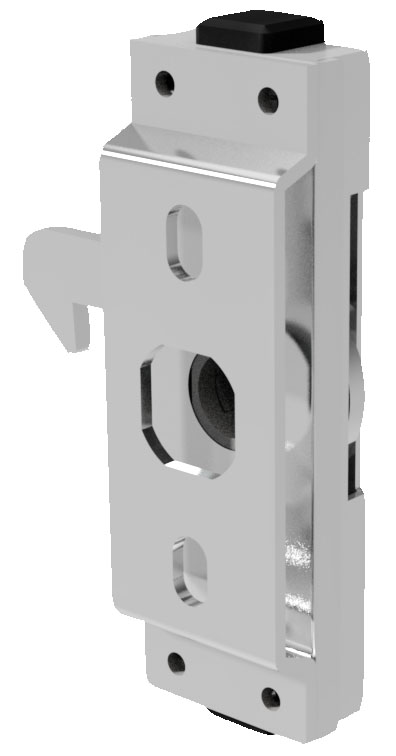

Sliding Door Latch
Advantages
- Hooked cam with free stroke.
- Version RH, hook LH.
- Version LH, hook RH.
- Opening angle of the hook 15°.
Material
- Sliding door latch and cam: steel, zinc plated
- Plug: PE, black
Remarks
Please order separately: b) lock supportPlease configure the sliding door latch with escutcheon and insert or T- and L-handle or with swinghandle.

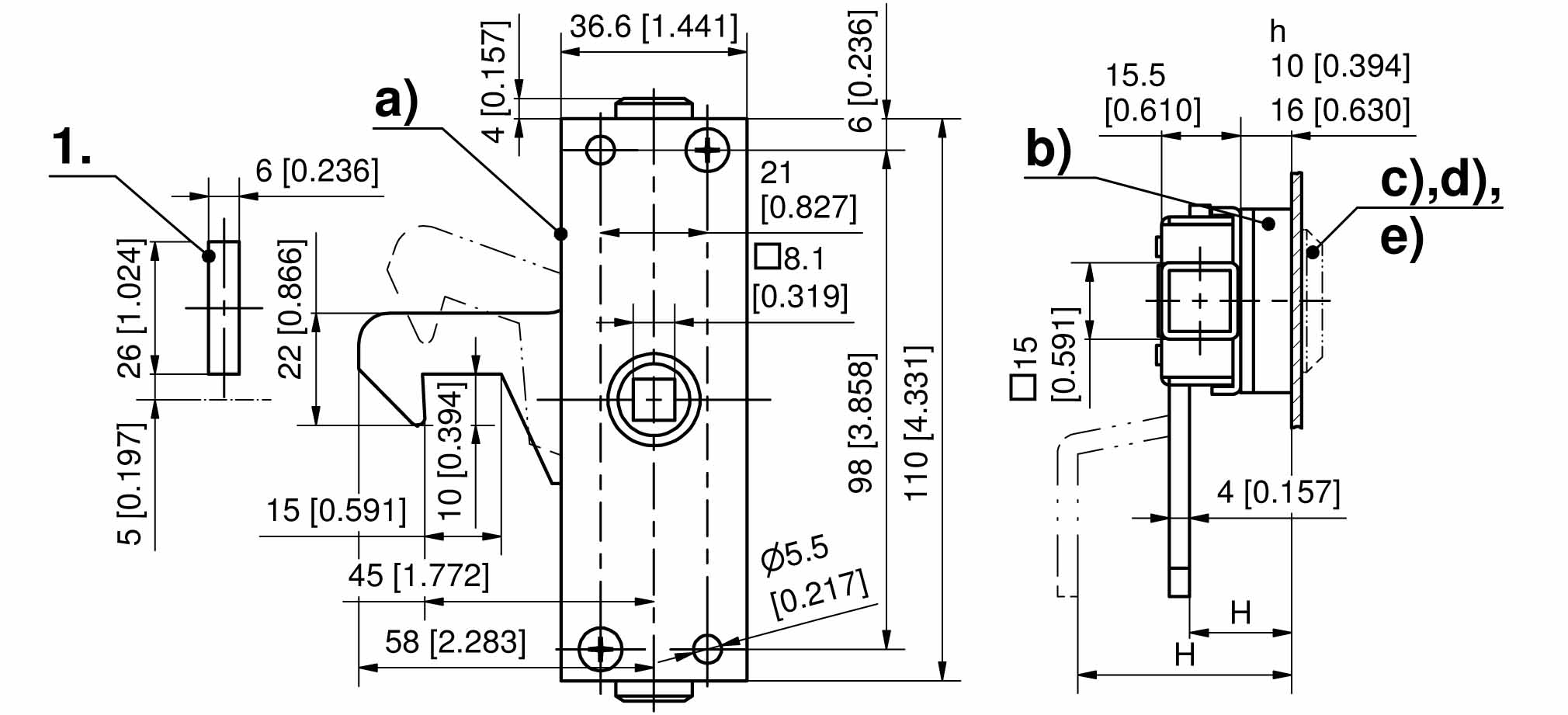

1. example for frame cutout
Selected version
| Product number | 235-9015.00-00000 |
| Delivery Unit: | 1 pc. |
| Installation type: | screw-on |
| H-dimension with lock support A26: | 26 mm |
| H-dimension with lock support A20: | 20 mm |
| H-dimension without support: | 10 mm |
Related Products
Accessories
Article no.
Name
b)
235-1001.00-00000
Lock support A20
b)
235-1002.00-00000
Lock support A26
c)
235-9101.00-00000
Insert Square 6mm
c)
235-9102.00-00000
Insert square 7mm
c)
235-9103.00-00000
Insert square 8mm
c)
235-9104.00-00000
Insert triangular 6.5mm CNOMO
c)
235-9105.00-00000
Insert triangular 7mm
c)
235-9106.00-00000
Insert triangular 8mm
c)
235-9107.00-00000
Insert double bit 3mm pin
c)
235-9108.00-00000
Insert double bit 5mm pin
c)
235-9109.00-00000
Insert Daimler Benz pin
d)
235-9501.00-00000
T-Handle chrome plated
d)
235-9502.00-00000
T-Handle, chrome plated
d)
235-9505.00-00000
T-Handle, chrome plated, keyed alike DIRAK 1333
Details
for rod latch:
A20
Latching type:
keyed alike DIRAK 1333
Delivery Unit:
1 pc.
d)
235-9506.00-00000
T-Handle, chrome plated, keyed alike DIRAK 1333
Details
for rod latch:
A26
Latching type:
keyed alike DIRAK 1333
Delivery Unit:
1 pc.
d)
535-9505.00-00000
T-Handle, chrome plated, keyed alike DS200
Details
for rod latch:
A20
Latching type:
keyed alike DS200
Delivery Unit:
1 pc.
d)
535-9506.00-00000
T-Handle, chrome plated, keyed alike DS200
Details
for rod latch:
A26
Latching type:
keyed alike DS200
Delivery Unit:
1 pc.
d)
235-9510.00-00000
T-Handle, chrome plated, keyed different
Details
for rod latch:
A20
Latching type:
keyed different
Delivery Unit:
1 pc.
d)
235-9511.00-00000
T-Handle, chrome plated, keyed different
Details
for rod latch:
A26
Latching type:
