[6-111.01]

Slam Latch for two Profile-Cylinder, with and without Internal Unlocking

Advantages

For two profile-cylinder with lengths of 40mm / 45mm length to DIN 18252.
Opening possible by operating a profile cylinder, independent of the second cylinder.
Lock cylinder can be adjusted to accomodate different latch mounting positions.
Pull back of the latch bolt by rotation of the key.
Closing is possible by self-locking of the latch bolt with free stroke.
Variant a) with internal unlocking: by pulling the handle, the latch is retracted.
Large, ergonomically shaped handle for optimal operation.
Use in applications according to DIN 79008.
Indication of unlocking direction by high-quality self-adhesive foil, long afterglow coated according to DIN 67510-4.
Variant b): without internal unlocking.

Material

Slam latch: zinc die, zinc plated
Latch bolt: spheroidal graphite, cast iron
Handle for internal unlocking: PA, green

Remarks

Please order separately:
profile-cylinder, lock support and lock cover

Installation with 4 carriage bolts or weld-studs M5.

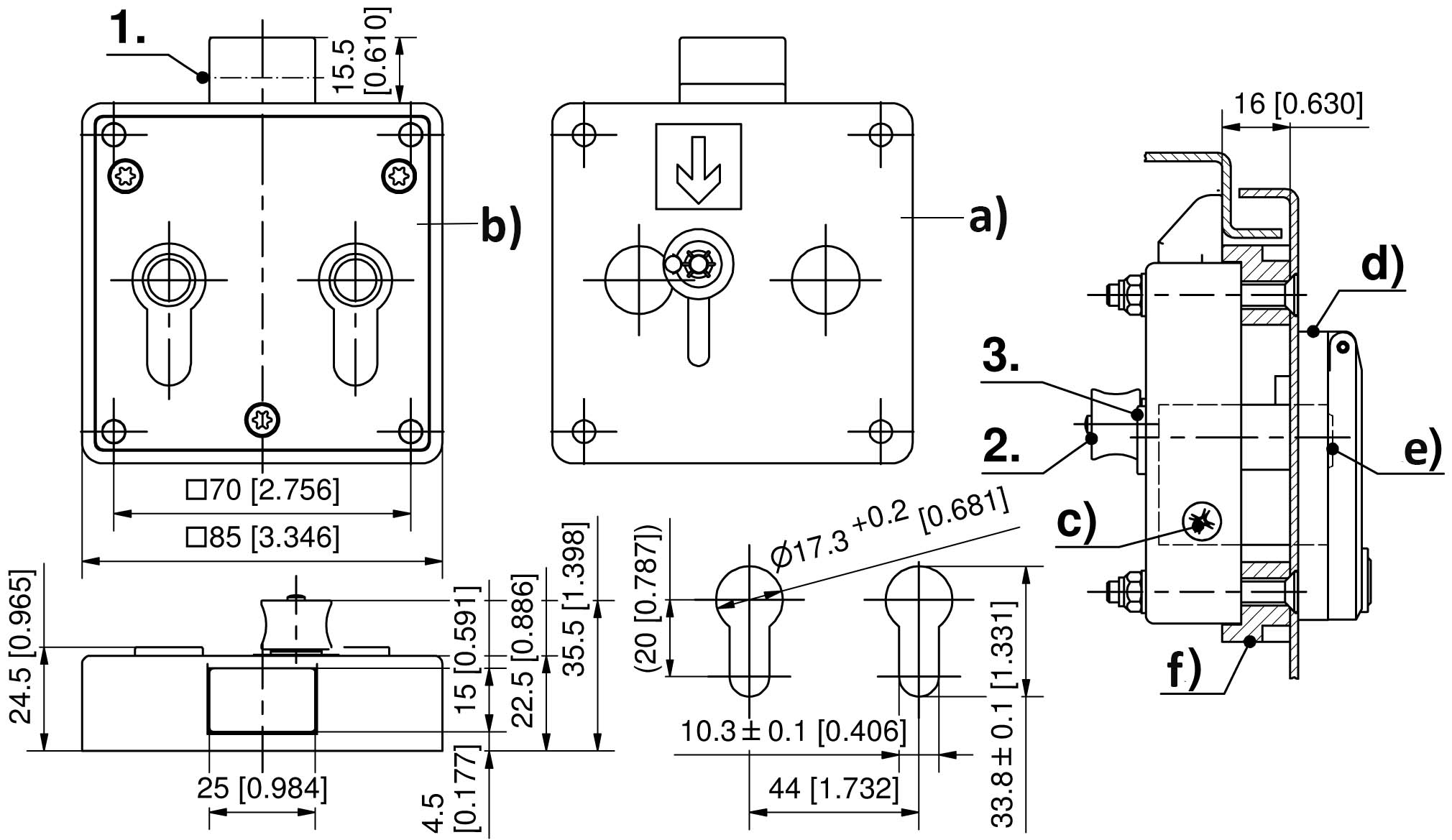

1. stroke
2. handle for internal unlocking
3. plug

Shown is part number 229-9111.00-00001

Selected version

Product number	229-9113.00-00001
Delivery Unit:	1 pc.
Installation type:	screw-on
Variant:	with internal unlocking

Product Configuration

Selected version

Product number	229-9113.00-00001
Delivery Unit:	1 pc.
Installation type:	screw-on
Variant:	with internal unlocking
