Slam Latch for Profile-Cylinder, with and without Internal Unlocking

ICON_ROHS
ICON_PZ_DIN_18252
ICON_TUERANSCHLAG_LR

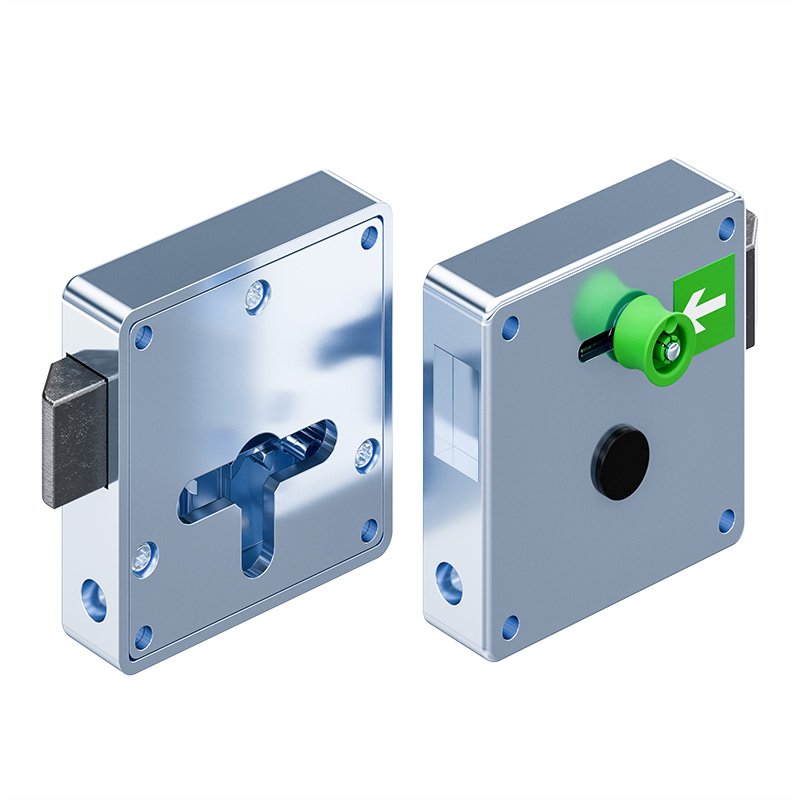

6-111_beide_Varianten
E_6-111
6-111_beide_Varianten
E_6-111

Advantages

  • For profile-cylinder with lengths of 40mm / 45mm to DIN 18252.
  • RH / LH or vertical / horizontal application.
  • Lock cylinder can be adjusted to accomodate different latch mounting positions.
  • Pull back of the latch bolt by rotation of the key.
  • Closing is possible by self-locking of the latch bolt with free stroke.
  • Variant a) with internal unlocking : by pulling the handle, the latch is retracted.
  • Large, ergonomically shaped handle for optimal operation.
  • Use in applications according to DIN 79008.
  • Indication of unlocking direction by high-quality self-adhesive foil, long afterglow coated according to DIN 67510-4.
  • Variant b): without internal unlocking.

Material

  • Slam latch: zinc die, zinc plated
  • Latch bolt: spheroidal graphite, cast iron
  • Internal unlocking: PA, green

Remarks

Please order separately:
profile-cylinder, lock support and lock cover

Installation with 4 carriage bolts or weld-studs M5.

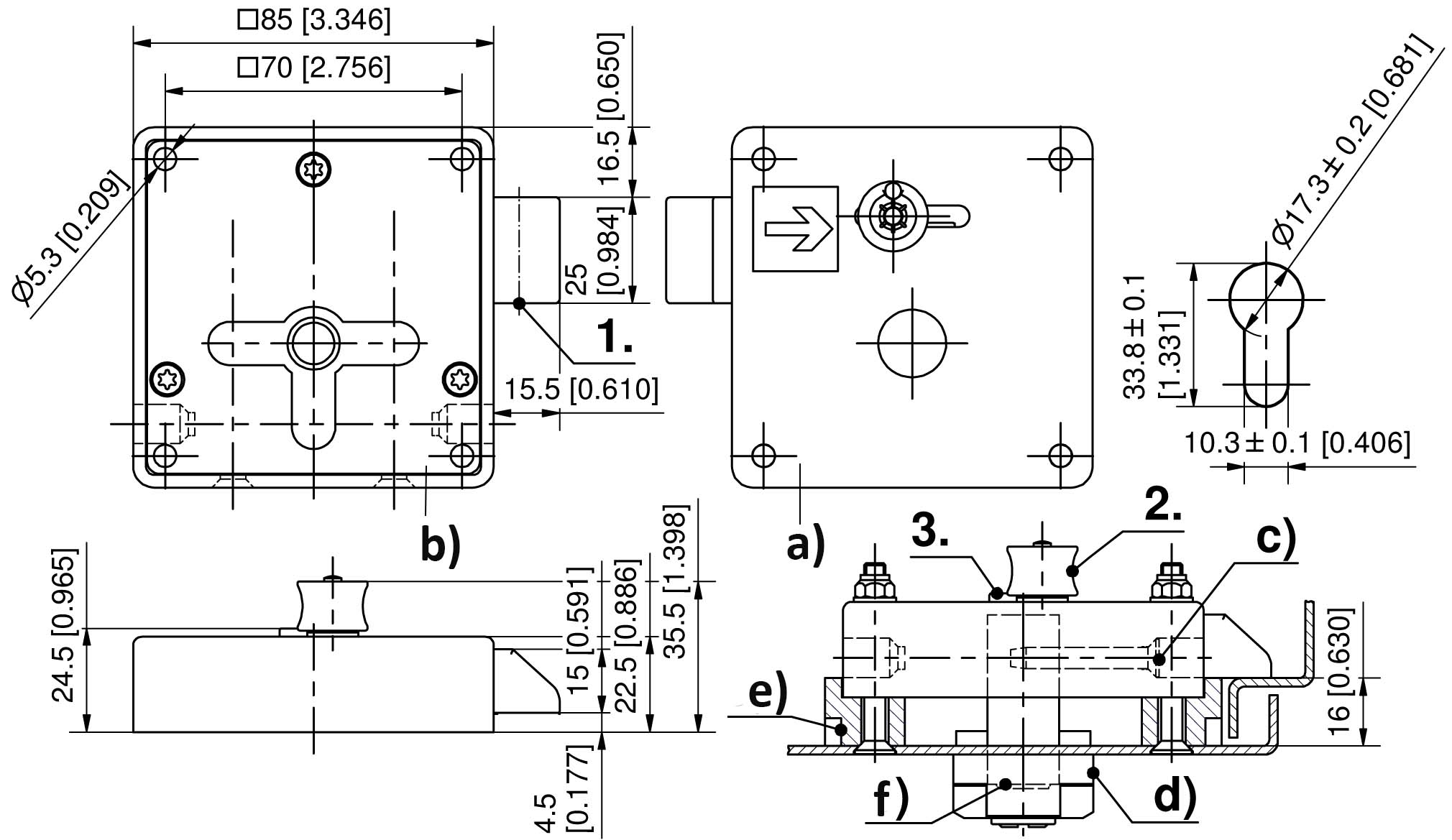

1. stroke
2. handle for internal unlocking
3. plug

Shown is part number 229-9111.00-00001

Selected version

Product number 229-9111.00-00001
Delivery Unit: 1 pc.
Installation type: screw-on
Version: LH door
Variant: with internal unlocking
Remove selection Product data sheet

Related Products

Accessories



Article no.
Name

c)
860-0965.00-00540
Countersunk screw
Details
Thread size:
M5
L:
40 mm
Delivery Unit:
200 pcs.
Open product in new tab
d)
6-115
Polyamide Lock Cover
Open overview in new tab
d)
237-9001.00-00000
Polyamide lock cover for profile-cylinder
Details
Application:
for PHZ
Open product in new tab
d)
237-9051.00-00000
Polyamide lock cover for profile-cylinder
Details
Application:
for PHZ
Open product in new tab
d)
237-8004.00-00000
Polyamide lock cover for round cylinder Ø22 or quarter-turn housing Ø28
Details
Application:
for round cylinder Ø22 or quarter-turn housing Ø28
Open product in new tab
d)
237-8002.00-00000
Polyamide lock cover for profile-cylinder
Details
Application:
for PHZ
Open product in new tab
d)
237-9304.00-00000
Polyamide lock cover for profile-cylinder
Details
Application:
for PHZ
Open product in new tab
d)
237-0401.06-07032
Base plate 5mm thick
Details
Application:
for Ø22, PHZ
Open product in new tab
d)
237-0401.06-07035
Base plate 5mm thick
Details
Application:
for Ø22, PHZ
Open product in new tab
d)
237-0402.06-07032
Base plate 2mm thick
Details
Application:
for PHZ
Open product in new tab
e)
6-111.03
Lock Support for Slam Latch
Open overview in new tab
e)
229-0504.35-04045
Lock support
Details
for bending:
11,5 or 16mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
e)
229-0504.35-04050
Lock support
Details
for bending:
11,5 or 21mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
f)
211-9003.00-00000
DIRAK pin cylinder, DIN 18252, 8 x 45° adjustable, keyed alike
Details
Latching type:
keyed alike
Clip-in:
No
Delivery Unit:
1 pc.
Open product in new tab
f)
211-9004.00-00000
DIRAK pin cylinder, DIN 18252, 8 x 45° adjustable, keyed different
Details
Latching type:
keyed different
Clip-in:
No
Delivery Unit:
1 pc.
Open product in new tab
