Compression Latch
Advantages

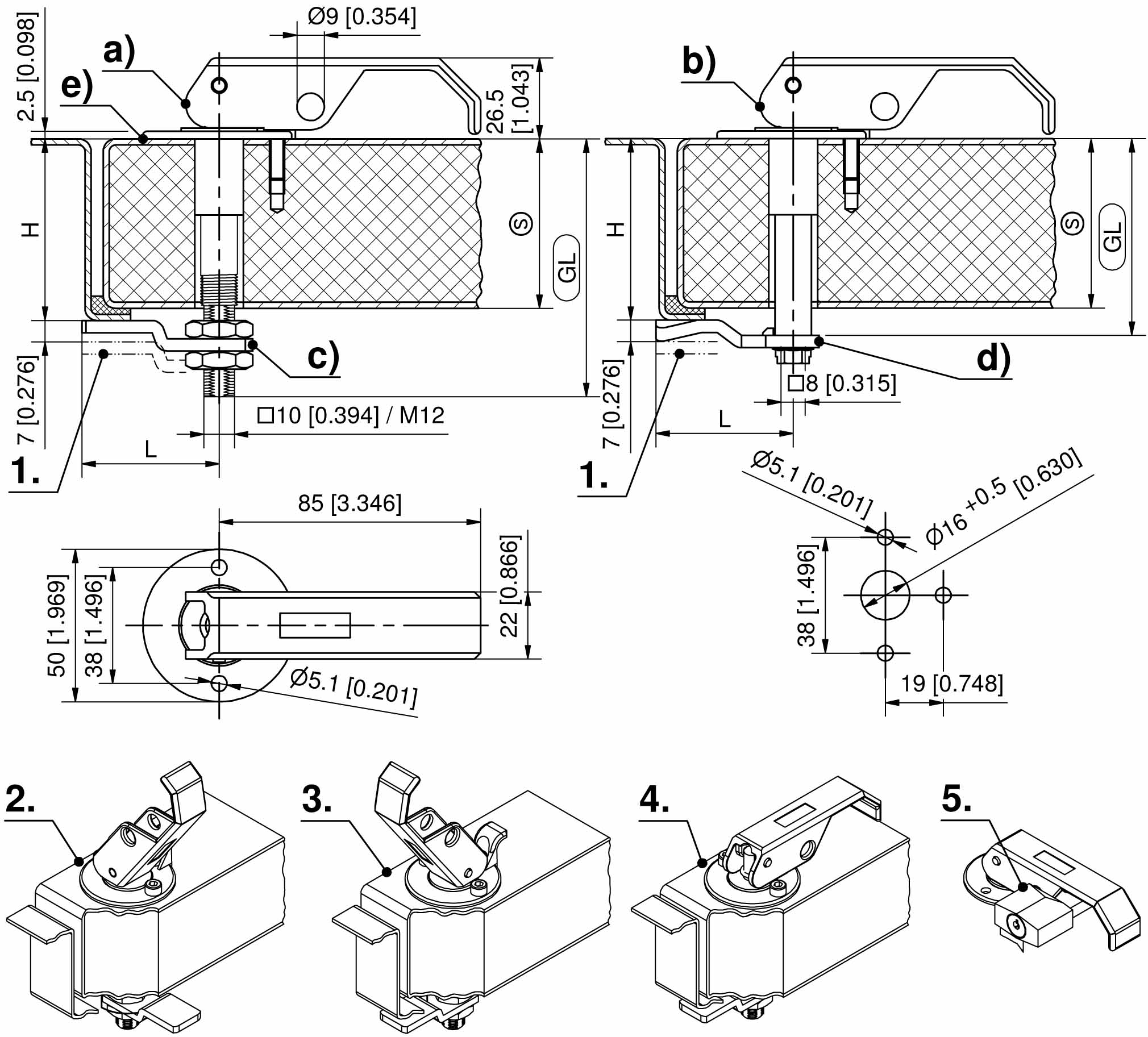

- Version a): the H-dimension can be adjusted on the square threaded rod with the included nuts by +/- 20mm.
Use of cams c). - Version b): the H-dimension can be varied via the cranking of the cams.
Use of cams d). - The cams can be installed in four positions by rotating them 90°.
- IP65 according to DIN EN 60529 with flat seal (optional).
Material
- Compression latch: zinc die, black or zinc plated
- Square threaded rod, shaft and cams: steel, zinc plated
Remarks
Installation with blind rivets or screws.1. compression 7mm
2. open position
3. cam behind the locking surface
4. by folding of the handle the cam is tightened at the locking surface
5. lockable with padlock
Related Products
Accessories

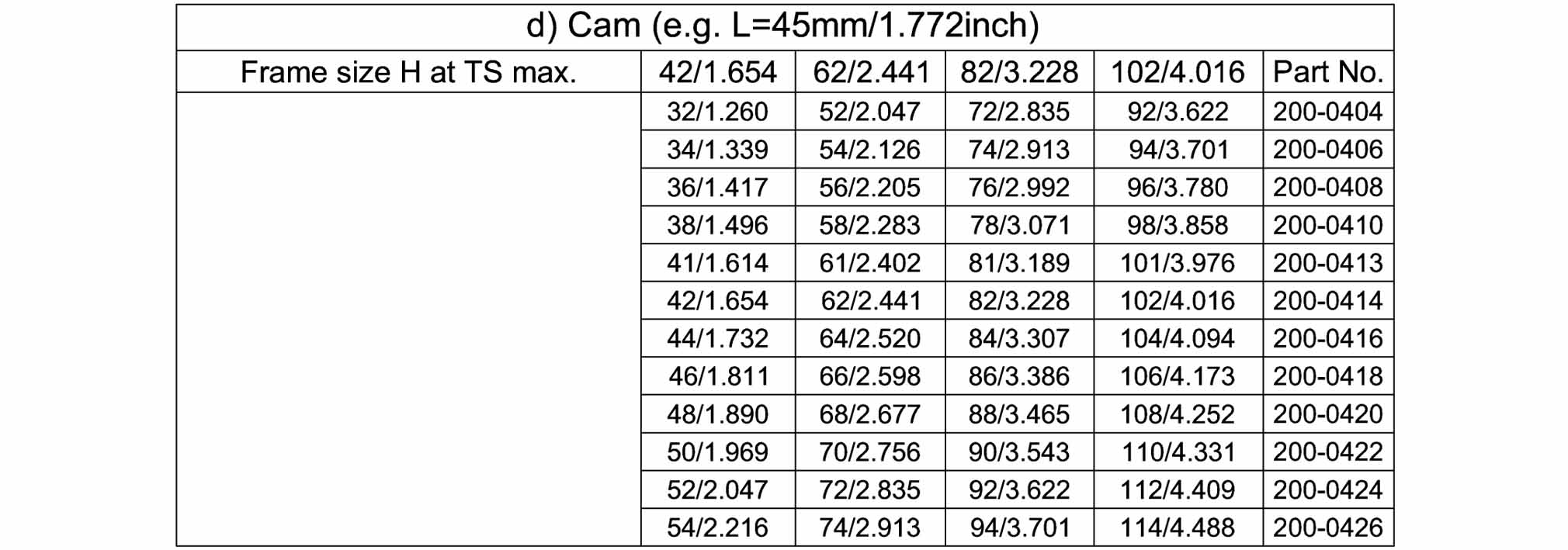

Article no.
Name
d)
200-0402.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
2 mm
H-dimension Gl20:
4 mm
H-dimension Gl22:
6 mm
H-dimension Gl30:
14 mm
H-dimension Gl32:
16 mm
H-dimension Gl36:
20 mm
H-dimension Gl40:
24 mm
H-dimension Gl42:
26 mm
H-dimension Gl46:
30 mm
H-dimension Gl50:
34 mm
H-dimension Gl56:
40 mm
H-dimension Gl60:
44 mm
H-dimension Gl66:
50 mm
Delivery Unit:
10 pcs.
d)
200-0404.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
4 mm
H-dimension Gl20:
6 mm
H-dimension Gl22:
8 mm
H-dimension Gl30:
16 mm
H-dimension Gl32:
18 mm
H-dimension Gl36:
22 mm
H-dimension Gl40:
26 mm
H-dimension Gl42:
28 mm
H-dimension Gl46:
32 mm
H-dimension Gl50:
36 mm
H-dimension Gl56:
42 mm
H-dimension Gl60:
46 mm
H-dimension Gl66:
52 mm
Delivery Unit:
10 pcs.
d)
200-0406.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
6 mm
H-dimension Gl20:
8 mm
H-dimension Gl22:
10 mm
H-dimension Gl30:
18 mm
H-dimension Gl32:
20 mm
H-dimension Gl36:
24 mm
H-dimension Gl40:
28 mm
H-dimension Gl42:
30 mm
H-dimension Gl46:
34 mm
H-dimension Gl50:
38 mm
H-dimension Gl56:
44 mm
H-dimension Gl60:
48 mm
H-dimension Gl66:
54 mm
Delivery Unit:
10 pcs.
d)
200-0408.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
8 mm
H-dimension Gl20:
10 mm
H-dimension Gl22:
12 mm
H-dimension Gl30:
20 mm
H-dimension Gl32:
22 mm
H-dimension Gl36:
26 mm
H-dimension Gl40:
30 mm
H-dimension Gl42:
32 mm
H-dimension Gl46:
36 mm
H-dimension Gl50:
40 mm
H-dimension Gl56:
46 mm
H-dimension Gl60:
50 mm
H-dimension Gl66:
56 mm
Delivery Unit:
10 pcs.
d)
200-0410.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
10 mm
H-dimension Gl20:
12 mm
H-dimension Gl22:
14 mm
H-dimension Gl30:
22 mm
H-dimension Gl32:
24 mm
H-dimension Gl36:
28 mm
H-dimension Gl40:
32 mm
H-dimension Gl42:
34 mm
H-dimension Gl46:
38 mm
H-dimension Gl50:
42 mm
H-dimension Gl56:
48 mm
H-dimension Gl60:
52 mm
H-dimension Gl66:
58 mm
Delivery Unit:
10 pcs.
d)
200-0413.00-00000
Cam L45
Details
H-dimension Gl12:
7 mm
H-dimension Gl18:
13 mm
H-dimension Gl20:
15 mm
H-dimension Gl22:
17 mm
H-dimension Gl30:
25 mm
H-dimension Gl32:
27 mm
H-dimension Gl36:
31 mm
H-dimension Gl40:
35 mm
H-dimension Gl42:
37 mm
H-dimension Gl46:
41 mm
H-dimension Gl50:
45 mm
H-dimension Gl56:
51 mm
H-dimension Gl60:
55 mm
H-dimension Gl66:
61 mm
Delivery Unit:
10 pcs.
d)
200-0414.00-00000
Cam L45
Details
H-dimension Gl12:
8 mm
H-dimension Gl18:
14 mm
H-dimension Gl20:
16 mm
H-dimension Gl22:
18 mm
H-dimension Gl30:
26 mm
H-dimension Gl32:
28 mm
H-dimension Gl36:
32 mm
H-dimension Gl40:
36 mm
H-dimension Gl42:
38 mm
H-dimension Gl46:
42 mm
H-dimension Gl50:
46 mm
H-dimension Gl56:
52 mm
H-dimension Gl60:
56 mm
H-dimension Gl66:
62 mm
Delivery Unit:
10 pcs.
d)
200-0416.00-00000
Cam L45
Details
H-dimension Gl12:
10 mm
H-dimension Gl18:
16 mm
H-dimension Gl20:
18 mm
H-dimension Gl22:
20 mm
H-dimension Gl30:
28 mm
H-dimension Gl32:
30 mm
H-dimension Gl36:
34 mm
H-dimension Gl40:
38 mm
H-dimension Gl42:
40 mm
H-dimension Gl46:
44 mm
H-dimension Gl50:
48 mm
H-dimension Gl56:
54 mm
H-dimension Gl60:
58 mm
H-dimension Gl66:
64 mm
Delivery Unit:
10 pcs.
d)
200-0418.00-00000
Cam L45
Details
H-dimension Gl12:
12 mm
H-dimension Gl18:
18 mm
H-dimension Gl20:
20 mm
H-dimension Gl22:
22 mm
H-dimension Gl30:
30 mm
H-dimension Gl32:
32 mm
H-dimension Gl36:
36 mm
H-dimension Gl40:
40 mm
H-dimension Gl42:
42 mm
H-dimension Gl46:
46 mm
H-dimension Gl50:
50 mm
H-dimension Gl56:
56 mm
H-dimension Gl60:
60 mm
H-dimension Gl66:
66 mm
Delivery Unit:
10 pcs.
d)
200-0420.00-00000
Cam L45
Details
H-dimension Gl12:
14 mm
H-dimension Gl18:
20 mm
H-dimension Gl20:
22 mm
H-dimension Gl22:
24 mm
H-dimension Gl30:
32 mm
H-dimension Gl32:
34 mm
H-dimension Gl36:
38 mm
H-dimension Gl40:
42 mm
H-dimension Gl42:
44 mm
H-dimension Gl46:
48 mm
H-dimension Gl50:
52 mm
H-dimension Gl56:
58 mm
H-dimension Gl60:
62 mm
H-dimension Gl66:
68 mm
Delivery Unit:
10 pcs.
d)
200-0422.00-00000
Cam L45
Details
H-dimension Gl12:
16 mm
H-dimension Gl18:
22 mm
H-dimension Gl20:
24 mm
H-dimension Gl22:
26 mm
H-dimension Gl30:
34 mm
H-dimension Gl32:
36 mm
H-dimension Gl36:
40 mm
H-dimension Gl40:
44 mm
H-dimension Gl42:
46 mm
H-dimension Gl46:
50 mm
H-dimension Gl50:
54 mm
H-dimension Gl56:
60 mm
H-dimension Gl60:
64 mm
H-dimension Gl66:
70 mm
Delivery Unit:
10 pcs.
d)
200-0424.00-00000
Cam L45
Details
H-dimension Gl12:
18 mm
H-dimension Gl18:
24 mm
H-dimension Gl20:
26 mm
H-dimension Gl22:
28 mm
H-dimension Gl30:
36 mm
H-dimension Gl32:
38 mm
H-dimension Gl36:
42 mm
H-dimension Gl40:
46 mm
H-dimension Gl42:
48 mm
H-dimension Gl46:
52 mm
H-dimension Gl50:
56 mm
H-dimension Gl56:
62 mm
H-dimension Gl60:
66 mm
H-dimension Gl66:
72 mm
Delivery Unit:
10 pcs.
d)
200-0425.00-00000
Cam L45
Details
H-dimension Gl12:
19 mm
H-dimension Gl18:
25 mm
H-dimension Gl20:
27 mm
H-dimension Gl22:
29 mm
H-dimension Gl30:
37 mm
H-dimension Gl32:
39 mm
H-dimension Gl36:
43 mm
H-dimension Gl40:
47 mm
H-dimension Gl42:
49 mm
H-dimension Gl46:
53 mm
H-dimension Gl50:
57 mm
H-dimension Gl56:
63 mm
H-dimension Gl60:
67 mm
H-dimension Gl66:
73 mm
Delivery Unit:
10 pcs.
d)
200-0426.00-00000
Cam L45
Details
H-dimension Gl12:
20 mm
H-dimension Gl18:
26 mm
H-dimension Gl20:
28 mm
H-dimension Gl22:
30 mm
H-dimension Gl30:
38 mm
H-dimension Gl32:
40 mm
H-dimension Gl36:
44 mm
H-dimension Gl40:
48 mm
H-dimension Gl42:
50 mm
H-dimension Gl46:
54 mm
H-dimension Gl50:
58 mm
H-dimension Gl56:
64 mm
H-dimension Gl60:
68 mm
H-dimension Gl66:
74 mm
Delivery Unit:
10 pcs.
d)
200-0428.00-00000
Cam L45
Details
H-dimension Gl12:
22 mm
H-dimension Gl18:
28 mm
H-dimension Gl20:
30 mm
H-dimension Gl22:
32 mm
H-dimension Gl30:
40 mm
H-dimension Gl32:
42 mm
H-dimension Gl36:
46 mm
H-dimension Gl40:
50 mm
H-dimension Gl42:
52 mm
H-dimension Gl46:
56 mm
H-dimension Gl50:
60 mm
H-dimension Gl56:
66 mm
H-dimension Gl60:
70 mm
H-dimension Gl66:
76 mm
Delivery Unit:
10 pcs.
d)
200-0430.00-00000
Cam L45
Details
H-dimension Gl12:
24 mm
H-dimension Gl18:
30 mm
H-dimension Gl20:
32 mm
H-dimension Gl22:
34 mm
H-dimension Gl30:
42 mm
H-dimension Gl32:
44 mm
H-dimension Gl36:
48 mm
H-dimension Gl40:
52 mm
H-dimension Gl42:
54 mm
H-dimension Gl46:
58 mm
H-dimension Gl50:
62 mm
H-dimension Gl56:
68 mm
H-dimension Gl60:
72 mm
H-dimension Gl66:
78 mm
Delivery Unit:
10 pcs.
d)
200-0432.00-00000
Cam L45
Details
H-dimension Gl12:
26 mm
H-dimension Gl18:
32 mm
H-dimension Gl20:
34 mm
H-dimension Gl22:
36 mm
H-dimension Gl30:
44 mm
H-dimension Gl32:
46 mm
H-dimension Gl36:
50 mm
H-dimension Gl40:
54 mm
H-dimension Gl42:
56 mm
H-dimension Gl46:
60 mm
H-dimension Gl50:
64 mm
H-dimension Gl56:
70 mm
H-dimension Gl60:
74 mm
H-dimension Gl66:
80 mm
Delivery Unit:
10 pcs.
d)
200-0434.00-00000
Cam L45
Details
H-dimension Gl12:
28 mm
H-dimension Gl18:
34 mm
H-dimension Gl20:
36 mm
H-dimension Gl22:
38 mm
H-dimension Gl30:
46 mm
H-dimension Gl32:
48 mm
H-dimension Gl36:
52 mm
H-dimension Gl40:
56 mm
H-dimension Gl42:
58 mm
H-dimension Gl46:
62 mm
H-dimension Gl50:
66 mm
H-dimension Gl56:
72 mm
H-dimension Gl60:
76 mm
H-dimension Gl66:
82 mm
Delivery Unit:
10 pcs.
d)
200-0435.00-00000
Cam L45
Details
H-dimension Gl12:
29 mm
H-dimension Gl18:
35 mm
H-dimension Gl20:
37 mm
H-dimension Gl22:
39 mm
H-dimension Gl30:
47 mm
H-dimension Gl32:
49 mm
H-dimension Gl36:
53 mm
H-dimension Gl40:
57 mm
H-dimension Gl42:
59 mm
H-dimension Gl46:
63 mm
H-dimension Gl50:
67 mm
H-dimension Gl56:
73 mm
H-dimension Gl60:
77 mm
H-dimension Gl66:
83 mm
Delivery Unit:
10 pcs.
d)
200-0436.00-00000
Cam L45
Details
H-dimension Gl12:
30 mm
H-dimension Gl18:
36 mm
H-dimension Gl20:
38 mm
H-dimension Gl22:
40 mm
H-dimension Gl30:
48 mm
H-dimension Gl32:
50 mm
H-dimension Gl36:
54 mm
H-dimension Gl40:
58 mm
H-dimension Gl42:
60 mm
H-dimension Gl46:
64 mm
H-dimension Gl50:
68 mm
H-dimension Gl56:
74 mm
H-dimension Gl60:
78 mm
H-dimension Gl66:
84 mm
Delivery Unit:
10 pcs.
d)
200-0438.00-00000
Cam L45
Details
H-dimension Gl12:
32 mm
H-dimension Gl18:
38 mm
H-dimension Gl20:
40 mm
H-dimension Gl22:
42 mm
H-dimension Gl30:
50 mm
H-dimension Gl32:
52 mm
H-dimension Gl36:
56 mm
H-dimension Gl40:
60 mm
H-dimension Gl42:
62 mm
H-dimension Gl46:
66 mm
H-dimension Gl50:
70 mm
H-dimension Gl56:
76 mm
H-dimension Gl60:
80 mm
H-dimension Gl66:
86 mm
Delivery Unit:
10 pcs.
d)
200-0440.00-00000
Cam L45
Details
H-dimension Gl12:
34 mm
H-dimension Gl18:
40 mm
H-dimension Gl20:
42 mm
H-dimension Gl22:
44 mm
H-dimension Gl30:
52 mm
H-dimension Gl32:
54 mm
H-dimension Gl36:
58 mm
H-dimension Gl40:
62 mm
H-dimension Gl42:
64 mm
H-dimension Gl46:
68 mm
H-dimension Gl50:
72 mm
H-dimension Gl56:
78 mm
H-dimension Gl60:
82 mm
H-dimension Gl66:
88 mm
Delivery Unit:
10 pcs.
d)
200-0442.00-00000
Cam L45
Details
H-dimension Gl12:
36 mm
H-dimension Gl18:
42 mm
H-dimension Gl20:
44 mm
H-dimension Gl22:
46 mm
H-dimension Gl30:
54 mm
H-dimension Gl32:
56 mm
H-dimension Gl36:
60 mm
H-dimension Gl40:
64 mm
H-dimension Gl42:
66 mm
H-dimension Gl46:
70 mm
H-dimension Gl50:
74 mm
H-dimension Gl56:
80 mm
H-dimension Gl60:
84 mm
H-dimension Gl66:
90 mm
Delivery Unit:
10 pcs.
d)
200-0444.00-00000
Cam L45
Details
H-dimension Gl12:
38 mm
H-dimension Gl18:
44 mm
H-dimension Gl20:
46 mm
H-dimension Gl22:
48 mm
H-dimension Gl30:
56 mm
H-dimension Gl32:
58 mm
H-dimension Gl36:
62 mm
H-dimension Gl40:
66 mm
H-dimension Gl42:
68 mm
H-dimension Gl46:
72 mm
H-dimension Gl50:
76 mm
H-dimension Gl56:
82 mm
H-dimension Gl60:
86 mm
H-dimension Gl66:
92 mm
Delivery Unit:
10 pcs.
d)
200-0445.00-00000
Cam L45
Details
H-dimension Gl12:
39 mm
H-dimension Gl18:
45 mm
H-dimension Gl20:
47 mm
H-dimension Gl22:
49 mm
H-dimension Gl30:
57 mm
H-dimension Gl32:
59 mm
H-dimension Gl36:
63 mm
H-dimension Gl40:
67 mm
H-dimension Gl42:
69 mm
H-dimension Gl46:
73 mm
H-dimension Gl50:
77 mm
H-dimension Gl56:
83 mm
H-dimension Gl60:
87 mm
H-dimension Gl66:
93 mm
Delivery Unit:
10 pcs.
d)
200-0447.00-00000
Cam L45
Details
H-dimension Gl12:
41 mm
H-dimension Gl18:
47 mm
H-dimension Gl20:
49 mm
H-dimension Gl22:
51 mm
H-dimension Gl30:
59 mm
H-dimension Gl32:
61 mm
H-dimension Gl36:
65 mm
H-dimension Gl40:
69 mm
H-dimension Gl42:
71 mm
H-dimension Gl46:
75 mm
H-dimension Gl50:
79 mm
H-dimension Gl56:
85 mm
H-dimension Gl60:
89 mm
H-dimension Gl66:
95 mm
Delivery Unit:
10 pcs.
d)
200-0450.00-00000
Cam L45
Details
H-dimension Gl12:
44 mm
H-dimension Gl18:
50 mm
H-dimension Gl20:
52 mm
H-dimension Gl22:
54 mm
H-dimension Gl30:
62 mm
H-dimension Gl32:
64 mm
H-dimension Gl36:
68 mm
H-dimension Gl40:
72 mm
H-dimension Gl42:
74 mm
H-dimension Gl46:
78 mm
H-dimension Gl50:
82 mm
H-dimension Gl56:
88 mm
H-dimension Gl60:
92 mm
H-dimension Gl66:
98 mm
Delivery Unit:
10 pcs.
d)
200-0453.00-00000
Cam L45
Details
H-dimension Gl12:
47 mm
H-dimension Gl18:
53 mm
H-dimension Gl20:
55 mm
H-dimension Gl22:
57 mm
H-dimension Gl30:
65 mm
H-dimension Gl32:
67 mm
H-dimension Gl36:
71 mm
H-dimension Gl40:
75 mm
H-dimension Gl42:
77 mm
H-dimension Gl46:
81 mm
H-dimension Gl50:
85 mm
H-dimension Gl56:
91 mm
H-dimension Gl60:
95 mm
H-dimension Gl66:
101 mm
Delivery Unit:
10 pcs.
d)
200-0455.00-00000
Cam L45
Details
H-dimension Gl12:
49 mm
H-dimension Gl18:
55 mm
H-dimension Gl20:
57 mm
H-dimension Gl22:
59 mm
H-dimension Gl30:
67 mm
H-dimension Gl32:
69 mm
H-dimension Gl36:
73 mm
H-dimension Gl40:
77 mm
H-dimension Gl42:
79 mm
H-dimension Gl46:
83 mm
H-dimension Gl50:
87 mm
H-dimension Gl56:
93 mm
H-dimension Gl60:
97 mm
H-dimension Gl66:
103 mm
Delivery Unit:
10 pcs.
d)
200-0606.00-00000
Cam L35
Details
H-dimension Gl12:
H-dimension Gl18:
6 mm
H-dimension Gl20:
8 mm
H-dimension Gl22:
10 mm
H-dimension Gl30:
18 mm
H-dimension Gl32:
20 mm
H-dimension Gl36:
24 mm
H-dimension Gl40:
28 mm
H-dimension Gl42:
30 mm
H-dimension Gl46:
34 mm
H-dimension Gl50:
38 mm
H-dimension Gl56:
44 mm
H-dimension Gl60:
48 mm
H-dimension Gl66:
54 mm
Delivery Unit:
10 pcs.
d)
200-0608.00-00000
Cam L35
Details
H-dimension Gl12:
H-dimension Gl18:
8 mm
H-dimension Gl20:
10 mm
H-dimension Gl22:
12 mm
H-dimension Gl30:
20 mm
H-dimension Gl32:
22 mm
H-dimension Gl36:
26 mm
H-dimension Gl40:
30 mm
H-dimension Gl42:
32 mm
H-dimension Gl46:
36 mm
H-dimension Gl50:
40 mm
H-dimension Gl56:
46 mm
H-dimension Gl60:
50 mm
H-dimension Gl66:
56 mm
Delivery Unit:
10 pcs.
d)
200-0610.00-00000
Cam L35
Details
H-dimension Gl12:
H-dimension Gl18:
10 mm
H-dimension Gl20:
12 mm
H-dimension Gl22:
14 mm
H-dimension Gl30:
22 mm
H-dimension Gl32:
24 mm
H-dimension Gl36:
28 mm
H-dimension Gl40:
32 mm
H-dimension Gl42:
34 mm
H-dimension Gl46:
38 mm
H-dimension Gl50:
42 mm
H-dimension Gl56:
48 mm
H-dimension Gl60:
52 mm
H-dimension Gl66:
58 mm
Delivery Unit:
10 pcs.
d)
200-0613.00-00000
Cam L35
Details
H-dimension Gl12:
7 mm
H-dimension Gl18:
13 mm
H-dimension Gl20:
15 mm
H-dimension Gl22:
17 mm
H-dimension Gl30:
25 mm
H-dimension Gl32:
27 mm
H-dimension Gl36:
31 mm
H-dimension Gl40:
35 mm
H-dimension Gl42:
37 mm
H-dimension Gl46:
41 mm
H-dimension Gl50:
45 mm
H-dimension Gl56:
51 mm
H-dimension Gl60:
55 mm
H-dimension Gl66:
61 mm
Delivery Unit:
10 pcs.
d)
200-0614.00-00000
Cam L35
Details
H-dimension Gl12:
8 mm
H-dimension Gl18:
14 mm
H-dimension Gl20:
16 mm
H-dimension Gl22:
18 mm
H-dimension Gl30:
26 mm
H-dimension Gl32:
28 mm
H-dimension Gl36:
32 mm
H-dimension Gl40:
36 mm
H-dimension Gl42:
38 mm
H-dimension Gl46:
42 mm
H-dimension Gl50:
46 mm
H-dimension Gl56:
52 mm
H-dimension Gl60:
56 mm
H-dimension Gl66:
62 mm
Delivery Unit:
10 pcs.
d)
200-0616.00-00000
Cam L35
Details
H-dimension Gl12:
10 mm
H-dimension Gl18:
16 mm
H-dimension Gl20:
18 mm
H-dimension Gl22:
20 mm
H-dimension Gl30:
28 mm
H-dimension Gl32:
30 mm
H-dimension Gl36:
34 mm
H-dimension Gl40:
38 mm
H-dimension Gl42:
40 mm
H-dimension Gl46:
44 mm
H-dimension Gl50:
48 mm
H-dimension Gl56:
54 mm
H-dimension Gl60:
58 mm
H-dimension Gl66:
64 mm
Delivery Unit:
10 pcs.
d)
200-0618.00-00000
Cam L35
Details
H-dimension Gl12:
12 mm
H-dimension Gl18:
18 mm
H-dimension Gl20:
20 mm
H-dimension Gl22:
22 mm
H-dimension Gl30:
30 mm
H-dimension Gl32:
32 mm
H-dimension Gl36:
36 mm
H-dimension Gl40:
40 mm
H-dimension Gl42:
42 mm
H-dimension Gl46:
46 mm
H-dimension Gl50:
50 mm
H-dimension Gl56:
56 mm
H-dimension Gl60:
60 mm
H-dimension Gl66:
66 mm
Delivery Unit:
10 pcs.
d)
200-0620.00-00000
Cam L35
Details
H-dimension Gl12:
14 mm
H-dimension Gl18:
20 mm
H-dimension Gl20:
22 mm
H-dimension Gl22:
24 mm
H-dimension Gl30:
32 mm
H-dimension Gl32:
34 mm
H-dimension Gl36:
38 mm
H-dimension Gl40:
42 mm
H-dimension Gl42:
44 mm
H-dimension Gl46:
48 mm
H-dimension Gl50:
52 mm
H-dimension Gl56:
58 mm
H-dimension Gl60:
62 mm
H-dimension Gl66:
68 mm
Delivery Unit:
10 pcs.
d)
200-0622.00-00000
Cam L35
Details
H-dimension Gl12:
16 mm
H-dimension Gl18:
22 mm
H-dimension Gl20:
24 mm
H-dimension Gl22:
26 mm
H-dimension Gl30:
34 mm
H-dimension Gl32:
36 mm
H-dimension Gl36:
40 mm
H-dimension Gl40:
44 mm
H-dimension Gl42:
46 mm
H-dimension Gl46:
50 mm
H-dimension Gl50:
54 mm
H-dimension Gl56:
60 mm
H-dimension Gl60:
64 mm
H-dimension Gl66:
70 mm
Delivery Unit:
10 pcs.
d)
200-0624.00-00000
Cam L35
Details
H-dimension Gl12:
18 mm
H-dimension Gl18:
24 mm
H-dimension Gl20:
26 mm
H-dimension Gl22:
28 mm
H-dimension Gl30:
36 mm
H-dimension Gl32:
38 mm
H-dimension Gl36:
42 mm
H-dimension Gl40:
46 mm
H-dimension Gl42:
48 mm
H-dimension Gl46:
52 mm
H-dimension Gl50:
56 mm
H-dimension Gl56:
62 mm
H-dimension Gl60:
66 mm
H-dimension Gl66:
72 mm
Delivery Unit:
10 pcs.
d)
200-0625.00-00000
Cam L35
Details
H-dimension Gl12:
19 mm
H-dimension Gl18:
25 mm
H-dimension Gl20:
27 mm
H-dimension Gl22:
29 mm
H-dimension Gl30:
37 mm
H-dimension Gl32:
39 mm
H-dimension Gl36:
43 mm
H-dimension Gl40:
47 mm
H-dimension Gl42:
49 mm
H-dimension Gl46:
53 mm
H-dimension Gl50:
57 mm
H-dimension Gl56:
63 mm
H-dimension Gl60:
67 mm
H-dimension Gl66:
73 mm
Delivery Unit:
10 pcs.
d)
200-0626.00-00000
Cam L35
Details
H-dimension Gl12:
20 mm
H-dimension Gl18:
26 mm
H-dimension Gl20:
28 mm
H-dimension Gl22:
30 mm
H-dimension Gl30:
38 mm
H-dimension Gl32:
40 mm
H-dimension Gl36:
44 mm
H-dimension Gl40:
48 mm
H-dimension Gl42:
50 mm
H-dimension Gl46:
54 mm
H-dimension Gl50:
58 mm
H-dimension Gl56:
64 mm
H-dimension Gl60:
68 mm
H-dimension Gl66:
74 mm
Delivery Unit:
10 pcs.
d)
200-0628.00-00000
Cam L35
Details
H-dimension Gl12:
22 mm
H-dimension Gl18:
28 mm
H-dimension Gl20:
30 mm
H-dimension Gl22:
32 mm
H-dimension Gl30:
40 mm
H-dimension Gl32:
42 mm
H-dimension Gl36:
46 mm
H-dimension Gl40:
50 mm
H-dimension Gl42:
52 mm
H-dimension Gl46:
56 mm
H-dimension Gl50:
60 mm
H-dimension Gl56:
66 mm
H-dimension Gl60:
70 mm
H-dimension Gl66:
76 mm
Delivery Unit:
10 pcs.
d)
200-0630.00-00000
Cam L35
Details
H-dimension Gl12:
24 mm
H-dimension Gl18:
30 mm
H-dimension Gl20:
32 mm
H-dimension Gl22:
34 mm
H-dimension Gl30:
42 mm
H-dimension Gl32:
44 mm
H-dimension Gl36:
48 mm
H-dimension Gl40:
52 mm
H-dimension Gl42:
54 mm
H-dimension Gl46:
58 mm
H-dimension Gl50:
62 mm
H-dimension Gl56:
68 mm
H-dimension Gl60:
72 mm
H-dimension Gl66:
78 mm
Delivery Unit:
10 pcs.
d)
200-0635.00-00000
Cam L35
Details
H-dimension Gl12:
29 mm
H-dimension Gl18:
35 mm
H-dimension Gl20:
37 mm
H-dimension Gl22:
39 mm
H-dimension Gl30:
47 mm
H-dimension Gl32:
49 mm
H-dimension Gl36:
53 mm
H-dimension Gl40:
57 mm
H-dimension Gl42:
59 mm
H-dimension Gl46:
63 mm
H-dimension Gl50:
67 mm
H-dimension Gl56:
73 mm
H-dimension Gl60:
77 mm
H-dimension Gl66:
83 mm
Delivery Unit:
10 pcs.
d)
200-0638.00-00000
Cam L35
Details
H-dimension Gl12:
32 mm
H-dimension Gl18:
38 mm
H-dimension Gl20:
40 mm
H-dimension Gl22:
42 mm
H-dimension Gl30:
50 mm
H-dimension Gl32:
52 mm
H-dimension Gl36:
56 mm
H-dimension Gl40:
60 mm
H-dimension Gl42:
62 mm
H-dimension Gl46:
66 mm
H-dimension Gl50:
70 mm
H-dimension Gl56:
76 mm
H-dimension Gl60:
80 mm
H-dimension Gl66:
86 mm
Delivery Unit:
10 pcs.
d)
200-0640.00-00000
Cam L35
Details
H-dimension Gl12:
34 mm
H-dimension Gl18:
40 mm
H-dimension Gl20:
42 mm
H-dimension Gl22:
44 mm
H-dimension Gl30:
52 mm
H-dimension Gl32:
54 mm
H-dimension Gl36:
58 mm
H-dimension Gl40:
62 mm
H-dimension Gl42:
64 mm
H-dimension Gl46:
68 mm
H-dimension Gl50:
72 mm
H-dimension Gl56:
78 mm
H-dimension Gl60:
82 mm
H-dimension Gl66:
88 mm
Delivery Unit:
10 pcs.
d)
200-0642.00-00000
Cam L35
Details
H-dimension Gl12:
36 mm
H-dimension Gl18:
42 mm
H-dimension Gl20:
44 mm
H-dimension Gl22:
46 mm
H-dimension Gl30:
54 mm
H-dimension Gl32:
56 mm
H-dimension Gl36:
60 mm
H-dimension Gl40:
64 mm
H-dimension Gl42:
66 mm
H-dimension Gl46:
70 mm
H-dimension Gl50:
74 mm
H-dimension Gl56:
80 mm
H-dimension Gl60:
84 mm
H-dimension Gl66:
90 mm
Delivery Unit:
10 pcs.
d)
200-0644.00-00000
Cam L35
Details
H-dimension Gl12:
38 mm
H-dimension Gl18:
44 mm
H-dimension Gl20:
46 mm
H-dimension Gl22:
48 mm
H-dimension Gl30:
56 mm
H-dimension Gl32:
58 mm
H-dimension Gl36:
62 mm
H-dimension Gl40:
66 mm
H-dimension Gl42:
68 mm
H-dimension Gl46:
72 mm
H-dimension Gl50:
76 mm
H-dimension Gl56:
82 mm
H-dimension Gl60:
86 mm
H-dimension Gl66:
92 mm
Delivery Unit:
10 pcs.
d)
200-9504.00-00000
3-point cam
Details
H-dimension Gl12:
H-dimension Gl18:
4 mm
H-dimension Gl20:
6 mm
H-dimension Gl22:
8 mm
H-dimension Gl30:
16 mm
H-dimension Gl32:
18 mm
H-dimension Gl36:
22 mm
H-dimension Gl40:
26 mm
H-dimension Gl42:
28 mm
H-dimension Gl46:
32 mm
H-dimension Gl50:
36 mm
H-dimension Gl56:
42 mm
H-dimension Gl60:
46 mm
H-dimension Gl66:
52 mm
Delivery Unit:
1 pc.
d)
200-9506.00-00000
3-point cam
Details
H-dimension Gl12:
H-dimension Gl18:
6 mm
H-dimension Gl20:
8 mm
H-dimension Gl22:
10 mm
H-dimension Gl30:
18 mm
H-dimension Gl32:
20 mm
H-dimension Gl36:
24 mm
H-dimension Gl40:
28 mm
H-dimension Gl42:
30 mm
H-dimension Gl46:
34 mm
H-dimension Gl50:
38 mm
H-dimension Gl56:
44 mm
H-dimension Gl60:
48 mm
H-dimension Gl66:
54 mm
Delivery Unit:
1 pc.
d)
200-9508.00-00000
3-point cam
Details
H-dimension Gl12:
H-dimension Gl18:
8 mm
H-dimension Gl20:
10 mm
H-dimension Gl22:
12 mm
H-dimension Gl30:
20 mm
H-dimension Gl32:
22 mm
H-dimension Gl36:
26 mm
H-dimension Gl40:
30 mm
H-dimension Gl42:
32 mm
H-dimension Gl46:
36 mm
H-dimension Gl50:
40 mm
H-dimension Gl56:
46 mm
H-dimension Gl60:
50 mm
H-dimension Gl66:
56 mm
Delivery Unit:
1 pc.
d)
200-9510.00-00000
3-point cam
Details
H-dimension Gl12:
H-dimension Gl18:
10 mm
H-dimension Gl20:
12 mm
H-dimension Gl22:
14 mm
H-dimension Gl30:
22 mm
H-dimension Gl32:
24 mm
H-dimension Gl36:
28 mm
H-dimension Gl40:
32 mm
H-dimension Gl42:
34 mm
H-dimension Gl46:
38 mm
H-dimension Gl50:
42 mm
H-dimension Gl56:
48 mm
H-dimension Gl60:
52 mm
H-dimension Gl66:
58 mm
Delivery Unit:
1 pc.
d)
200-9513.00-00000
3-point cam
Details
H-dimension Gl12:
7 mm
H-dimension Gl18:
13 mm
H-dimension Gl20:
15 mm
H-dimension Gl22:
17 mm
H-dimension Gl30:
25 mm
H-dimension Gl32:
27 mm
H-dimension Gl36:
31 mm
H-dimension Gl40:
35 mm
H-dimension Gl42:
37 mm
H-dimension Gl46:
41 mm
H-dimension Gl50:
45 mm
H-dimension Gl56:
51 mm
H-dimension Gl60:
55 mm
H-dimension Gl66:
61 mm
Delivery Unit:
1 pc.
d)
200-9514.00-00000
3-point cam
Details
H-dimension Gl12:
8 mm
H-dimension Gl18:
14 mm
H-dimension Gl20:
16 mm
H-dimension Gl22:
18 mm
H-dimension Gl30:
26 mm
H-dimension Gl32:
28 mm
H-dimension Gl36:
32 mm
H-dimension Gl40:
36 mm
H-dimension Gl42:
38 mm
H-dimension Gl46:
42 mm
H-dimension Gl50:
46 mm
H-dimension Gl56:
52 mm
H-dimension Gl60:
56 mm
H-dimension Gl66:
62 mm
Delivery Unit:
1 pc.
d)
200-9516.00-00000
3-point cam
Details
H-dimension Gl12:
10 mm
H-dimension Gl18:
16 mm
H-dimension Gl20:
18 mm
H-dimension Gl22:
20 mm
H-dimension Gl30:
28 mm
H-dimension Gl32:
30 mm
H-dimension Gl36:
34 mm
H-dimension Gl40:
38 mm
H-dimension Gl42:
40 mm
H-dimension Gl46:
44 mm
H-dimension Gl50:
48 mm
H-dimension Gl56:
54 mm
H-dimension Gl60:
58 mm
H-dimension Gl66:
64 mm
Delivery Unit:
1 pc.
d)
200-9518.00-00000
3-point cam
Details
H-dimension Gl12:
12 mm
H-dimension Gl18:
18 mm
H-dimension Gl20:
20 mm
H-dimension Gl22:
22 mm
H-dimension Gl30:
30 mm
H-dimension Gl32:
32 mm
H-dimension Gl36:
36 mm
H-dimension Gl40:
40 mm
H-dimension Gl42:
42 mm
H-dimension Gl46:
46 mm
H-dimension Gl50:
50 mm
H-dimension Gl56:
56 mm
H-dimension Gl60:
60 mm
H-dimension Gl66:
66 mm
Delivery Unit:
1 pc.
d)
200-9520.00-00000
3-point cam
Details
H-dimension Gl12:
14 mm
H-dimension Gl18:
20 mm
H-dimension Gl20:
22 mm
H-dimension Gl22:
24 mm
H-dimension Gl30:
32 mm
H-dimension Gl32:
34 mm
H-dimension Gl36:
38 mm
H-dimension Gl40:
42 mm
H-dimension Gl42:
44 mm
H-dimension Gl46:
48 mm
H-dimension Gl50:
52 mm
H-dimension Gl56:
58 mm
H-dimension Gl60:
62 mm
H-dimension Gl66:
68 mm
Delivery Unit:
1 pc.
d)
200-9522.00-00000
3-point cam
Details
H-dimension Gl12:
16 mm
H-dimension Gl18:
22 mm
H-dimension Gl20:
24 mm
H-dimension Gl22:
26 mm
H-dimension Gl30:
34 mm
H-dimension Gl32:
36 mm
H-dimension Gl36:
40 mm
H-dimension Gl40:
44 mm
H-dimension Gl42:
46 mm
H-dimension Gl46:
50 mm
H-dimension Gl50:
54 mm
H-dimension Gl56:
60 mm
H-dimension Gl60:
64 mm
H-dimension Gl66:
70 mm
Delivery Unit:
1 pc.
d)
200-9524.00-00000
3-point cam
Details
H-dimension Gl12:
18 mm
H-dimension Gl18:
24 mm
H-dimension Gl20:
26 mm
H-dimension Gl22:
28 mm
H-dimension Gl30:
36 mm
H-dimension Gl32:
38 mm
H-dimension Gl36:
42 mm
H-dimension Gl40:
46 mm
H-dimension Gl42:
48 mm
H-dimension Gl46:
52 mm
H-dimension Gl50:
56 mm
H-dimension Gl56:
62 mm
H-dimension Gl60:
66 mm
H-dimension Gl66:
72 mm
Delivery Unit:
1 pc.
d)
200-9525.00-00000
3-point cam
Details
H-dimension Gl12:
19 mm
H-dimension Gl18:
25 mm
H-dimension Gl20:
27 mm
H-dimension Gl22:
29 mm
H-dimension Gl30:
37 mm
H-dimension Gl32:
39 mm
H-dimension Gl36:
43 mm
H-dimension Gl40:
47 mm
H-dimension Gl42:
49 mm
H-dimension Gl46:
53 mm
H-dimension Gl50:
57 mm
H-dimension Gl56:
63 mm
H-dimension Gl60:
67 mm
H-dimension Gl66:
73 mm
Delivery Unit:
1 pc.
d)
200-9526.00-00000
3-point cam
Details
H-dimension Gl12:
20 mm
H-dimension Gl18:
26 mm
H-dimension Gl20:
28 mm
H-dimension Gl22:
30 mm
H-dimension Gl30:
38 mm
H-dimension Gl32:
40 mm
H-dimension Gl36:
44 mm
H-dimension Gl40:
48 mm
H-dimension Gl42:
50 mm
H-dimension Gl46:
54 mm
H-dimension Gl50:
58 mm
H-dimension Gl56:
64 mm
H-dimension Gl60:
68 mm
H-dimension Gl66:
74 mm
Delivery Unit:
1 pc.
d)
200-9528.00-00000
3-point cam
Details
H-dimension Gl12:
22 mm
H-dimension Gl18:
28 mm
H-dimension Gl20:
30 mm
H-dimension Gl22:
32 mm
H-dimension Gl30:
40 mm
H-dimension Gl32:
42 mm
H-dimension Gl36:
46 mm
H-dimension Gl40:
50 mm
H-dimension Gl42:
52 mm
H-dimension Gl46:
56 mm
H-dimension Gl50:
60 mm
H-dimension Gl56:
66 mm
H-dimension Gl60:
70 mm
H-dimension Gl66:
76 mm
Delivery Unit:
1 pc.
d)
200-9530.00-00000
3-point cam
Details
H-dimension Gl12:
24 mm
H-dimension Gl18:
30 mm
H-dimension Gl20:
32 mm
H-dimension Gl22:
34 mm
H-dimension Gl30:
42 mm
H-dimension Gl32:
44 mm
H-dimension Gl36:
48 mm
H-dimension Gl40:
52 mm
H-dimension Gl42:
54 mm
H-dimension Gl46:
58 mm
H-dimension Gl50:
62 mm
H-dimension Gl56:
68 mm
H-dimension Gl60:
72 mm
H-dimension Gl66:
78 mm
Delivery Unit:
1 pc.
d)
200-9532.00-00000
3-point cam
Details
H-dimension Gl12:
26 mm
H-dimension Gl18:
32 mm
H-dimension Gl20:
34 mm
H-dimension Gl22:
36 mm
H-dimension Gl30:
44 mm
H-dimension Gl32:
46 mm
H-dimension Gl36:
50 mm
H-dimension Gl40:
54 mm
H-dimension Gl42:
56 mm
H-dimension Gl46:
60 mm
H-dimension Gl50:
64 mm
H-dimension Gl56:
70 mm
H-dimension Gl60:
74 mm
H-dimension Gl66:
80 mm
Delivery Unit:
1 pc.
d)
200-9534.00-00000
3-point cam
Details
H-dimension Gl12:
28 mm
H-dimension Gl18:
34 mm
H-dimension Gl20:
36 mm
H-dimension Gl22:
38 mm
H-dimension Gl30:
46 mm
H-dimension Gl32:
48 mm
H-dimension Gl36:
52 mm
H-dimension Gl40:
56 mm
H-dimension Gl42:
58 mm
H-dimension Gl46:
62 mm
H-dimension Gl50:
66 mm
H-dimension Gl56:
72 mm
H-dimension Gl60:
76 mm
H-dimension Gl66:
82 mm
Delivery Unit:
1 pc.
d)
200-9535.00-00000
3-point cam
Details
H-dimension Gl12:
29 mm
H-dimension Gl18:
35 mm
H-dimension Gl20:
37 mm
H-dimension Gl22:
39 mm
H-dimension Gl30:
47 mm
H-dimension Gl32:
49 mm
H-dimension Gl36:
53 mm
H-dimension Gl40:
57 mm
H-dimension Gl42:
59 mm
H-dimension Gl46:
63 mm
H-dimension Gl50:
67 mm
H-dimension Gl56:
73 mm
H-dimension Gl60:
77 mm
H-dimension Gl66:
83 mm
Delivery Unit:
1 pc.
d)
200-9536.00-00000
3-point cam
Details
H-dimension Gl12:
30 mm
H-dimension Gl18:
36 mm
H-dimension Gl20:
38 mm
H-dimension Gl22:
40 mm
H-dimension Gl30:
48 mm
H-dimension Gl32:
50 mm
H-dimension Gl36:
54 mm
H-dimension Gl40:
58 mm
H-dimension Gl42:
60 mm
H-dimension Gl46:
64 mm
H-dimension Gl50:
68 mm
H-dimension Gl56:
74 mm
H-dimension Gl60:
78 mm
H-dimension Gl66:
84 mm
Delivery Unit:
1 pc.
d)
200-9538.00-00000
3-point cam
Details
H-dimension Gl12:
32 mm
H-dimension Gl18:
38 mm
H-dimension Gl20:
40 mm
H-dimension Gl22:
42 mm
H-dimension Gl30:
50 mm
H-dimension Gl32:
52 mm
H-dimension Gl36:
56 mm
H-dimension Gl40:
60 mm
H-dimension Gl42:
62 mm
H-dimension Gl46:
66 mm
H-dimension Gl50:
70 mm
H-dimension Gl56:
76 mm
H-dimension Gl60:
80 mm
H-dimension Gl66:
86 mm
Delivery Unit:
1 pc.
d)
200-9540.00-00000
3-point cam
Details
H-dimension Gl12:
34 mm
H-dimension Gl18:
40 mm
H-dimension Gl20:
42 mm
H-dimension Gl22:
44 mm
H-dimension Gl30:
52 mm
H-dimension Gl32:
54 mm
H-dimension Gl36:
58 mm
H-dimension Gl40:
62 mm
H-dimension Gl42:
64 mm
H-dimension Gl46:
68 mm
H-dimension Gl50:
72 mm
H-dimension Gl56:
78 mm
H-dimension Gl60:
82 mm
H-dimension Gl66:
88 mm
Delivery Unit:
1 pc.
d)
200-9542.00-00000
3-point cam
Details
H-dimension Gl12:
36 mm
H-dimension Gl18:
42 mm
H-dimension Gl20:
44 mm
H-dimension Gl22:
46 mm
H-dimension Gl30:
54 mm
H-dimension Gl32:
56 mm
H-dimension Gl36:
60 mm
H-dimension Gl40:
64 mm
H-dimension Gl42:
66 mm
H-dimension Gl46:
70 mm
H-dimension Gl50:
74 mm
H-dimension Gl56:
80 mm
H-dimension Gl60:
84 mm
H-dimension Gl66:
90 mm
Delivery Unit:
1 pc.
d)
200-9544.00-00000
3-point cam
Details
H-dimension Gl12:
38 mm
H-dimension Gl18:
44 mm
H-dimension Gl20:
46 mm
H-dimension Gl22:
48 mm
H-dimension Gl30:
56 mm
H-dimension Gl32:
58 mm
H-dimension Gl36:
62 mm
H-dimension Gl40:
66 mm
H-dimension Gl42:
68 mm
H-dimension Gl46:
72 mm
H-dimension Gl50:
76 mm
H-dimension Gl56:
82 mm
H-dimension Gl60:
86 mm
H-dimension Gl66:
92 mm
Delivery Unit:
1 pc.
d)
200-9545.00-00000
3-point cam 2 parts
Details
H-dimension Gl12:
39 mm
H-dimension Gl18:
45 mm
H-dimension Gl20:
47 mm
H-dimension Gl22:
49 mm
H-dimension Gl30:
57 mm
H-dimension Gl32:
59 mm
H-dimension Gl36:
63 mm
H-dimension Gl40:
67 mm
H-dimension Gl42:
69 mm
H-dimension Gl46:
73 mm
H-dimension Gl50:
77 mm
H-dimension Gl56:
83 mm
H-dimension Gl60:
87 mm
H-dimension Gl66:
93 mm
Delivery Unit:
1 pc.
d)
200-9547.00-00000
3-point cam 2 parts
Details
H-dimension Gl12:
41 mm
H-dimension Gl18:
47 mm
H-dimension Gl20:
49 mm
H-dimension Gl22:
51 mm
H-dimension Gl30:
59 mm
H-dimension Gl32:
61 mm
H-dimension Gl36:
65 mm
H-dimension Gl40:
69 mm
H-dimension Gl42:
71 mm
H-dimension Gl46:
75 mm
H-dimension Gl50:
79 mm
H-dimension Gl56:
85 mm
H-dimension Gl60:
89 mm
H-dimension Gl66:
95 mm
Delivery Unit:
1 pc.
d)
200-9550.00-00000
3-point cam 2 parts
Details
H-dimension Gl12:
44 mm
H-dimension Gl18:
50 mm
H-dimension Gl20:
52 mm
H-dimension Gl22:
54 mm
H-dimension Gl30:
62 mm
H-dimension Gl32:
64 mm
H-dimension Gl36:
68 mm
H-dimension Gl40:
72 mm
H-dimension Gl42:
74 mm
H-dimension Gl46:
78 mm
H-dimension Gl50:
82 mm
H-dimension Gl56:
88 mm
H-dimension Gl60:
92 mm
H-dimension Gl66:
98 mm
Delivery Unit:
1 pc.
d)
200-9599.00-00000
2-point cam
d)
200-44LL.00-Hxxmm
Cam, variable, with ramp
d)
200-54LL.00-Hxxmm
Cam, variable, without ramp
e)
200-0902.00-00000
Flat external seal Ø17mm / 22mm
Details
Name:
Flat external seal Ø17mm / 22mm
Material:
Sponge rubber
Delivery Unit:
10 pcs.
Product Configuration
Selected version
| Product number | 200-5508.00-00060 |
| Delivery Unit: | 10 pcs. |
| Length: | 60 mm |
Selected additional products
| [none] |
