[7-211]

Corner Hinge Pr04 180° Stainless Steel

ICON_HINGE_SERIES_Pr04
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_LIFT_OFF
ICON_EDELSTAHL
ICON_180_GRAD
7_211

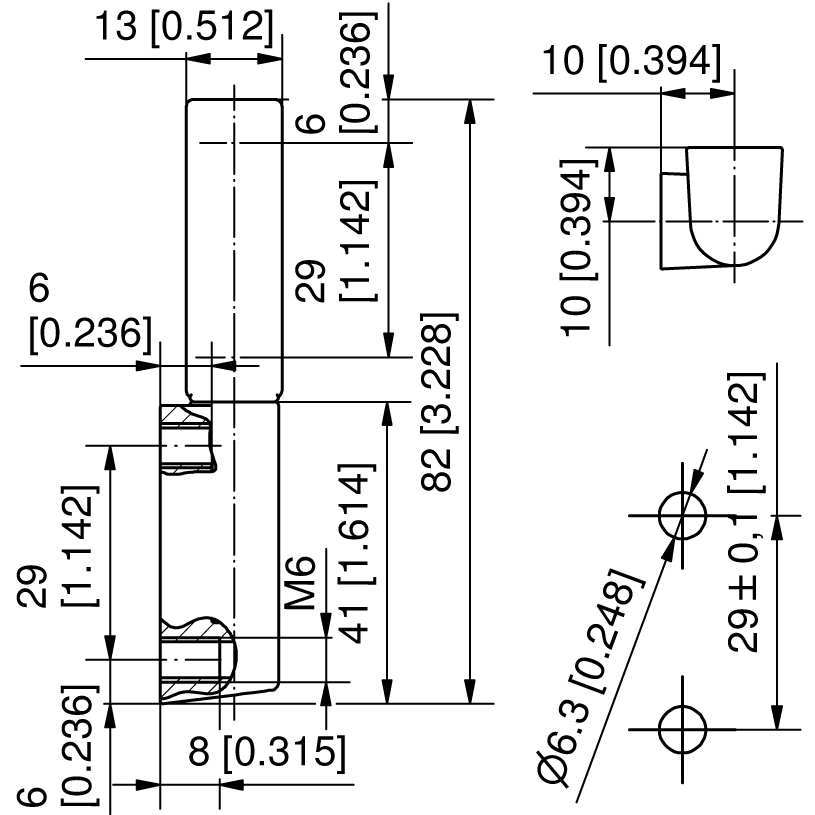

E_7-211
7_211
E_7-211

Advantages

  • For surface mounted doors.
  • Hinge visible.
  • RH / LH application.
  • 180° Opening angle.
  • Screw-on.
  • Lift-off.

Material

  • Corner hinge: AISI 316, satin polished
  • Pin: stainless steel

Remarks

Please select version Product data sheet

Available versions

Corner hinge

Product number
Length L
Pin version
Installation type
Delivery Unit
224-9201.00-00000
82 mm
pressed in
screw-on
10 pcs.
