[7-205]

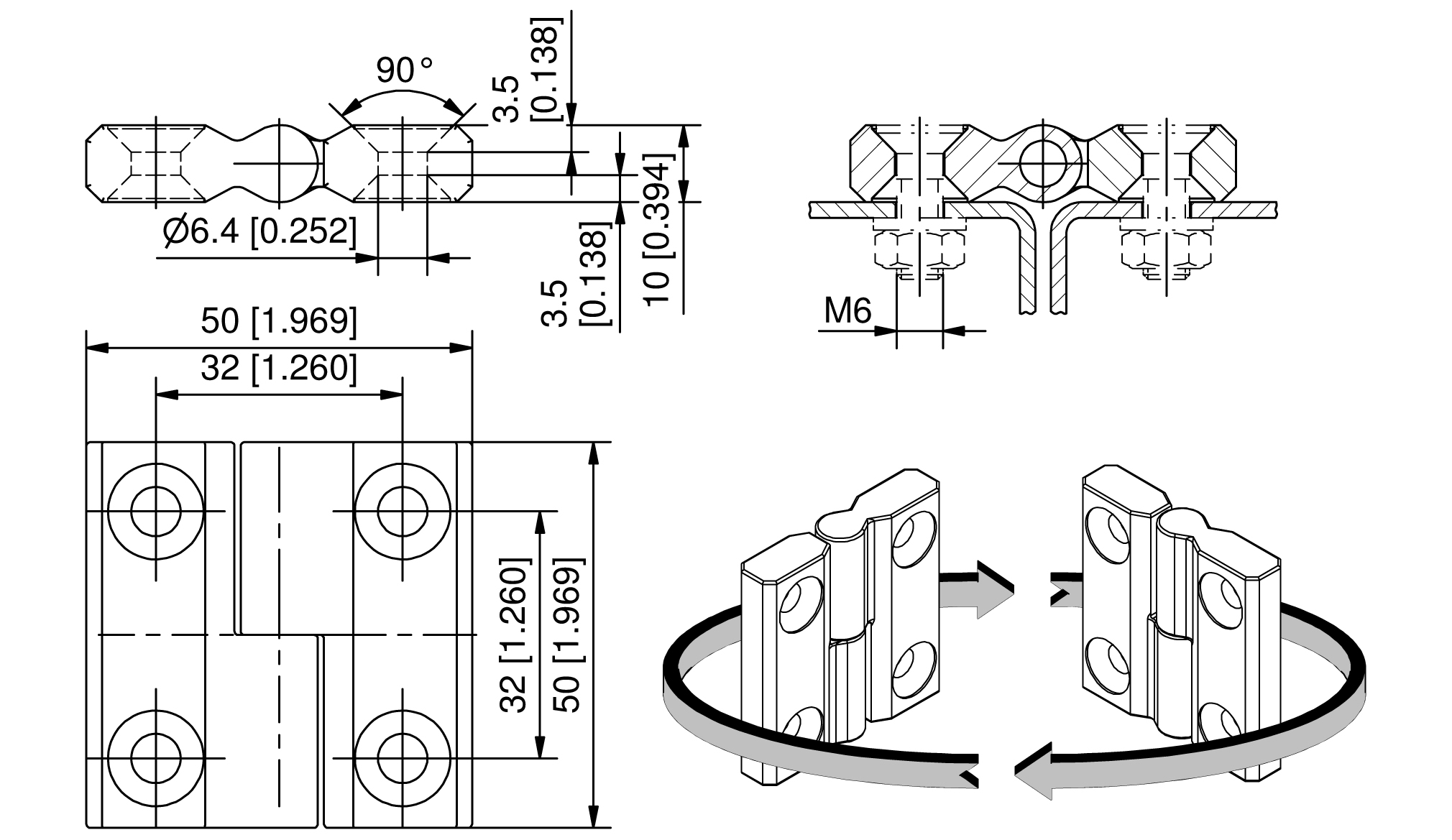

Hinge 50x50 Pr01 125° Stainless Steel

ICON_HINGE_SERIES_Pr01
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_LIFT_OFF
ICON_EDELSTAHL
ICON_125_GRAD
7_205
E_7-205
7_205
E_7-205

Advantages

  • For nested doors.
  • Hinge visible.
  • 125° Opening angle.
  • Lift-off.
  • The double symmetrical layout allows RH and LH application.

Material

  • Hinge-parts and pin: AISI 316

Remarks

Please select version Product data sheet

Available versions

Hinge

Product number
Width W
Height H
Pin version
Installation type
Delivery Unit
218-9119.00-00000
50 mm
50 mm
pressed in
screw-on
10 pcs.
