[7-166]

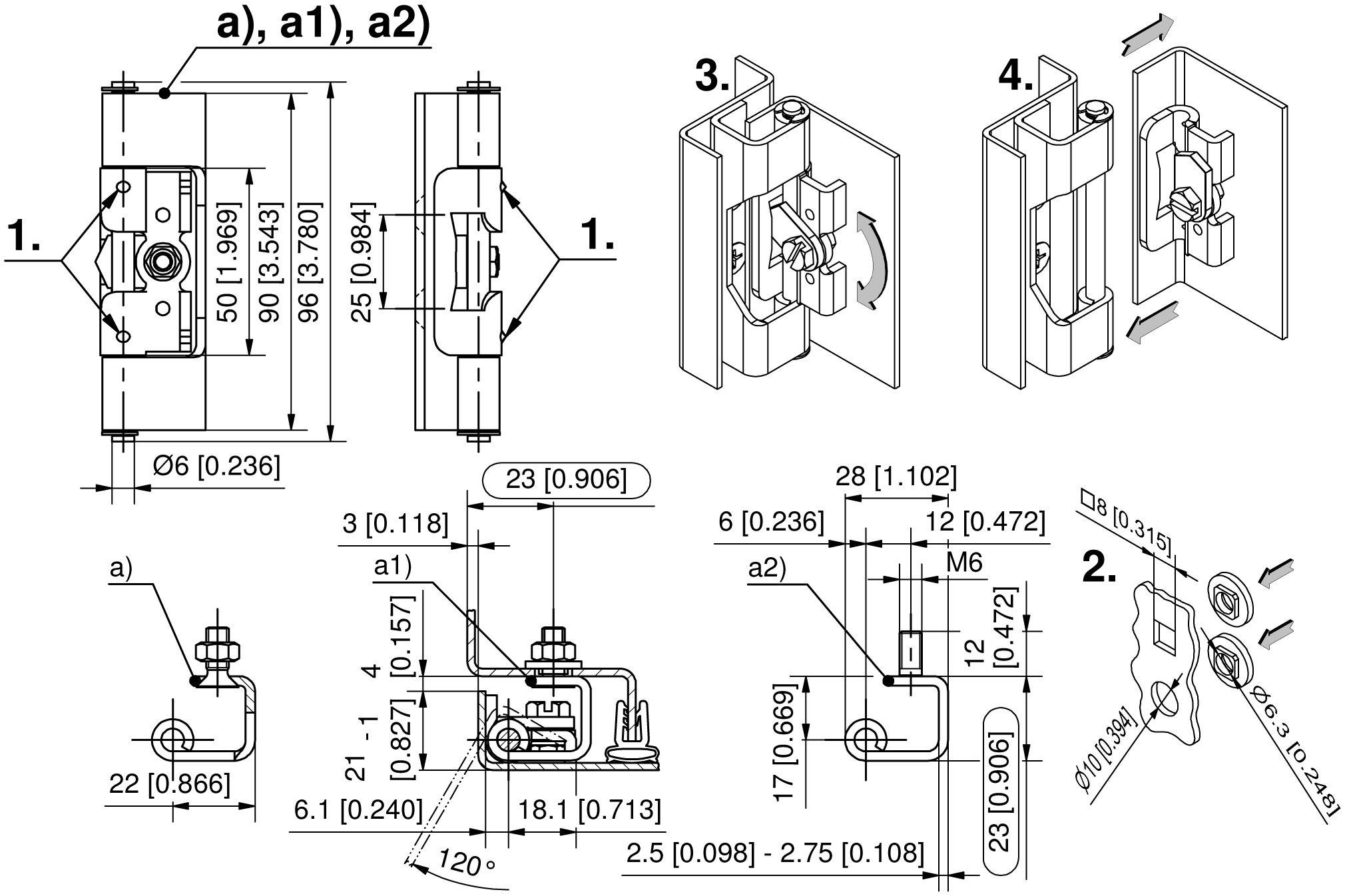

Concealed Hinge Pr03 120° Stainless Steel
Available versions
Concealed hinge
Product number
Frame-part
cutout in frame
Pin version
Installation type
Delivery Unit
a)
243-9206.00-00000
with countersunk holes for M6
Ø6.3 or M6
with groove incl. locking washer DIN6799
screw- / weld-on
10 pcs.
a1)
243-9207.00-00000
with countersunk holes for M6 + fastening washer
□8 or Ø10
with groove incl. locking washer DIN6799
screw- / weld-on
10 pcs.
a2)
243-9210.00-00000
with studs for M6
Ø6.3, □8, Ø10
with groove incl. locking washer DIN6799
screw- / weld-on
10 pcs.
