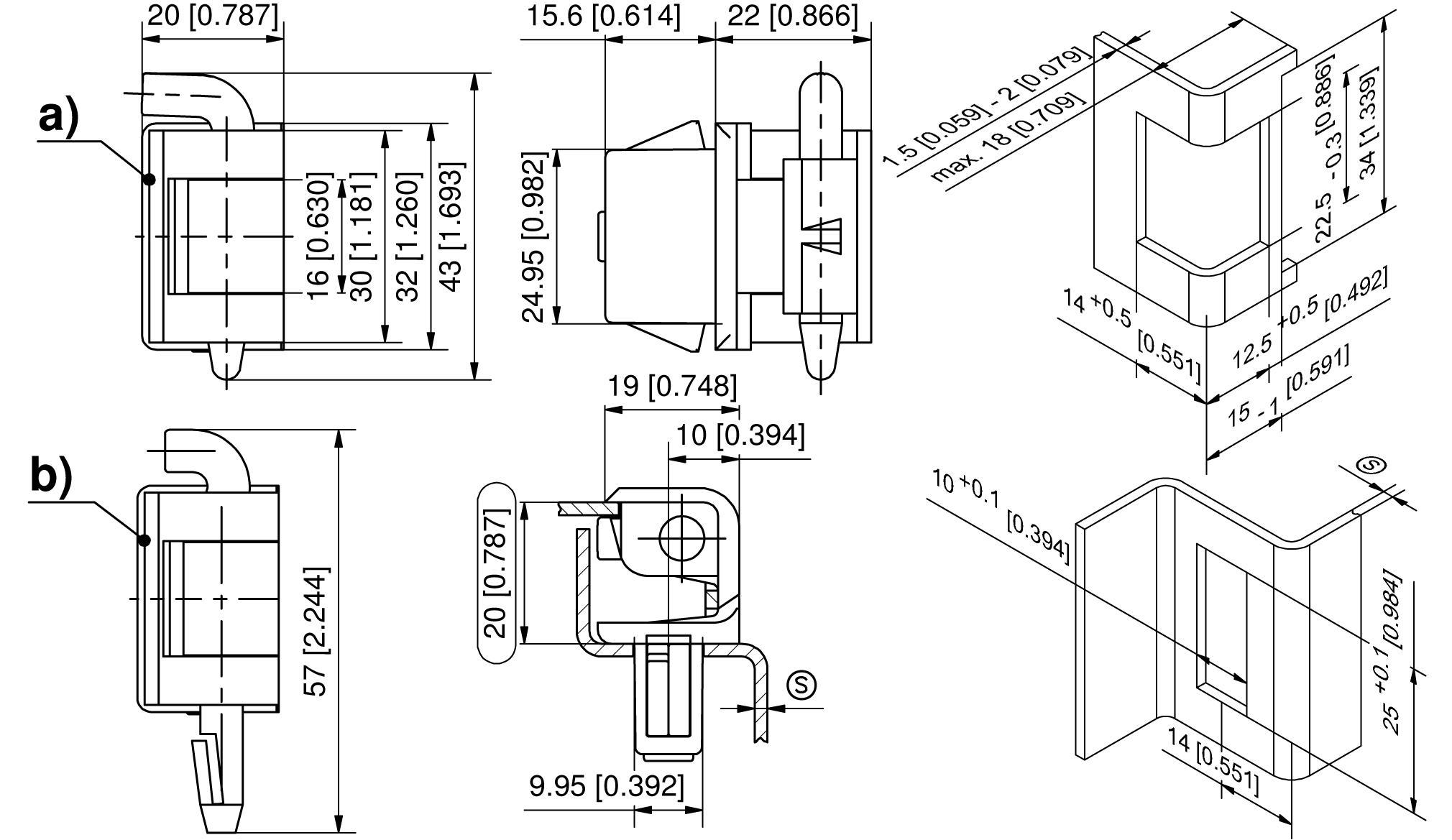

[7-152DST]
DST Hinge Pr05 180° Stainless steel
Available versions
Hinge
Product number
Clamping range (S)
Material pin
Pin length L
Pin version
Installation type
Delivery Unit
a)
412-9063.00-01217
1.2 - 1.7 mm
AISI 316
43 mm
loose
tool-less
10 pcs.
b)
412-9064.00-01217
1.2 - 1.7 mm
POM
57 mm
self-locking
tool-less
10 pcs.
a)
412-9063.00-01722
1.7 - 2.2 mm
AISI 316
43 mm
loose
tool-less
10 pcs.
b)
412-9064.00-01722
1.7 - 2.2 mm
POM
57 mm
self-locking
tool-less
10 pcs.
