Concealed Hinge Pr03 115° Stainless Steel

ICON_HINGE_SERIES_Pr03
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_EDELSTAHL
ICON_115_GRAD
7_139
E_7-139
7_139
E_7-139

Advantages

  • For surface mounted doors.
  • Hinge concealed.
  • Door bending 16mm.
  • RH / LH application.
  • 115° Opening angle.
  • Frame-part with force fitted stud M5 x 12.
  • Door-part weld on.

Material

  • Frame-part and door-part: AISI 304
  • Knurled pin: AISI 303
  • Stud: AISI 410

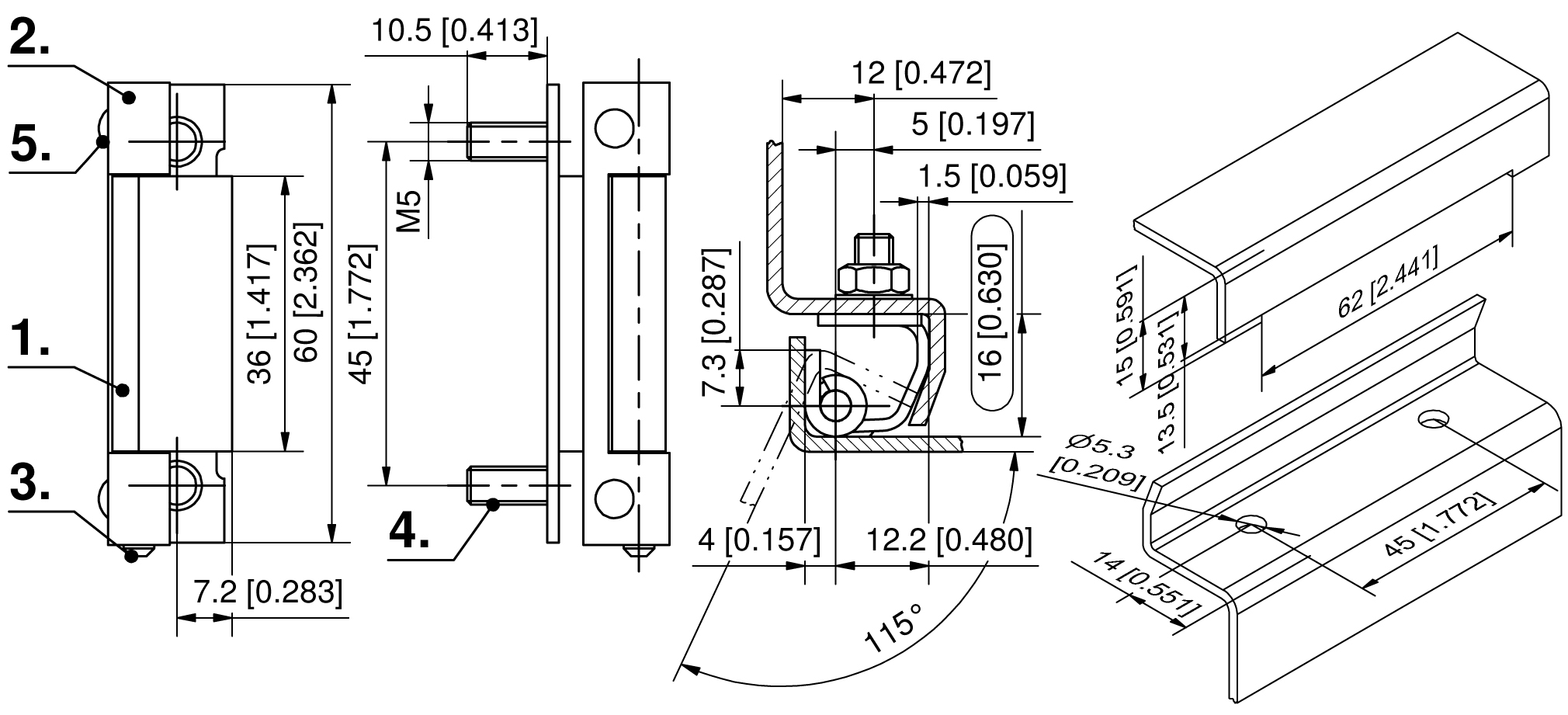

Remarks

1. frame-part
2. door-part with welding projections ISO 8167-P5
3. pin
4. threaded stud M5 x 12
5. welding spots
Please select version Product data sheet

Available versions

Concealed hinge

Product number
Pin version
Installation type
Delivery Unit
216-9033.00-00000
pressed in
screw- / weld-on
10 pcs.
