Hinge Pr05 180° Stainless Steel

ICON_HINGE_SERIES_Pr05
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_EDELSTAHL
ICON_180_GRAD
7_135
E_7-135
7_135
E_7-135

Advantages

  • For surface mounted doors for adjacent cabinets.
  • Hinge partly visible.
  • Door bending 20mm.
  • RH / LH application.
  • 180° Opening angle.
  • The POM pin is self-locking.

Material

  • Hinge-parts: AISI 316
  • Pin: POM, natural or stainless steel

Remarks

(S) Door-thickness 1.5-2mm
Please select version Product data sheet

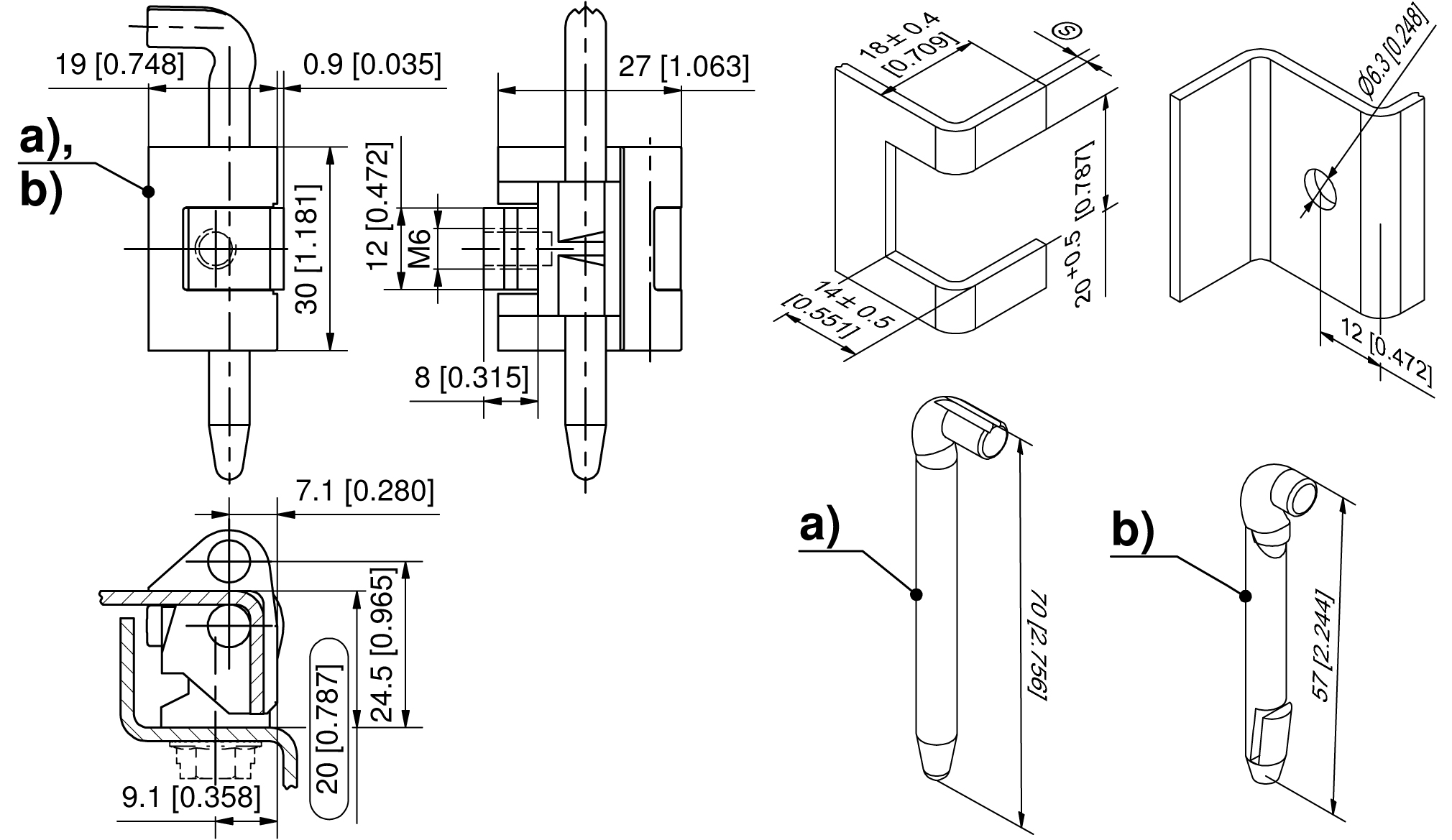

Available versions

Hinge


Product number
Material pin
Pin length L
Pin version
Installation type
Delivery Unit
a)
212-9701.00-00000
stainless steel
70 mm
loose
screw-on
10 pcs.
b)
212-9702.00-00000
POM
57 mm
self-locking
screw-on
10 pcs.
