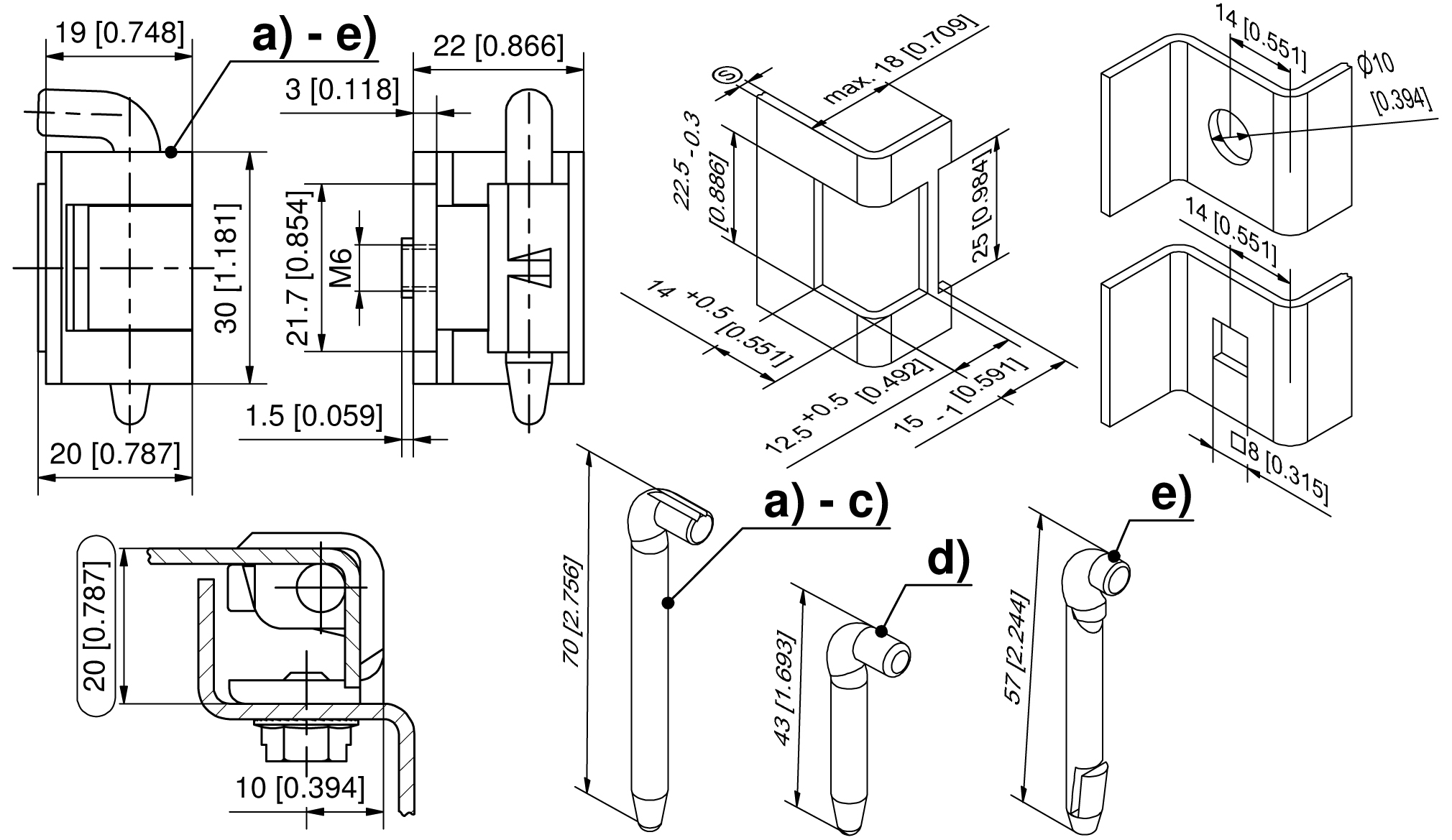

[7-132]
Hinge Pr05 180° Stainless Steel
Available versions
Hinge
Product number
Door-thickness (S)
Material pin
Pin length L
Pin version
Installation type
Delivery Unit
a)
212-9707.00-00000
1.5 mm - 1.5 mm
AISI 301
70 mm
loose
screw-on
10 pcs.
b)
212-9716.00-00000
1.5 mm - 1.5 mm
AISI 316
70 mm
loose
screw-on
10 pcs.
c)
212-9714.00-00000
2 mm - 2 mm
AISI 316
70 mm
loose
screw-on
10 pcs.
d)
212-9705.00-00000
2 mm - 2 mm
AISI 304
43 mm
loose
screw-on
10 pcs.
e)
212-9706.00-00000
2 mm - 2 mm
POM
57 mm
self-locking
screw-on
10 pcs.
