[7-131]

Hinge Pr05 180° Stainless Steel

ICON_HINGE_SERIES_Pr05
ICON_ROHS
ICON_LIFT_OFF
ICON_EDELSTAHL
ICON_270_GRAD
ICON_180_GRAD
ICON_TUERANSCHLAG_LR
7_131
E_7-131
7_131
E_7-131

Advantages

  • For surface mounted doors.
  • Hinge partly visible.
  • Lift-off.
  • Door bending 20mm.
  • RH and LH version.
  • Opening angle 180° for adjacent cabinets.
  • Opening angle 270° for single cabinets.

Material

  • Frame- and door-part: AISI 304
  • Pin: AISI 303
  • Spacer: POM

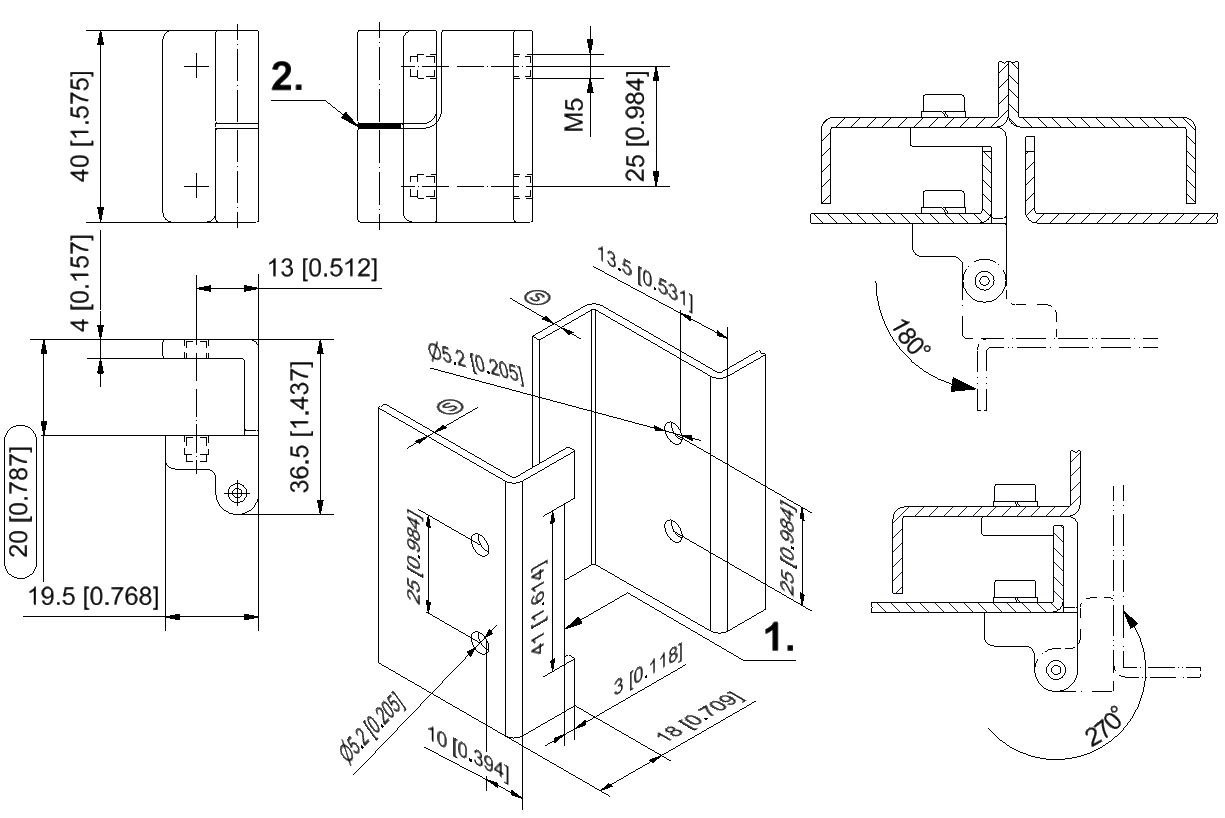

Remarks

Fastening with screws M5
1. door notch
2. spacer
Please select version Product data sheet

Available versions

Hinge

Product number
Version
Pin version
Installation type
Delivery Unit
212-9093.00-00000
RH version
pressed in
screw-on
10 pcs.
212-9094.00-00000
LH version
pressed in
screw-on
10 pcs.
