Corner Hinge Pr04 180° Stainless Steel

ICON_HINGE_SERIES_Pr04
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_EDELSTAHL
ICON_180_GRAD
7_110_7_120

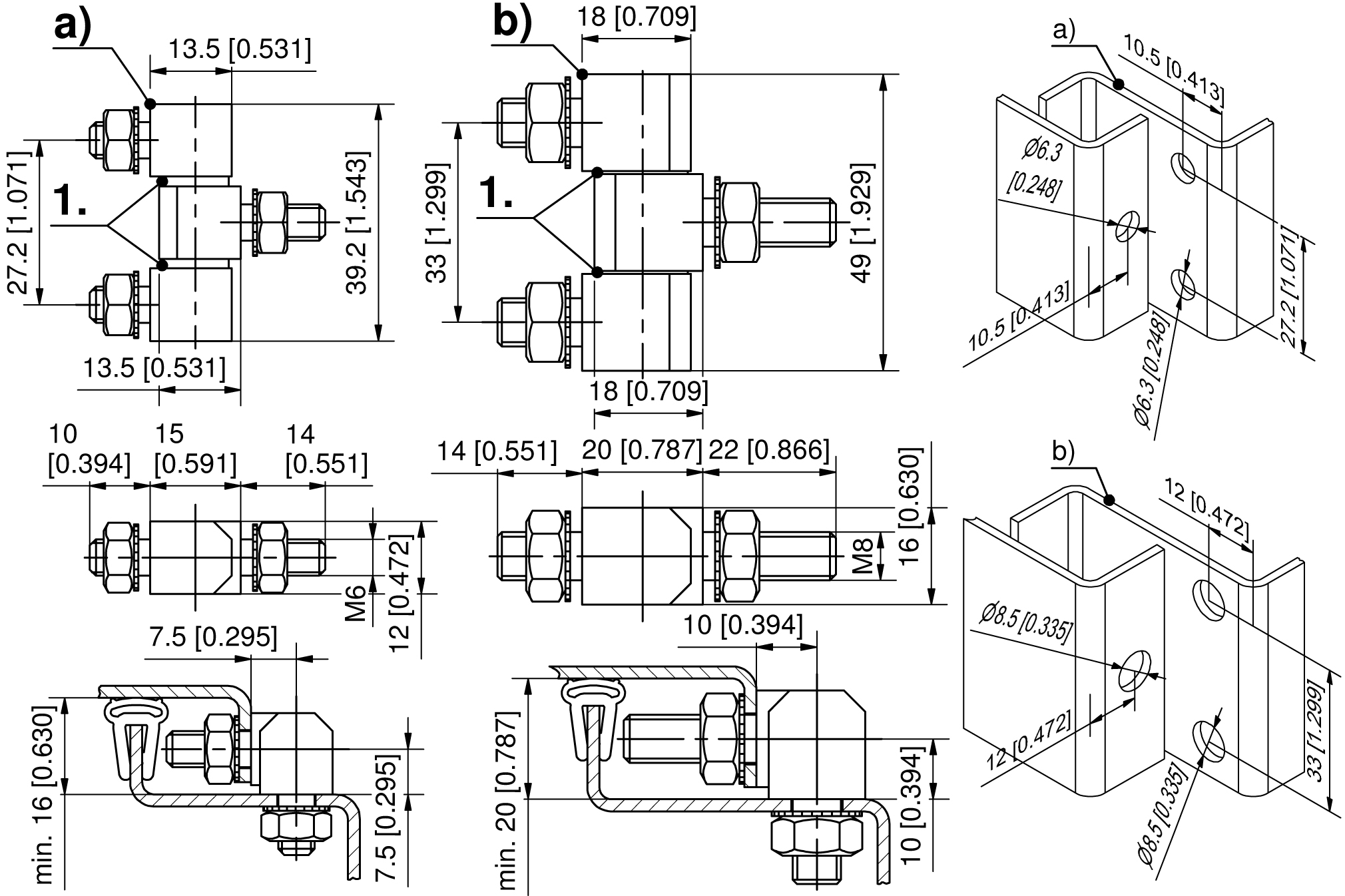

E_7-110_7-120
7_110_7_120
E_7-110_7-120

Advantages

  • For surface mounted doors.
  • Hinge visible.
  • 180° Opening angle.

Material

  • Hinge parts: AISI 304
  • Pin: AISI 303
  • Nuts and washers: stainless steel

Remarks

3 nuts and serrated washers are included.
Fastening M6 or M8.

1. bearing washers
Please select version Product data sheet

Available versions

Corner hinge


Product number
Pin version
Installation type
Delivery Unit
a)
219-9002.00-00000
loose
screw-on M6
10 pcs.
b)
219-9105.00-00000
loose
screw-on M8
10 pcs.
