DST Hinge Pr05 180°

ICON_HINGE_SERIES_Pr05
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_WERKZEUGLOS
ICON_180_GRAD
ICON_DST
ICON_IP65

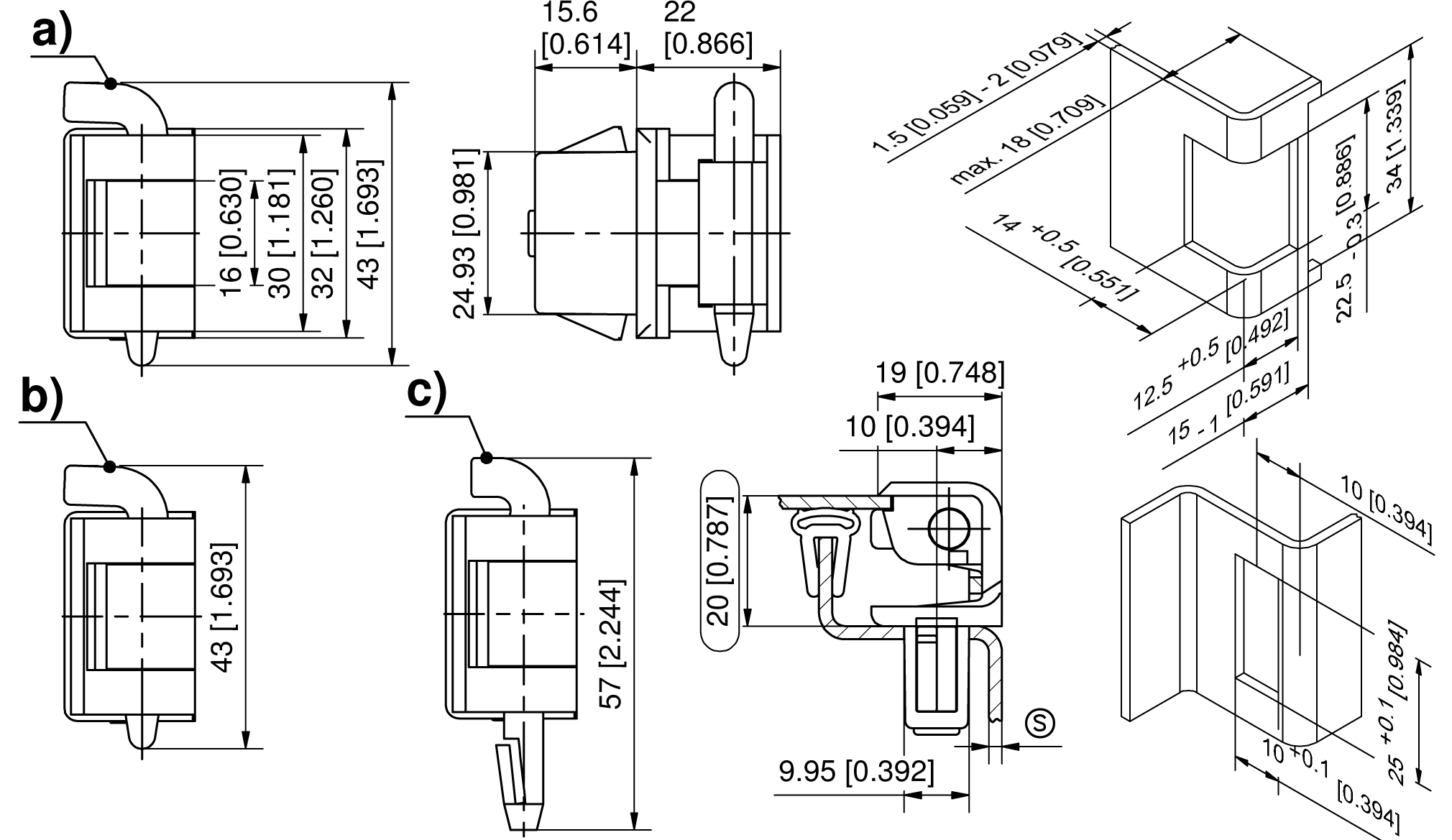

4_152DST
E_4-152DST
4_152DST
E_4-152DST

Advantages

  • Hinge with DIRAK-SNAP-Technology.
  • For surface mounted doors for single cabinets.
  • Hinge partly visible.
  • Door bending 20mm.
  • RH / LH application.
  • 180° Opening angle.
  • Lift-off.
  • Installation of the frame-part by simple tool-less  push into the cutout.
  • IP65 according to DIN EN 60529 (optional).

Material

  • Frame- and door-part: zinc die, matte black
  • Pin: steel, zinc plated, AISI 304 or POM
  • Snap wedges: sintered steel, zinc plated

Remarks

For light applications only!

Selected version

Product number 412-9061.00-01722
Delivery Unit: 10 pcs.
Installation type: tool-less
Material pin: POM
Pin version: self-locking
Pin length L: 57 mm
Clamping range (S): 1.7 mm - 2.2 mm
CAD model
Remove selection Product data sheet

Related Products

Function extension



Article no.
Name

839-3770.40-02120
O-ring 21 x 2.0mm
Details
Name:
O-ring 21 x 2.0mm
Material:
NBR
Delivery Unit:
1 pc.
Open product in new tab

Accessories



Article no.
Name

292-0403.06-07035
Cutout-cover
Details
Cutout:
25 x 10 mm
Material:
neoprene 70°
Surface:
light grey RAL 7035
Delivery Unit:
10 pcs.
Open product in new tab
292-0403.06-09005
Cutout-cover
Details
Cutout:
25 x 10 mm
Material:
neoprene 70°
Surface:
black
Delivery Unit:
10 pcs.
Open product in new tab
292-0306.80-02530
Tool for uninstallation
Details
Material:
stainless steel
Surface:
-
Delivery Unit:
1 pc.
Open product in new tab

Product Configuration

Selected version

Product number 412-9061.00-01722
Delivery Unit: 10 pcs.
Installation type: tool-less
Material pin: POM
Pin version: self-locking
Pin length L: 57 mm
Clamping range (S): 1.7 mm - 2.2 mm

Selected additional products

[none]
