[4-703]

Torque Hinge Pr01 270°

ICON_HINGE_SERIES_Pr01
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_270_GRAD
4_703

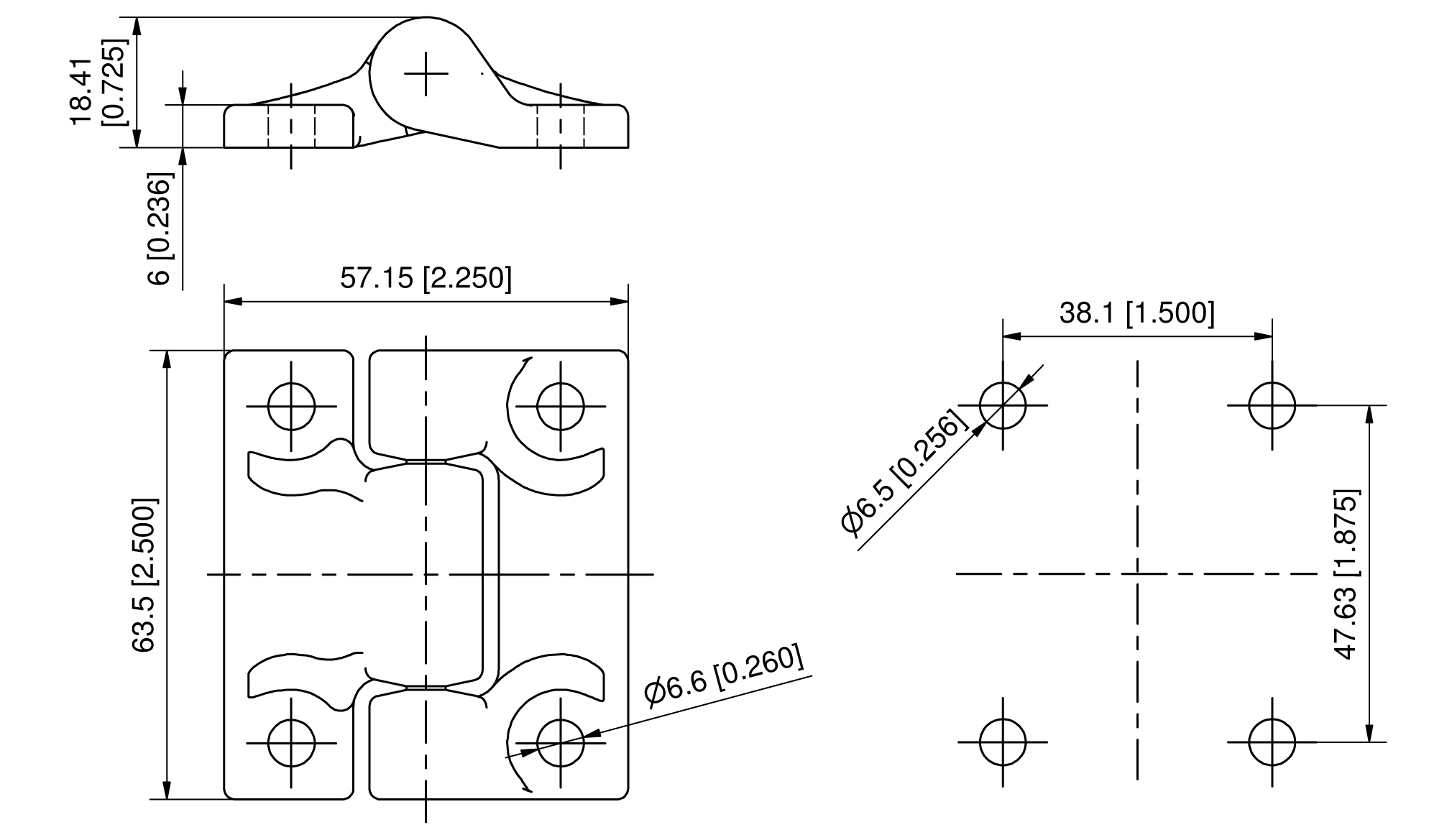

E_4-703
4_703
E_4-703

Advantages

  • Hinge with constant torque throughout its full range of motion.
  • For nested doors.
  • Hinge visible.
  • RH / LH application.
  • 270° Opening angle.
  • Free from any detent.
  • Springback typically < 1°.
  • Life of > 10,000 cycles.

Material

  • Housing: PA
  • Shaft and torque clips: hardened steel

Remarks

Fastening: for example with M4 screws DIN-EN-ISO 4762.

Price and delivery time on request!
Please select version Product data sheet

Available versions

Torque hinge

Product number
NM (both directions)
Pin version
Installation type
Delivery Unit
703-9003.00-00140
1,38
pressed in
screw-on
10 pcs.
703-9003.00-00220
2,16
pressed in
screw-on
10 pcs.
