[4-394]

Pin Hinge Pr02 120°

ICON_HINGE_SERIES_Pr02

ICON_TUERANSCHLAG_LR

ICON_WERKZEUGLOS

Advantages

Pin hinge with spring-loaded handle.
For nested doors.
Hinge concealed.
RH / LH application.
120° Opening angle.
Flexible use for material thicknesses up to 4mm.
The spring loaded pin allows for an easy and quick installation and removal of the door.
The installation is tool-less with a simple push into the appropriate cutout.
Usable also as locking pin.

Material

Pin: steel, zinc plated
Handle: PA, green
Spacer: PA, black

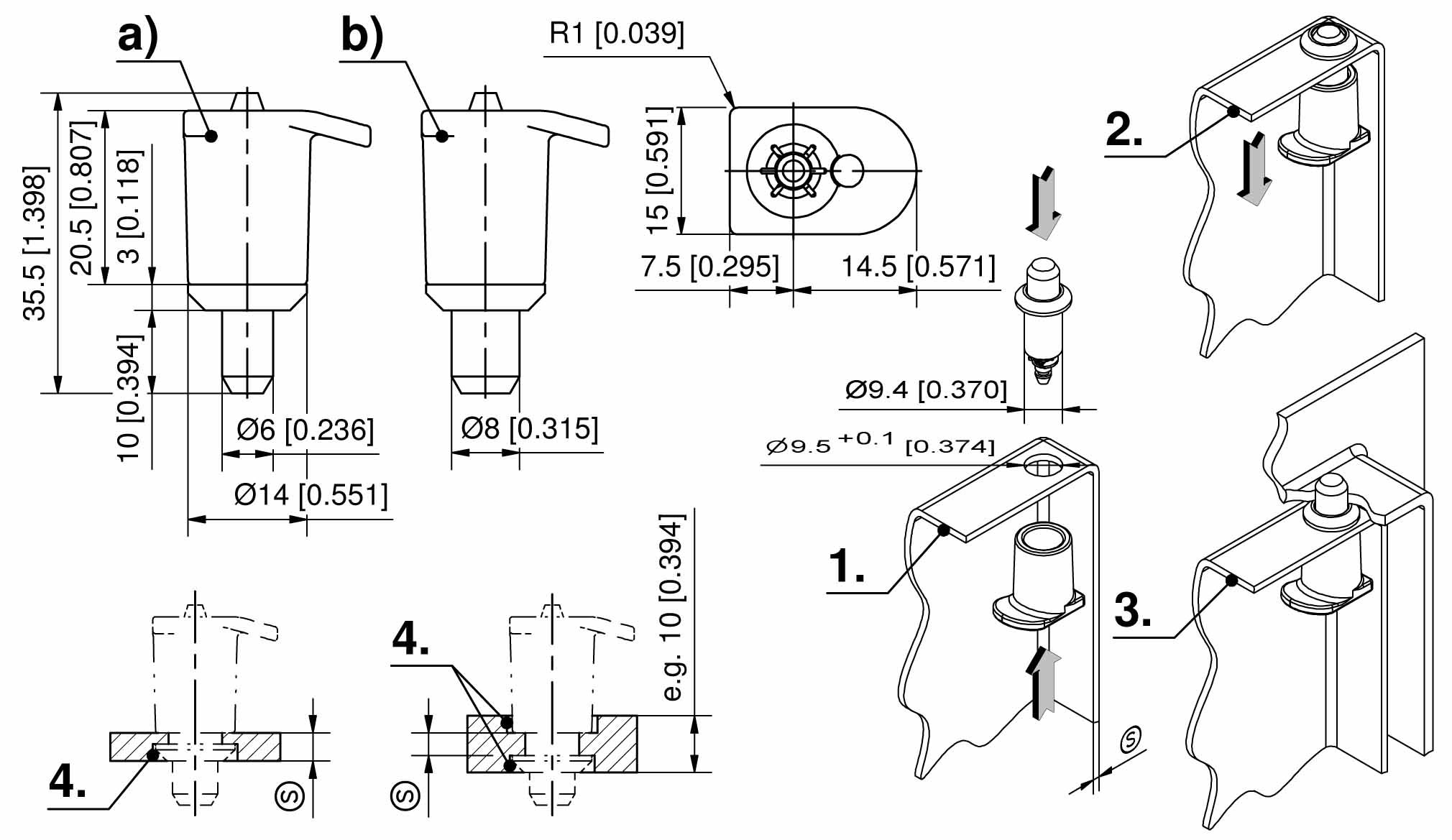

Remarks

1. assembled without tools by pressing the locking pin into the handle.
2. disassembling the door.
3. door installed.
4. by reducing the material in the cutout, the distance between the two components can be adjusted.

On request also available with another handle (see 6-211).

Available versions

Pin hinge

Product number

Clamping range (S)

Pin diameter

Cutout pin

Pin version

Installation type

Delivery Unit

245-9312.00-00000

Ø 6,1 + 0,1 mm

245-9313.00-00000

Ø 8,1 + 0,1 mm
