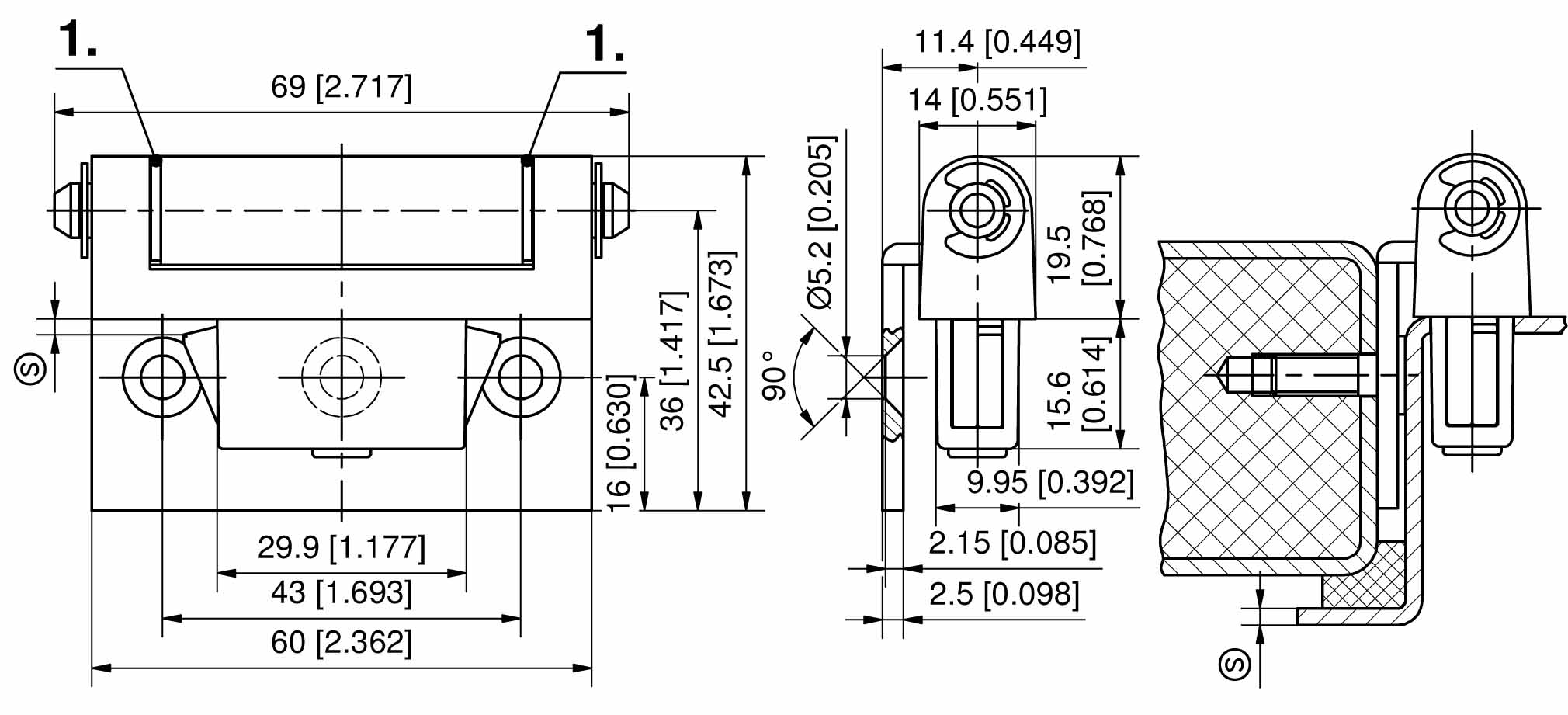

[4-355DST]
DST Hinge Pr01 180°
Available versions
Hinge
Product number
Clamping range (S)
Pin length L
Material pin
Pin version
Installation type
Delivery Unit
417-9103.00-00015
1.2 - 1.7 mm
69 mm
steel, zinc plated
with groove incl. locking washer DIN6799
tool-less / screw-on
10 pcs.
417-9103.00-00020
1.7 - 2.2 mm
69 mm
steel, zinc plated
with groove incl. locking washer DIN6799
tool-less / screw-on
10 pcs.
417-9103.00-00025
2.2 - 2.7 mm
69 mm
steel, zinc plated
with groove incl. locking washer DIN6799
tool-less / screw-on
10 pcs.
417-9103.00-00030
2.7 - 3.2 mm
69 mm
steel, zinc plated
with groove incl. locking washer DIN6799
tool-less / screw-on
10 pcs.
417-9108.00-00015
1.2 - 1.7 mm
60 mm
stainless steel
pressed in
tool-less / screw-on
10 pcs.
417-9108.00-00020
1.7 - 2.2 mm
60 mm
stainless steel
pressed in
tool-less / screw-on
10 pcs.
417-9108.00-00025
2.2 - 2.7 mm
60 mm
stainless steel
pressed in
tool-less / screw-on
10 pcs.
417-9108.00-00030
2.7 - 3.2 mm
60 mm
stainless steel
pressed in
tool-less / screw-on
10 pcs.
