[4-350DST]

DST 3D Hinge, adjustable Pr01 180°

Advantages

3D hinge with DIRAK-SNAP-Technology.
Adjustable in: height ±2mm / width ±2mm / depth ±2mm.
For nested doors.
Hinge visible.
180° Opening angle.
RH and LH version.
The installation of the frame part is tool-less, achieved by a simple push into the appropriate cutouts.

Material

Frame- and door-part: zinc die, black
Base-plate: steel, zinc plated
Pin: brass, untreated, stainless steel on request
Snap wedges: sintered metal, coated
Bushings: PA, natural
Studs, bearing washer and c-clips: stainless steel

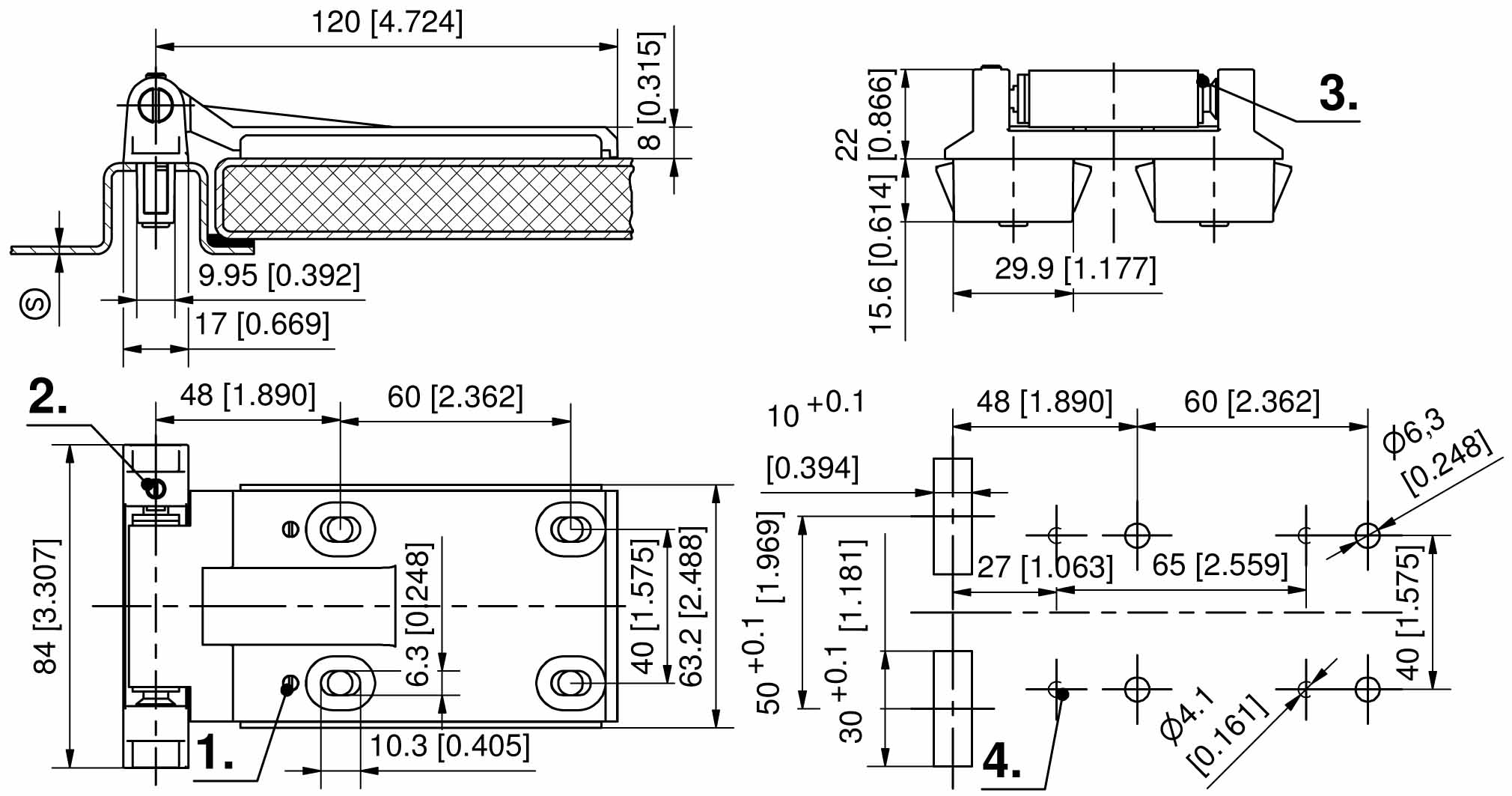

Remarks

1. pushing screw for depth adjusting
2. securing screw for adjustable brass pin
3. PA bushing
4. base plate has 4 holes Ø4.1 for possible additional fastening at the door.
