DST Hinge Pr01/04 180°

Advantages

For nested or surface mounted doors.
Hinge visible.
With DIRAK-SNAP-Technology.
RH and LH version.
180° Opening angle.
Lift-off.
Although designed initially for flush constructions, this hinge can also be used for surface mounted doors (refer to example of application 3.).
The installation of the frame-part and door-part is tool-less, achieved by a simple push into the appropriate cutouts.
Version with pressed in pin for high loads.

Material

Hinge-parts: zinc die, matt black
Pin cast-on: zinc die
For heavy duty, solid pin, pressed in: stainless steel
Spacer: Teflon, black
Snap wedges: sintered steel

Remarks

Attention: The angle is only 130° for surface-mounted applications. See product system 4-346DST.

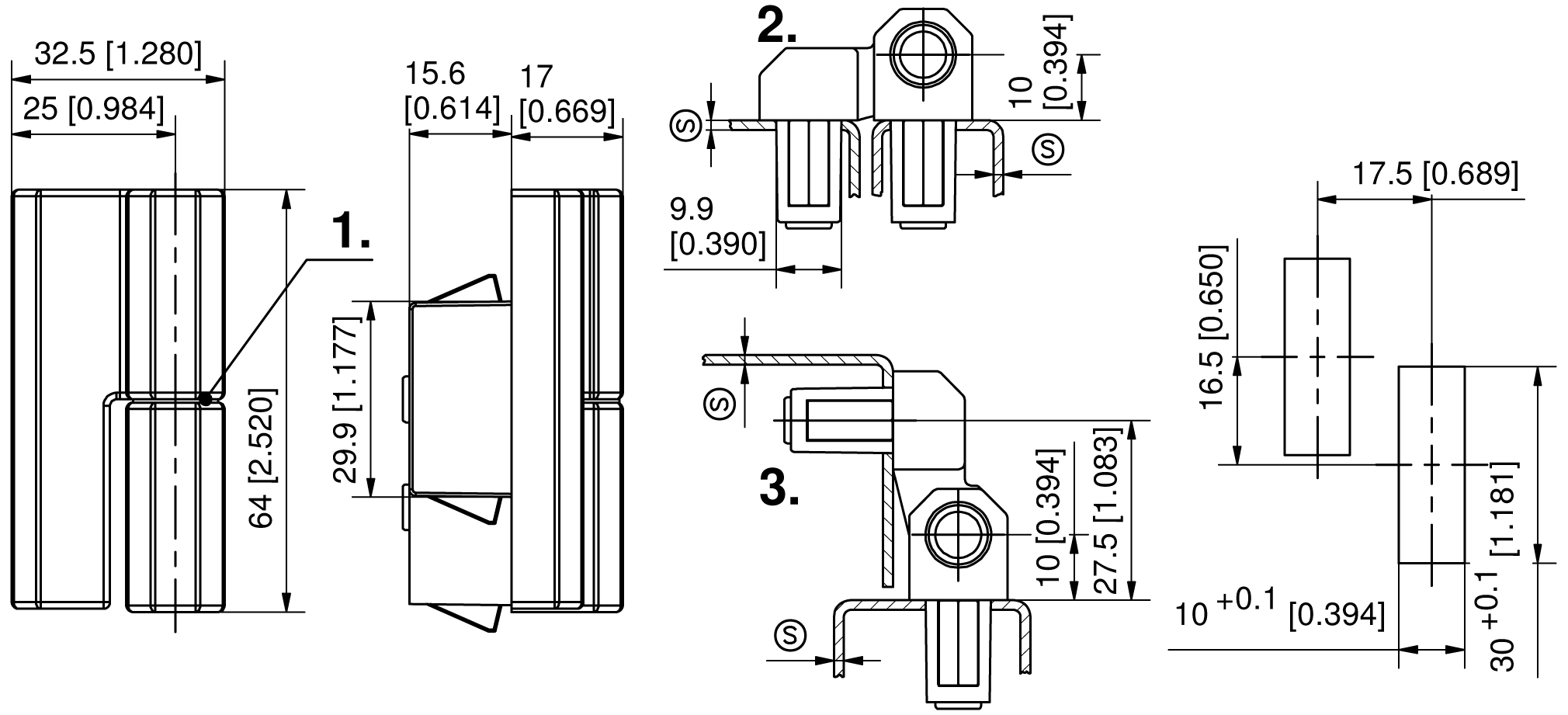

1. spacer
2. example of application nested door
3. example of application surface mounted door
