[4-330DST]

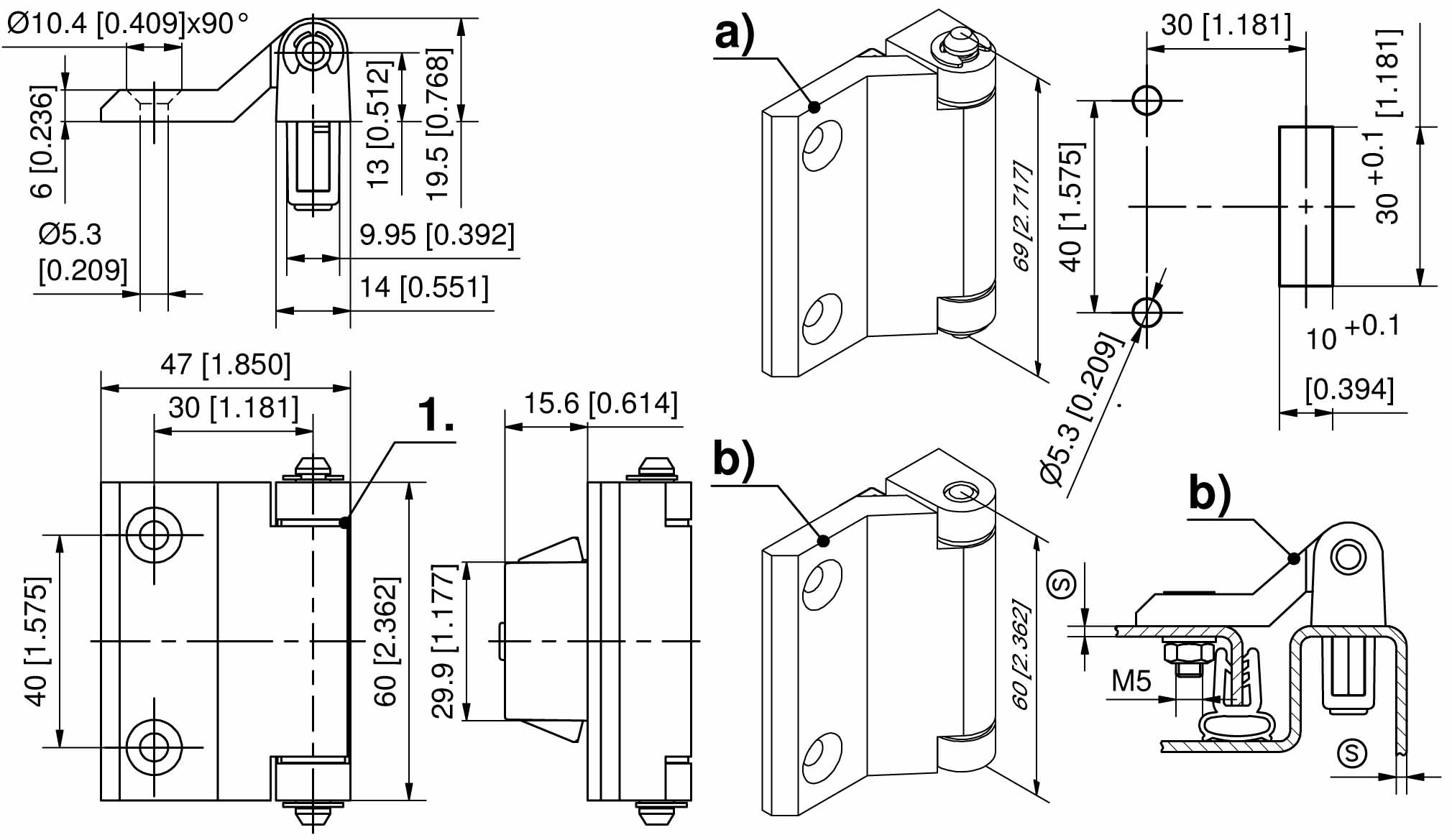

DST Hinge Pr01 200°
Available versions
Hinge
Product number
Clamping range (S)
Material pin
Pin length L
Pin version
Installation type
Delivery Unit
a)
417-9001.00-00015
1.2 - 1.7 mm
steel, zinc plated
69 mm
with groove incl. locking washer DIN6799
tool-less / screw-on
10 pcs.
a)
417-9001.00-00020
1.7 - 2.2 mm
steel, zinc plated
69 mm
with groove incl. locking washer DIN6799
tool-less / screw-on
10 pcs.
a)
417-9001.00-00025
2.2 - 2.7 mm
steel, zinc plated
69 mm
with groove incl. locking washer DIN6799
tool-less / screw-on
10 pcs.
a)
417-9001.00-00030
2.7 - 3.2 mm
steel, zinc plated
69 mm
with groove incl. locking washer DIN6799
tool-less / screw-on
10 pcs.
b)
417-9101.00-00015
1.2 - 1.7 mm
stainless steel
60 mm
pressed in
tool-less / screw-on
10 pcs.
b)
417-9101.00-00020
1.7 - 2.2 mm
stainless steel
60 mm
pressed in
tool-less / screw-on
10 pcs.
b)
417-9101.00-00025
2.2 - 2.7 mm
stainless steel
60 mm
pressed in
tool-less / screw-on
10 pcs.
b)
417-9101.00-00030
2.7 - 3.2 mm
stainless steel
60 mm
pressed in
tool-less / screw-on
10 pcs.
