[4-330]

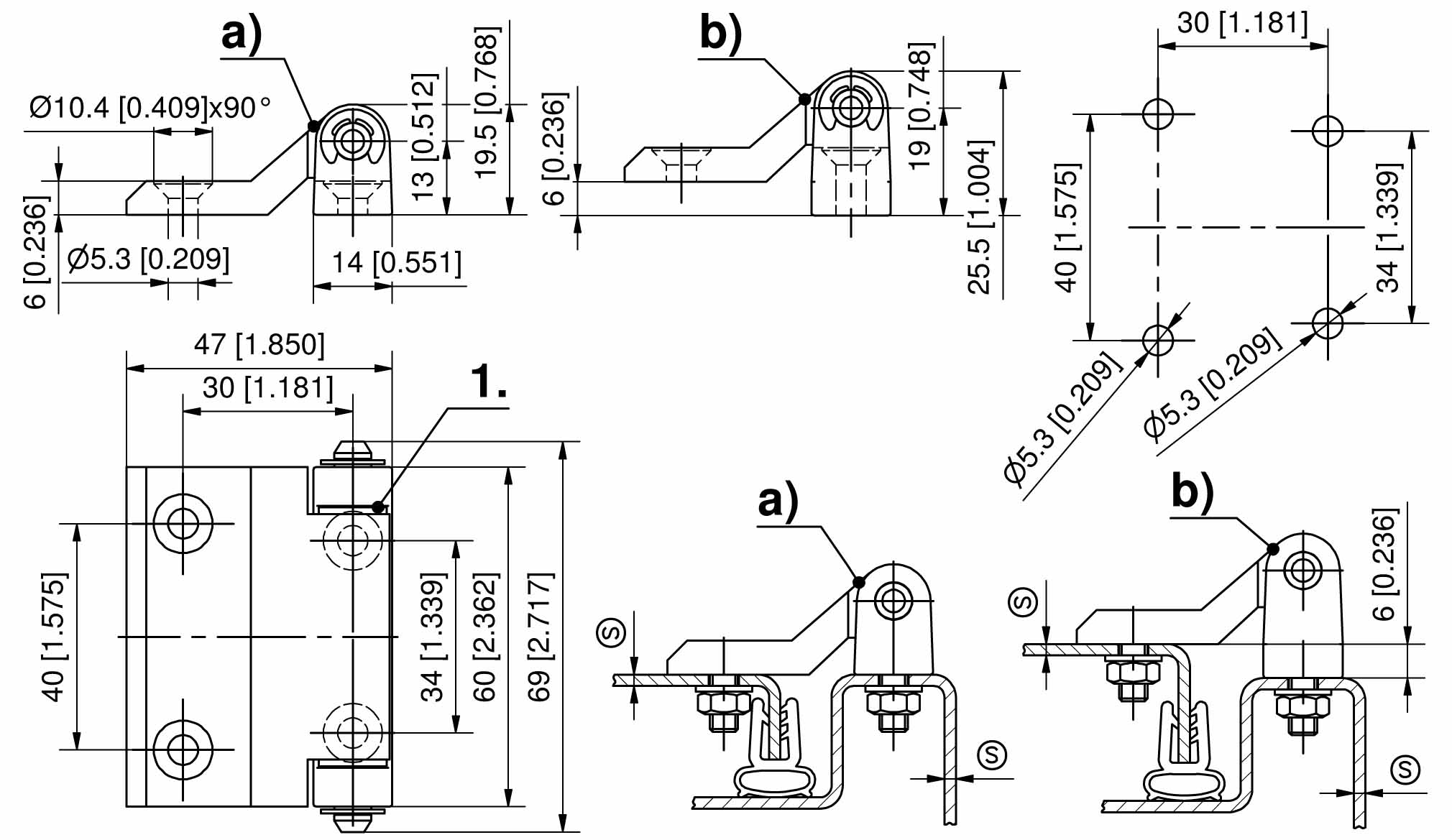

Hinge Pr01 200°
Available versions
Hinge, zinc die
Product number
Surface
Frame-part
Material pin
Pin version
Installation type
Delivery Unit
a)
217-9109.00-00000
blasted chrome plated
normal
steel, zinc plated
with groove incl. locking washer DIN6799
screw-on
6 pcs.
a)
217-9110.00-00000
blasted chrome plated
normal
stainless steel
with groove incl. locking washer DIN6799
screw-on
6 pcs.
b)
217-9116.00-00000
blasted chrome plated
raised
steel, zinc plated
with groove incl. locking washer DIN6799
screw-on
6 pcs.
b)
217-9117.00-00000
blasted chrome plated
raised
stainless steel
with groove incl. locking washer DIN6799
screw-on
6 pcs.
a)
217-9101.00-00000
black
normal
steel, zinc plated
with groove incl. locking washer DIN6799
screw-on
6 pcs.
a)
217-9102.00-00000
black
normal
stainless steel
with groove incl. locking washer DIN6799
screw-on
6 pcs.
b)
217-9103.00-00000
black
raised
steel, zinc plated
with groove incl. locking washer DIN6799
screw-on
6 pcs.
b)
217-9104.00-00000
black
raised
stainless steel
with groove incl. locking washer DIN6799
screw-on
6 pcs.
