[4-323]

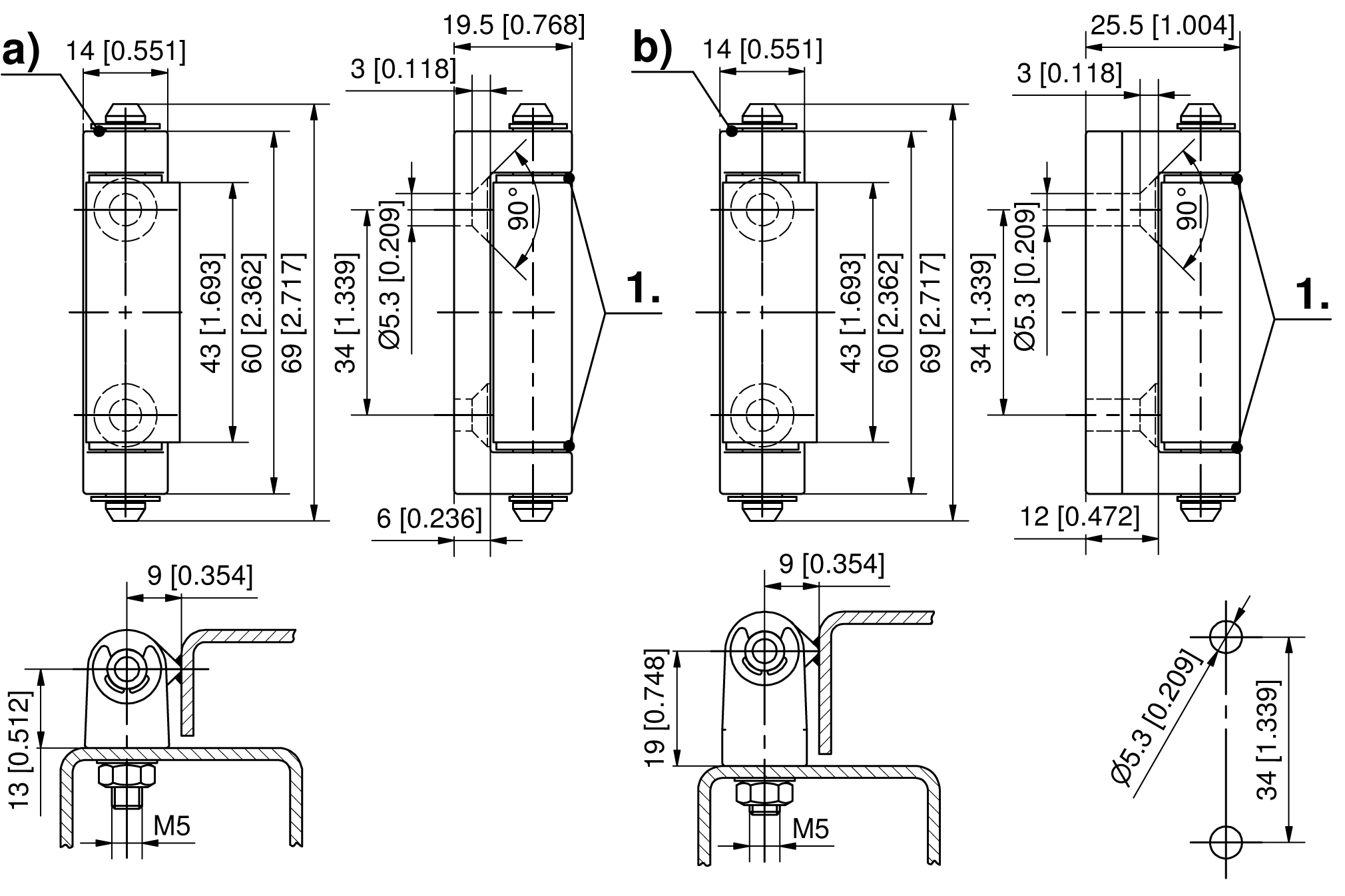

Corner Hinge Pr04 180°
Available versions
Corner hinge, zinc die
Product number
Surface frame-part
Frame-part
Pin version
Installation type
Delivery Unit
217-9201.00-00000
blasted chrome plated
normal
with groove incl. locking washer DIN6799
screw- / weld-on
10 pcs.
217-9203.00-00000
blasted chrome plated
raised
with groove incl. locking washer DIN6799
screw- / weld-on
10 pcs.
217-9202.00-00000
black
normal
with groove incl. locking washer DIN6799
screw- / weld-on
10 pcs.
217-9204.00-00000
black
raised
with groove incl. locking washer DIN6799
screw- / weld-on
10 pcs.
