[4-286]

Corner Hinge Pr04 180°

ICON_HINGE_SERIES_Pr04
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_LIFT_OFF
ICON_180_GRAD
4_286
E_4-286
4_286
E_4-286

Advantages

  • For surface mounted doors.
  • Hinge visible.
  • Lift-off.
  • RH / LH application.
  • 180° Opening angle.
  • Pin pressed-in.
  • With teflon spacer for a durable, smooth-running functional reliability.

Material

  • Hinge: zinc die, glossy chrome plated, black powdered or untreated
  • Pin: steel, zinc plated
  • Spacer: teflon

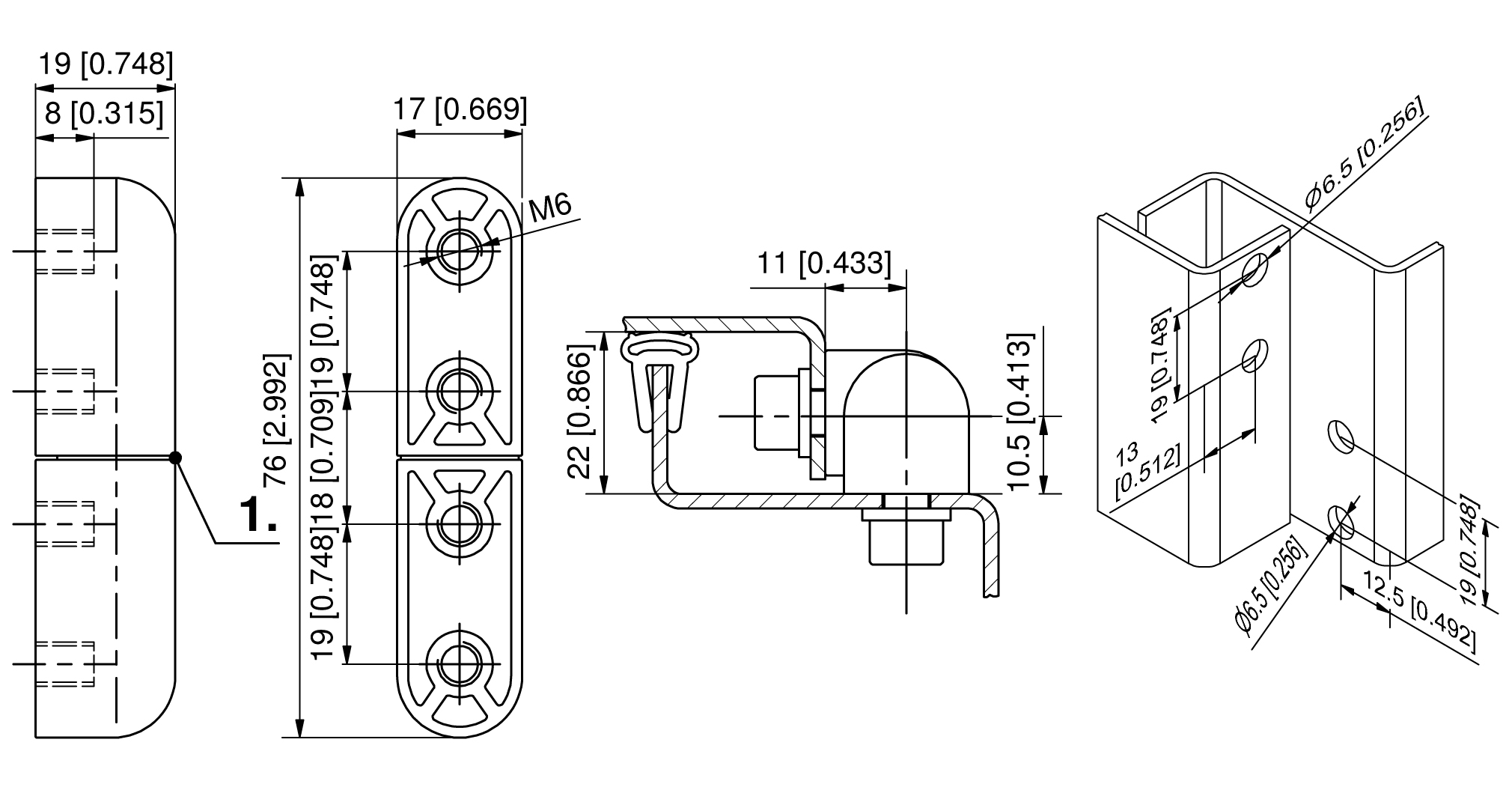

Remarks

1. spacer
