[4-285DST]

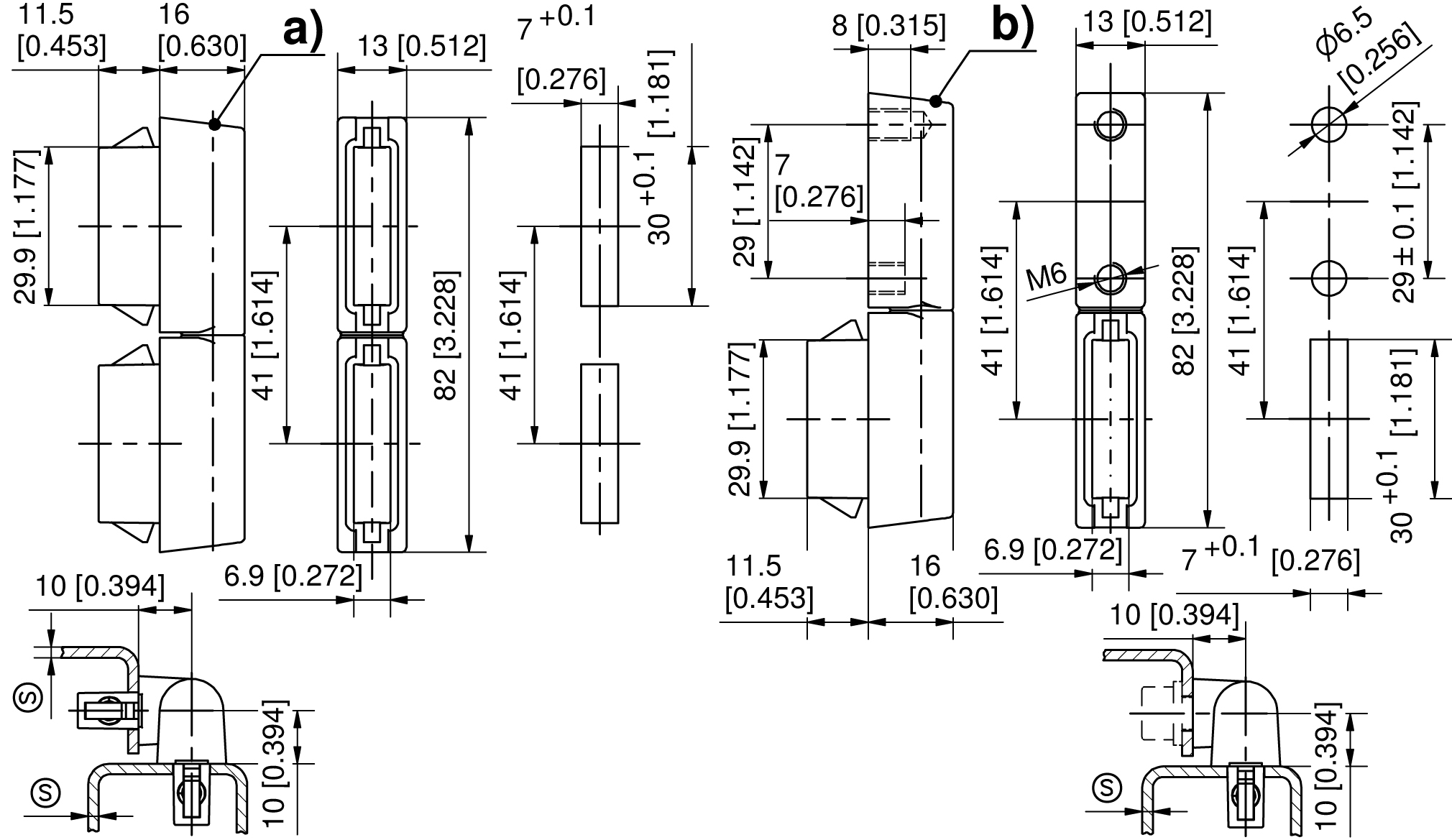

DST Corner Hinge Pr04 180°
Available versions
Corner hinge
Product number
Clamping range (S)
Pin version
Installation type
Delivery Unit
a)
417-9015.00-00012
0.8 - 1.5 mm
pressed in
tool-less
10 pcs.
a)
417-9015.00-00016
1.3 - 2.0 mm
pressed in
tool-less
10 pcs.
a)
417-9015.00-00019
1.5 - 2.2 mm
pressed in
tool-less
10 pcs.
a)
417-9015.00-00026
2.3 - 3.0 mm
pressed in
tool-less
10 pcs.
b)
417-9017.00-00012
0.8 - 1.5 mm
pressed in
tool-less / screw-on
10 pcs.
b)
417-9017.00-00016
1.3 - 2.0 mm
pressed in
tool-less / screw-on
10 pcs.
b)
417-9017.00-00019
1.5 - 2.2 mm
pressed in
tool-less / screw-on
10 pcs.
b)
417-9017.00-00026
2.3 - 3.0 mm
pressed in
tool-less / screw-on
10 pcs.
