[4-278]

Hinge Pr01 270°

ICON_HINGE_SERIES_Pr01
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_270_GRAD
4_278
E_4-278
4_278
E_4-278

Advantages

  • Screw-on hinge.
  • For nested doors.
  • Hinge visible.
  • RH / LH application
  • 270° Opening angle.

Material

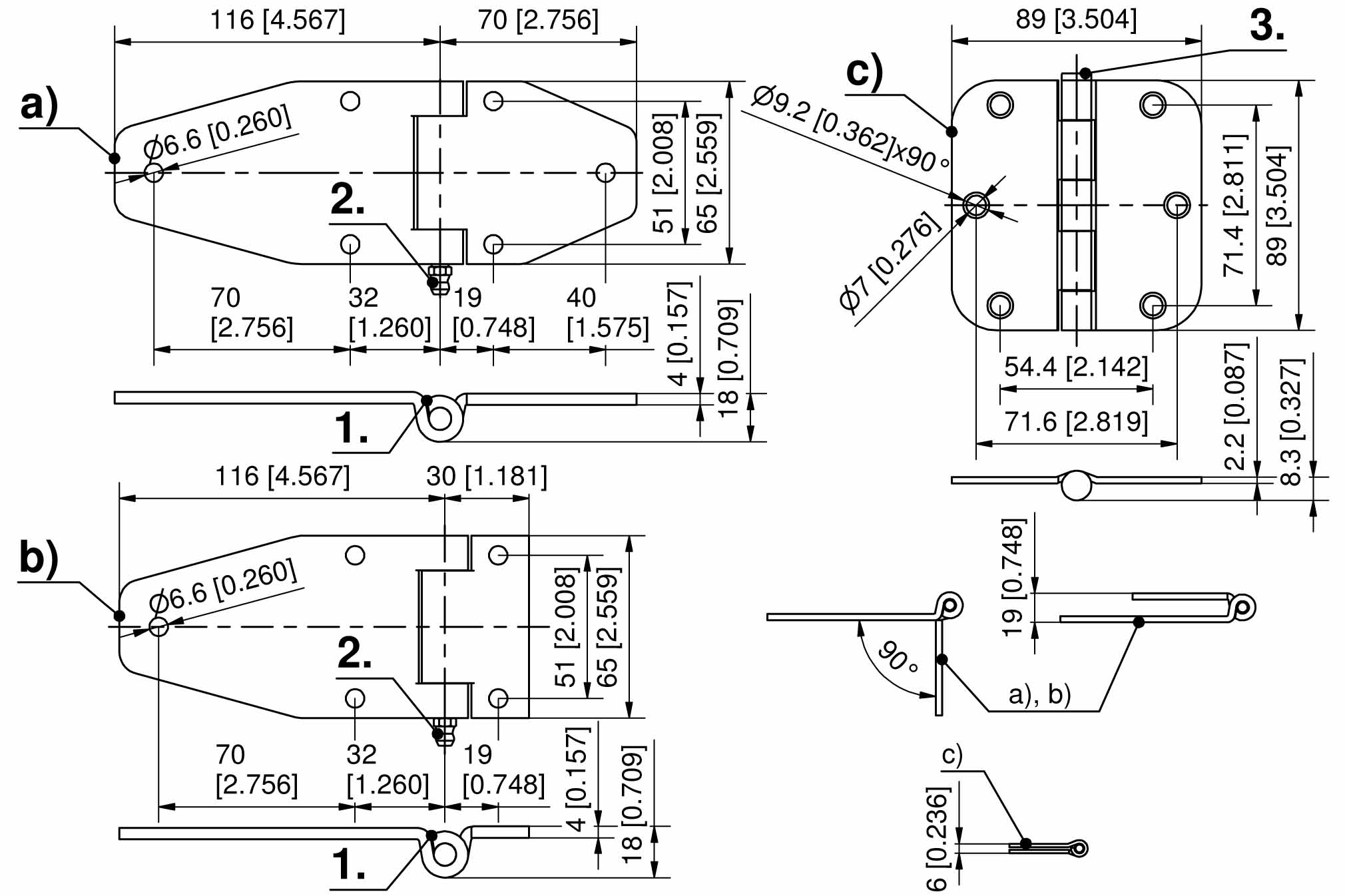

a) and b)
  • Hinge halves: steel, zinc plated
c)
  • Hinge complete: steel, chrome plated or dull brass plated

Remarks

1. both rolls of the long shank welded
2. grease nipple (version a)+b))
3. tight pin

As an alternative please refer to the stainless steel version on product system 7-260.
Please select version Product data sheet
