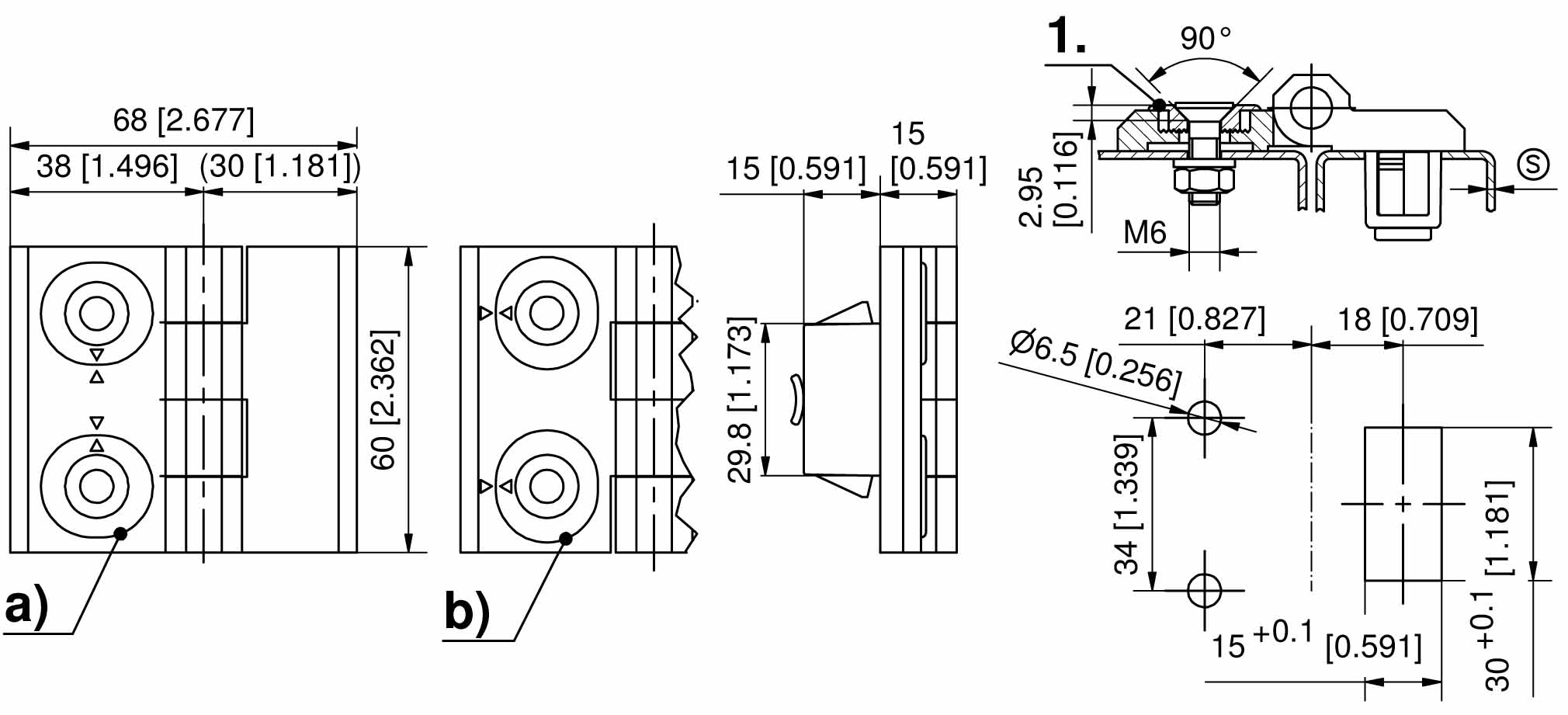

[4-271DST]
DST Hinge Pr01 180°
Available versions
Hinge
Product number
Clamping range (S)
Adjustment
Pin version
Installation type
Delivery Unit
a)
418-9206.00-00020
1.7 - 2.2 mm
horizontal
pressed in
tool-less / screw-on
10 pcs.
a)
418-9206.00-00025
2.2 - 2.7 mm
horizontal
pressed in
tool-less / screw-on
10 pcs.
a)
418-9206.00-00030
2.7 - 3.2 mm
horizontal
pressed in
tool-less / screw-on
10 pcs.
a)
418-9206.00-00035
3.2 - 3.7 mm
horizontal
pressed in
tool-less / screw-on
10 pcs.
b)
418-9207.00-00020
1.7 - 2.2 mm
vertical
pressed in
tool-less / screw-on
10 pcs.
b)
418-9207.00-00025
2.2 - 2.7 mm
vertical
pressed in
tool-less / screw-on
10 pcs.
b)
418-9207.00-00030
2.7 - 3.2 mm
vertical
pressed in
tool-less / screw-on
10 pcs.
