[4-270DST]

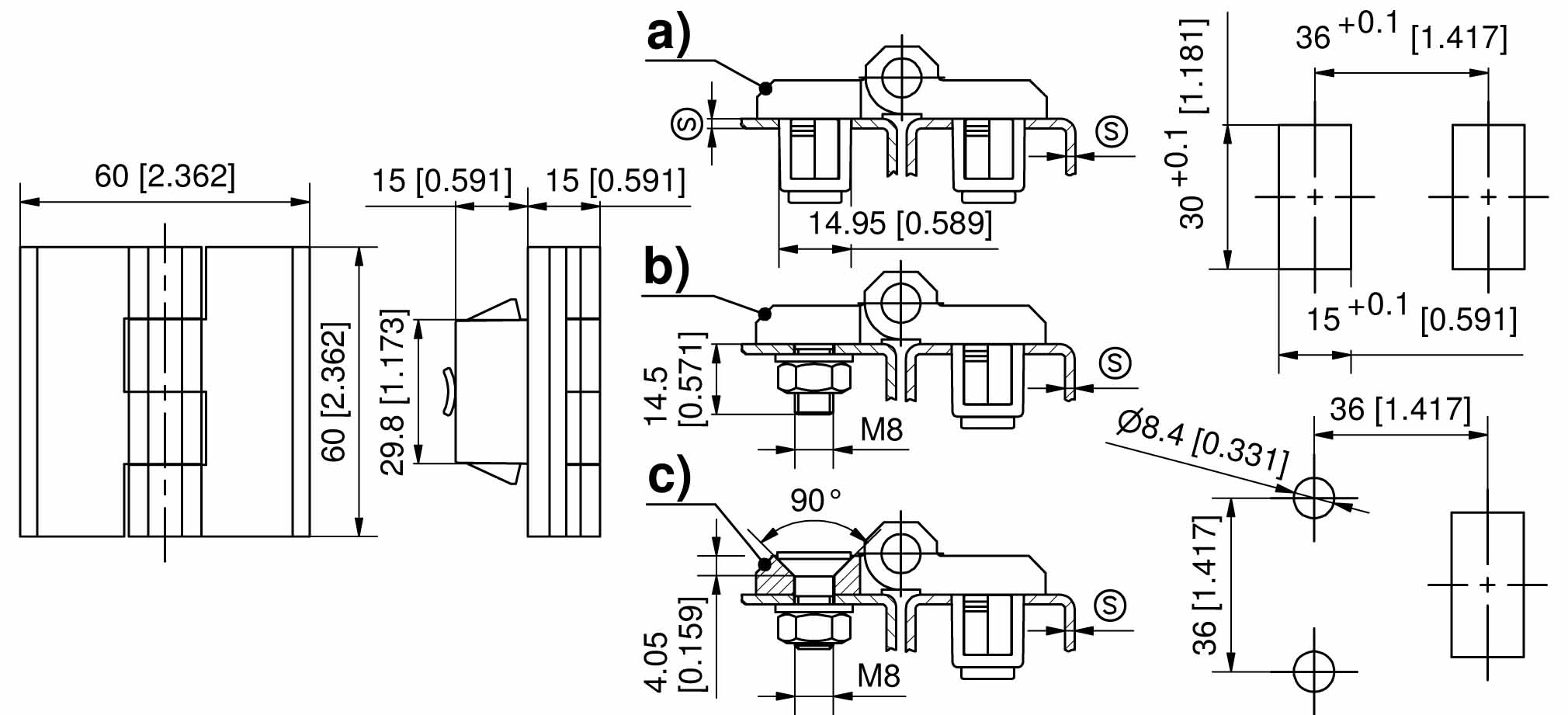

DST Hinge 60x60 Pr01 180°
Available versions
Hinge
Product number
Version
Clamping range (S)
Pin version
Installation type
Delivery Unit
a)
418-9202.00-00015
clip-in
1.2 - 1.7 mm
pressed in
tool-less
10 pcs.
a)
418-9202.00-00020
clip-in
1.7 - 2.2 mm
pressed in
tool-less
10 pcs.
a)
418-9202.00-00025
clip-in
2.2 - 2.7 mm
pressed in
tool-less
10 pcs.
a)
418-9202.00-00030
clip-in
2.7 - 3.2 mm
pressed in
tool-less
10 pcs.
a)
418-9202.00-00035
clip-in
3.2 - 3.7 mm
pressed in
tool-less
10 pcs.
b)
418-9203.00-00015
Screws M8 molded in
1.2 - 1.7 mm
pressed in
tool-less / screw-on
10 pcs.
b)
418-9203.00-00020
Screws M8 molded in
1.7 - 2.2 mm
pressed in
tool-less / screw-on
10 pcs.
b)
418-9203.00-00025
Screws M8 molded in
2.2 - 2.7 mm
pressed in
tool-less / screw-on
10 pcs.
b)
418-9203.00-00030
Screws M8 molded in
2.7 - 3.2 mm
pressed in
tool-less / screw-on
10 pcs.
c)
418-9208.00-00015
with countersunk holes for M8
1.2 - 1.7 mm
pressed in
tool-less / screw-on
10 pcs.
c)
418-9208.00-00020
with countersunk holes for M8
1.7 - 2.2 mm
pressed in
tool-less / screw-on
10 pcs.
c)
418-9208.00-00025
with countersunk holes for M8
2.2 - 2.7 mm
pressed in
tool-less / screw-on
10 pcs.
c)
418-9208.00-00030
with countersunk holes for M8
2.7 - 3.2 mm
pressed in
tool-less / screw-on
10 pcs.
c)
418-9208.00-00035
with countersunk holes for M8
3.2 - 3.7 mm
pressed in
tool-less / screw-on
10 pcs.
