Hinge Pr01 180°

Advantages

Screw-on hinges for aluminum profiles.
For nested doors.
Hinge visible.
RH and LH version.
180° Opening angle.
Lift-off.
Horizontal and vertial installation with DIRAK tenon blocks or fastening blocks 4-248. A rotation of the hinge is not possible.

Material

Hinge halves: zinc die, blasted chrome plated or black
Pin: stainless steel

Remarks

(S) in conjunction with tenon blocks of product system 4-248 = max. 3.2mm
Cutout see 4-248

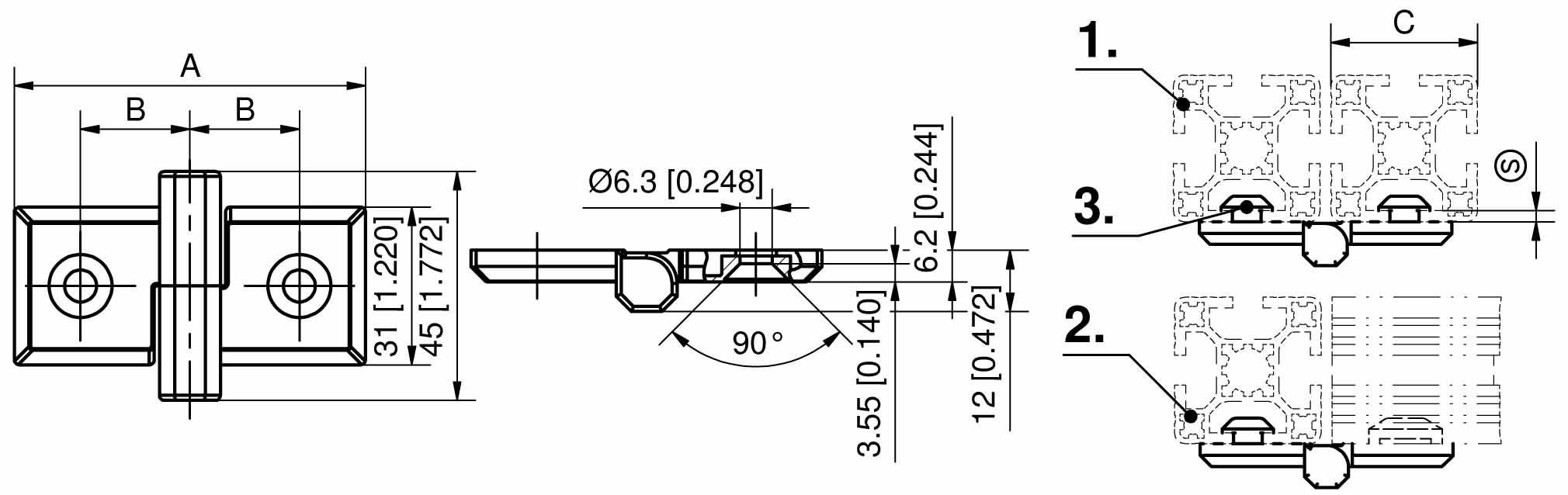

1. installation example for the parallel arrangement of the profiles
2. installation example for the rectangular arrangement of the profiles
3. tenon blocks see 4-248

Available versions

Hinge, zinc die, blasted chrome plated

Product number

Version

for profile width C

total Length A

Dimension B

Pin version

Installation type

Delivery Unit
