Hinge Pr01 180°

ICON_HINGE_SERIES_Pr01
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_180_GRAD
4_225
E_4-225
4_225
E_4-225

Advantages

  • Screw-on / weld-on hinge.
  • For nested doors.
  • Hinge visible.
  • RH / LH application.
  • 180° Opening angle.

Material

a) and b)
  • Door- and frame-part: steel, zinc plated
c)
  • Door-part: steel, untreated
  • Frame-part: steel, zinc plated
  • Washer: brass, nickel plated
  • Pin: steel, nickel plated

Remarks

1. washer
Please select version Product data sheet

Available versions

Hinge, middle-part long


Product number
Version
Pin version
Installation type
Delivery Unit

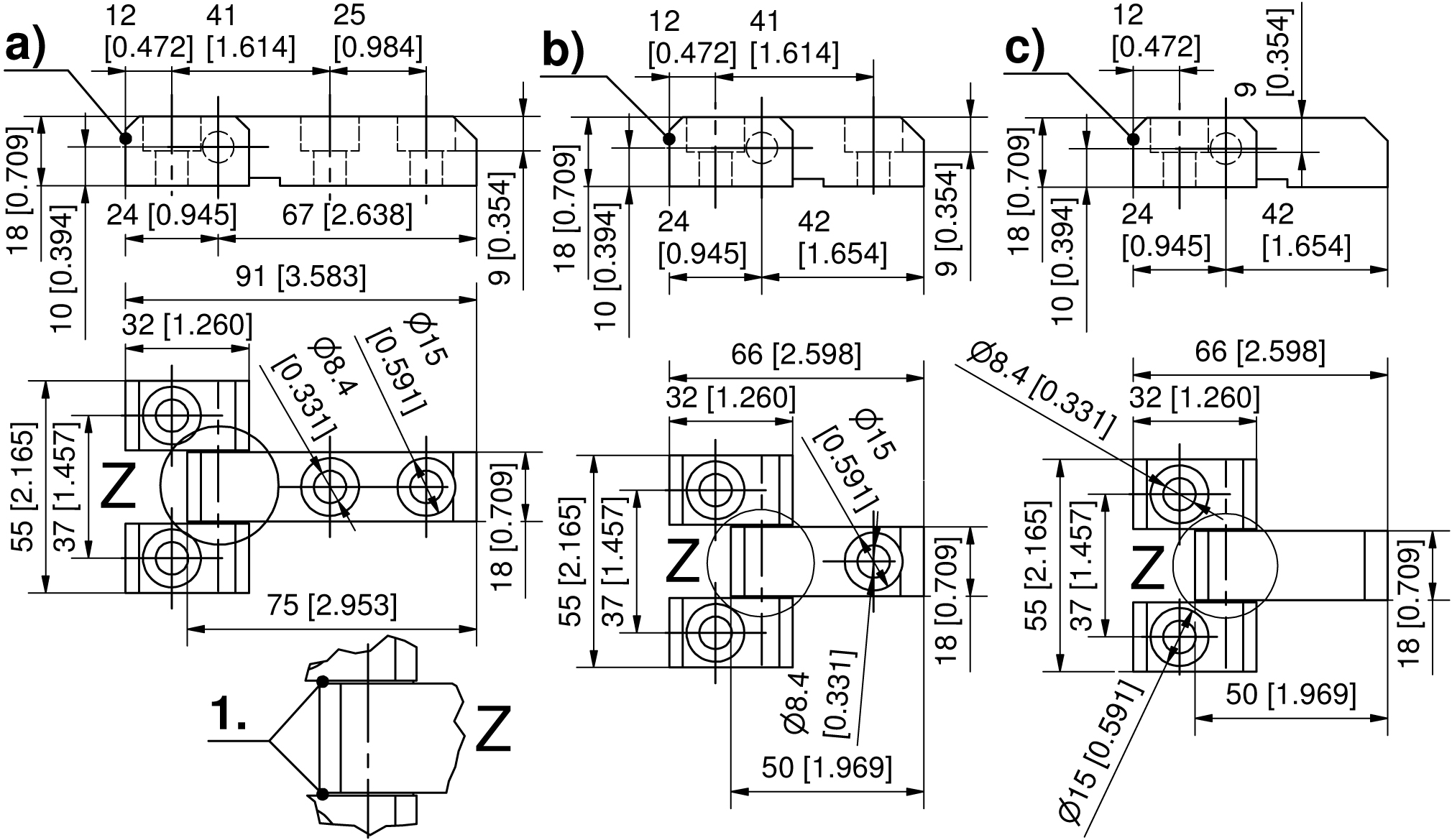

a)
219-9109.00-00000
with two countersunk holes Ø8.4mm
loose
screw-on
10 pcs.

Hinge, middle-part short


Product number
Version
Pin version
Installation type
Delivery Unit
b)
219-9113.00-00000
with one countersunk hole Ø8.4mm
loose
screw-on
10 pcs.
c)
219-9114.00-00000
without countersunk hole
loose
weld-on
10 pcs.
