Hinge Pr05 180°

ICON_HINGE_SERIES_Pr05
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_180_GRAD
4_185
E_4-185
4_185
E_4-185

Advantages

  • For surface mounted doors for adjacent cabinets.
  • Hinge partly visible.
  • Door bending 25mm.
  • RH / LH application.
  • 180° Opening angle.

Material

  • Frame- and door-part: zinc die, glossy chrome plated or black
  • Washer: brass, nickel plated
  • Pin: steel, zinc plated
  • Fastening washer: steel, zinc plated

Remarks

(S) Door-thickness min 1.5 - max. 2mm
for door thickness (S) 1.5mm x= 12mm
for door thickness (S) 2 mm x= 15mm

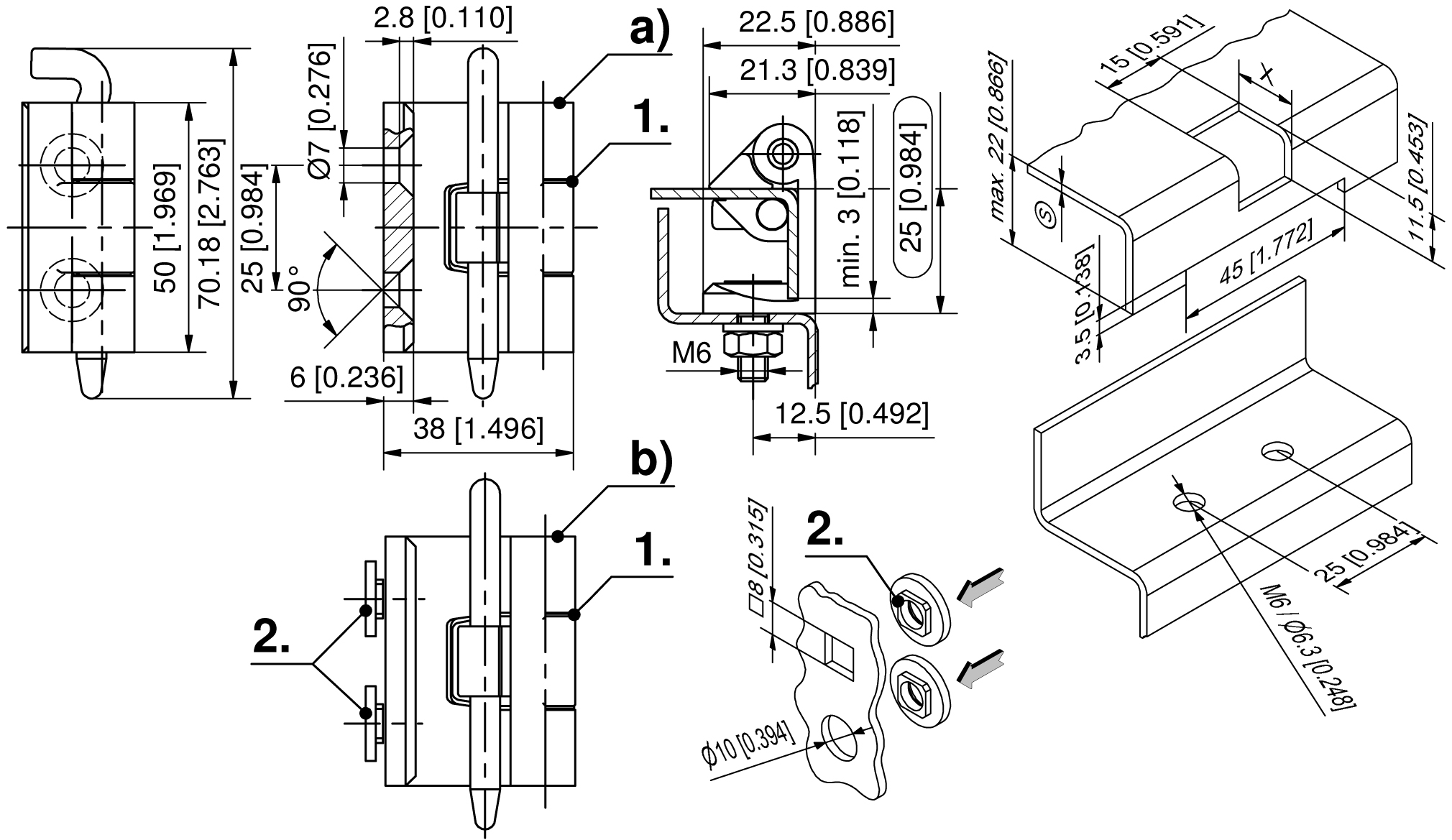

1. washer
2. fastening washer
Please select version Product data sheet

Available versions

Hinge, zinc die, black


Product number
cutout in frame
Frame-part
Pin version
Installation type
Delivery Unit
a)
212-9038.00-00000
Ø6
with countersunk holes for M6
loose
screw-on
10 pcs.
b)
212-9037.00-00000
□8 or Ø10
with countersunk holes for M6 + fastening washer
loose
screw-on
10 pcs.

Hinge, zinc die, glossy chrome plated


Product number
cutout in frame
Frame-part
Pin version
Installation type
Delivery Unit
a)
212-9088.00-00000
Ø6
with countersunk holes for M6
loose
screw-on
10 pcs.
b)
212-9050.00-00000
□8 or Ø10
with countersunk holes for M6 + fastening washer
loose
screw-on
10 pcs.
