DST Hinge Pr05 180°

ICON_HINGE_SERIES_Pr05
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_WERKZEUGLOS
ICON_LIFT_OFF
ICON_180_GRAD
ICON_DST
ICON_IP65
4_182_05DST
E_4-182_05DST
4_182_05DST
E_4-182_05DST

Advantages

  • For surface mounted doors for adjacent cabinets.
  • Hinge partly visible.
  • Door bending 25mm.
  • RH / LH application.
  • Opening angle 180°.
  • Tool-less installation of frame- and door-part.
  • Door-part with pre-fitted and captive pin-halves.
  • At about 30° door opening the door can be pulled out, after retracting the pin-halves.
  • For door installation, the door is inserted into the frame at approx. 30 ° and the hinge pins are pressed in. (2.)
  • IP65 according to DIN EN 60529 (optional).

Material

  • Frame- and door-part and pins: zinc die, black
  • Snap wedges: sintered metal, coated
  • Detent spring: spring steel

Remarks

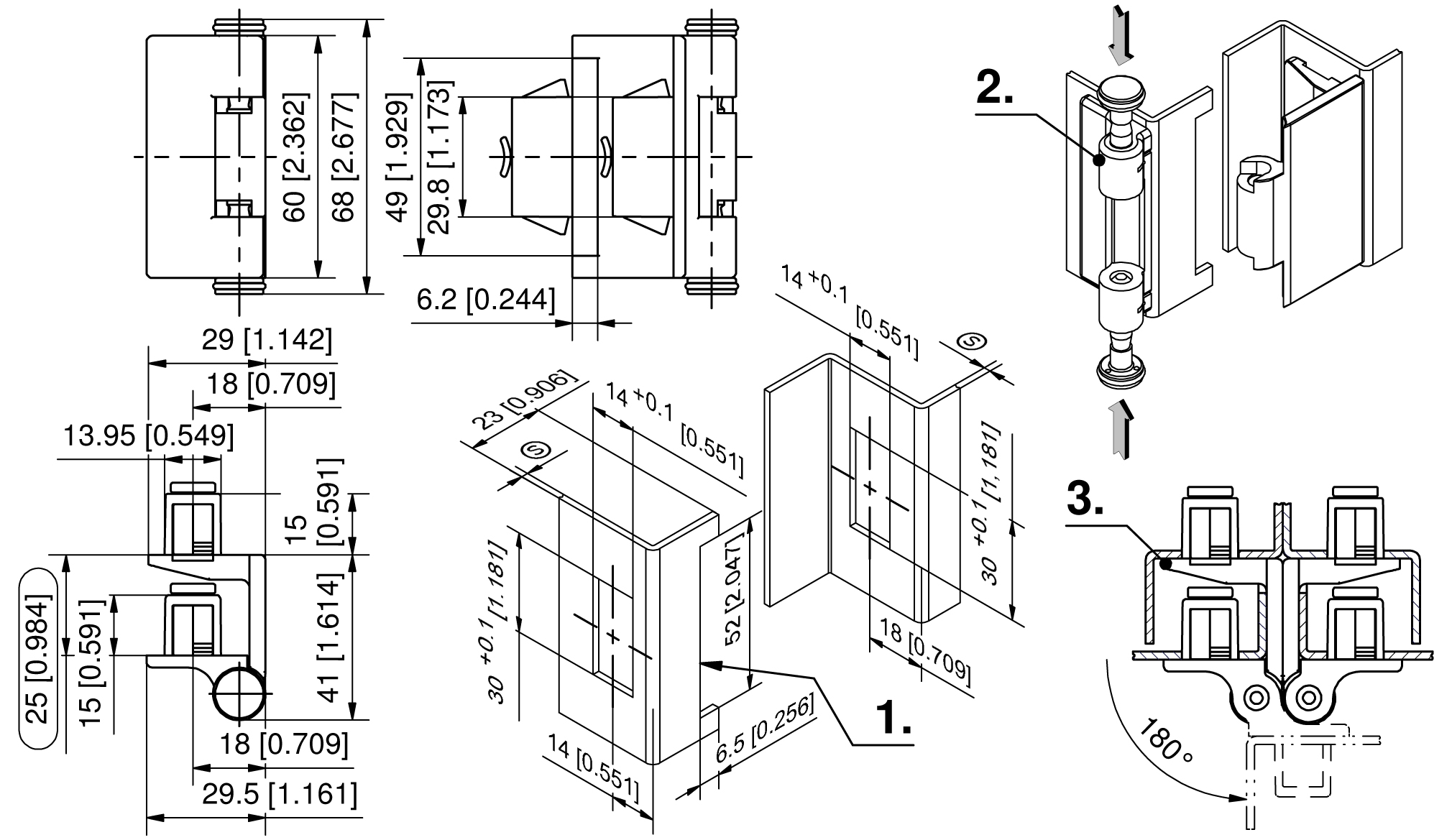

1. possible notching in the door for a gap of 2mm between door and frame.
3. opening angle 180° if hinges are installed on the left and on the right

Frame holes layout is also suitable for mounting dual hooks as on product system 3-910DST shown allowing reversibility of door.
