Hinge Pr05 180°

ICON_HINGE_SERIES_Pr05
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_LIFT_OFF
ICON_180_GRAD
4_182
E_4-182
4_182
E_4-182

Advantages

  • For suface mounted doors for adjacent cabinets.
  • Hinge partly visible.
  • Door-bending 25mm.
  • For RH / LH application.
  • 180° Opening angle.
  • Easy lift-off through oblong holes (2.).
  • Hinge fitting from inside and outside.
  • Hinges are supplied including fastening material (5.).

Material

  • Frame- and door-part: zinc die, black
  • Pin: steel, zinc plated
  • Washer: brass
  • Fastening washer: steel, zinc plated

Remarks

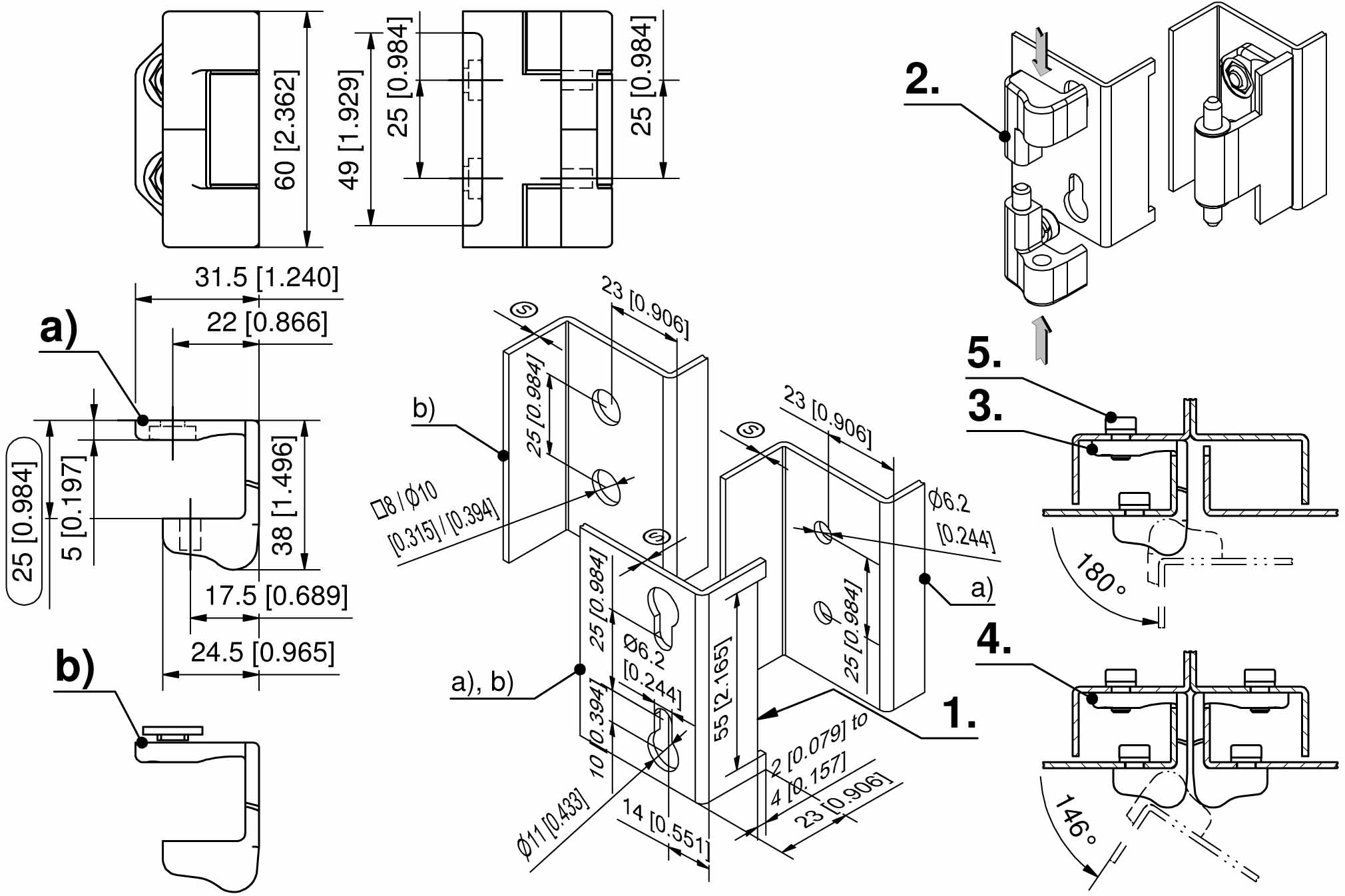

1. possible notching in the door for a gap of approx. 1-2mm between door and frame.
Option b) with fastening washer for holes □8 or Ø10.
3. 180° opening angle attached to LH or RH hinges.
4. 146° opening angle attached to LH and RH hinges.

Frame holes layout is also suitable for mounting dual hooks as on product system 3-170 and 3-910 shown allowing reversibility of door.
