[4-161DST]

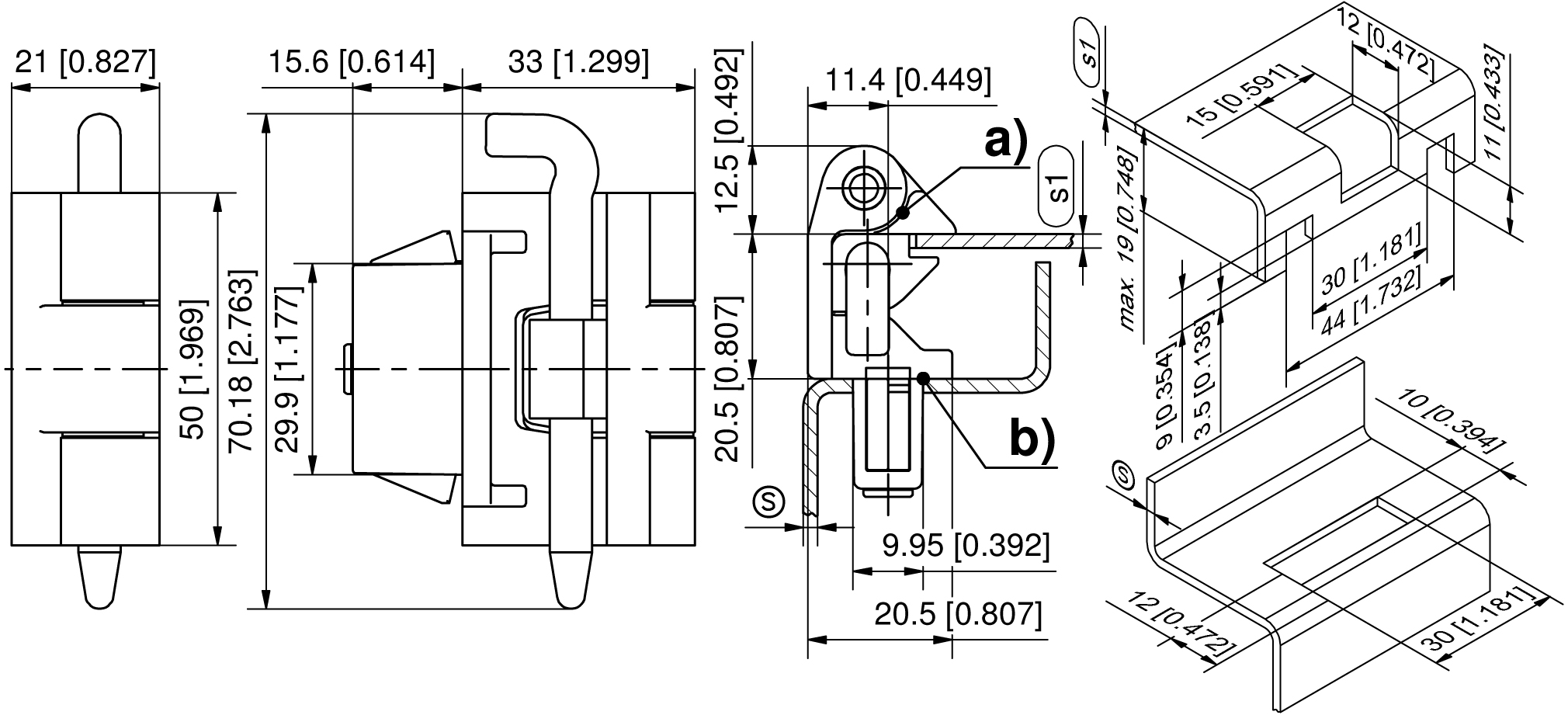

DST Hinge Pr05 180°

ICON_HINGE_SERIES_Pr05

ICON_TUERANSCHLAG_LR

ICON_WERKZEUGLOS

Advantages

Hinge with DIRAK-SNAP-Technology.
For surface mounted doors for adjacent cabinets.
Hinge partly visible.
Door bending 20mm.
RH / LH application.
180° Opening angle.
Closed cutout.
Installation of the frame-part by simple tool-less push into the cutout.
IP65 according DIN EN 60529 (optional).

Material

Frame- and door-part: zinc die, black
Pin and pivot pin: steel, zinc plated
Washers: brass, nickel plated
Snap wedges: sintered metal, coated

Remarks

Door-thickness (S1) 1.5 - 2mm

Available versions

Hinge

Product number

Clamping range (S)

Pin version

Installation type

Delivery Unit

412-9003.00-00015

1.2 mm - 1.7 mm

412-9003.00-00020

1.7 mm - 2.2 mm

412-9003.00-00025

2.2 mm - 2.7 mm

412-9003.00-00030

2.7 mm - 3.2 mm

Related Products

Function extension

b

839-3771_00-00935

839-3770.00-02022 O-ring 20 x 2.2mm

Accessories

292-0306.80-02530 Tool for uninstallation

292-0401.00-03010 Cutout-cover

292-0702.15-01030 Reinforcement plate for cutout
