Hinge for Single Cabinet Pr05 180°

ICON_HINGE_SERIES_Pr05
ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_LIFT_OFF
ICON_180_GRAD
4_155
E_4-155
4_155
E_4-155

Advantages

  • For surface mounted doors.
  • Hinge partly visible.
  • Door bending 25mm.
  • RH / LH application.
  • 180° Opening angle.
  • Lift-off of the door by swiping the door-part to the middle of the door.
  • Door-part clicks into the end position audible and visible.

Material

  • Door-part: zinc die, black
  • Frame-part: steel, black
  • Bridge, screws, pin: steel, zinc plated

Remarks

Fastening screws for the door-part included

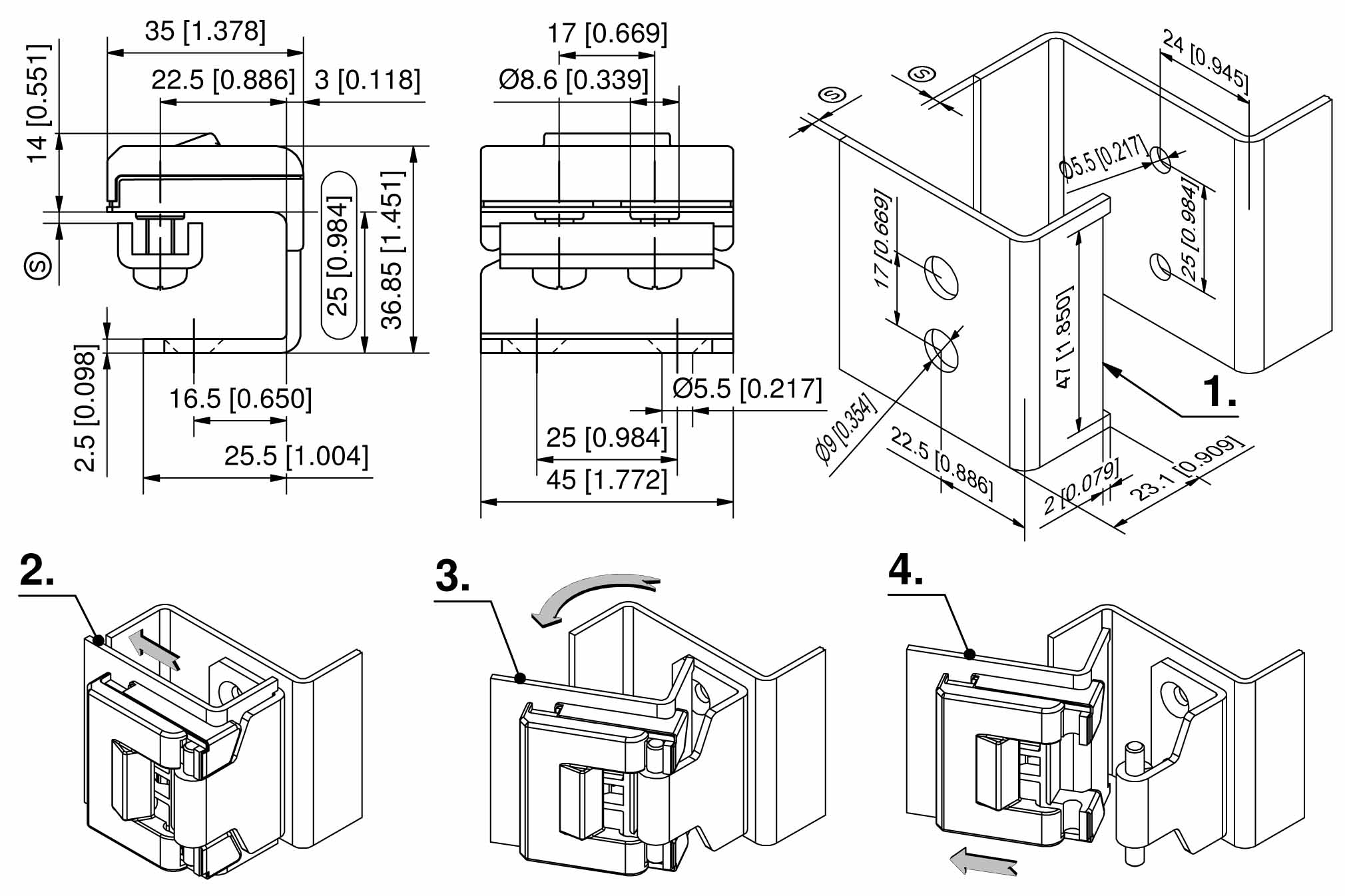

1. notch
2. disengage
3. hinge must be opened 30°
4. hinge disengage
Please select version Product data sheet

Available versions

Hinge

Product number
Pin version
Installation type
Delivery Unit
212-9092.00-00000
pressed in
screw-on
10 pcs.

Related Products

Accessories

6_042

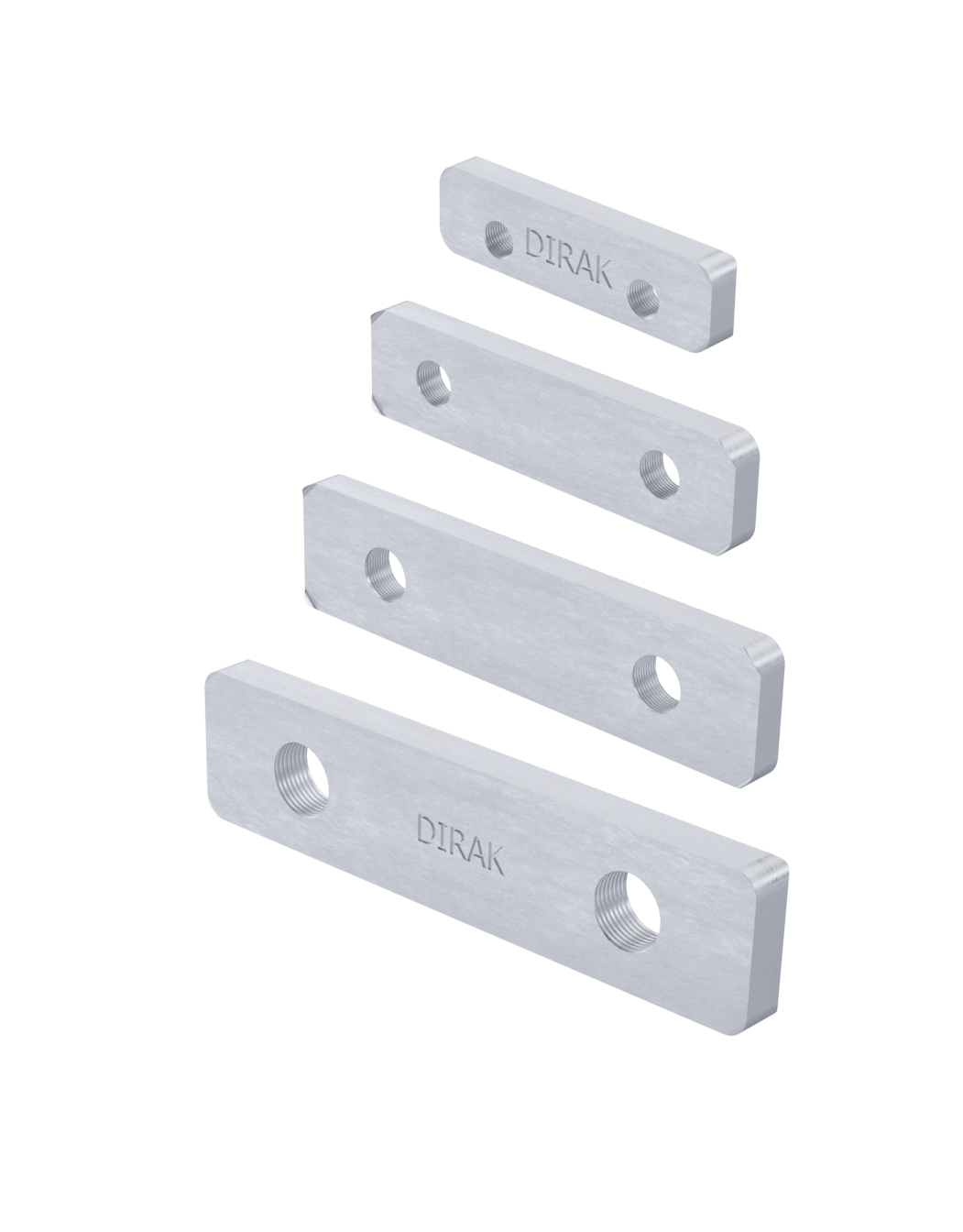

218-0908.15-00000 Nut Plates
