Hinge Pr05 180°

ICON_HINGE_SERIES_Pr05

ICON_TUERANSCHLAG_LR

Advantages

For surface mounted door for single cabinets.
Hinge partly visible.
Door bending 20mm.
RH / LH application.
180° Opening angle.
Frame-part in the zinc die version with M6 threaded stubs for fastening from inside.
Frame-part made of steel for heavy applications!

Material

Frame-part: zinc die, glossy chrome plated, black or steel, black
Fastening washer: steel, zinc plated
Door-part: zinc die, glossy chrome plated or black
Pin: steel, stainless steel or POM

Remarks

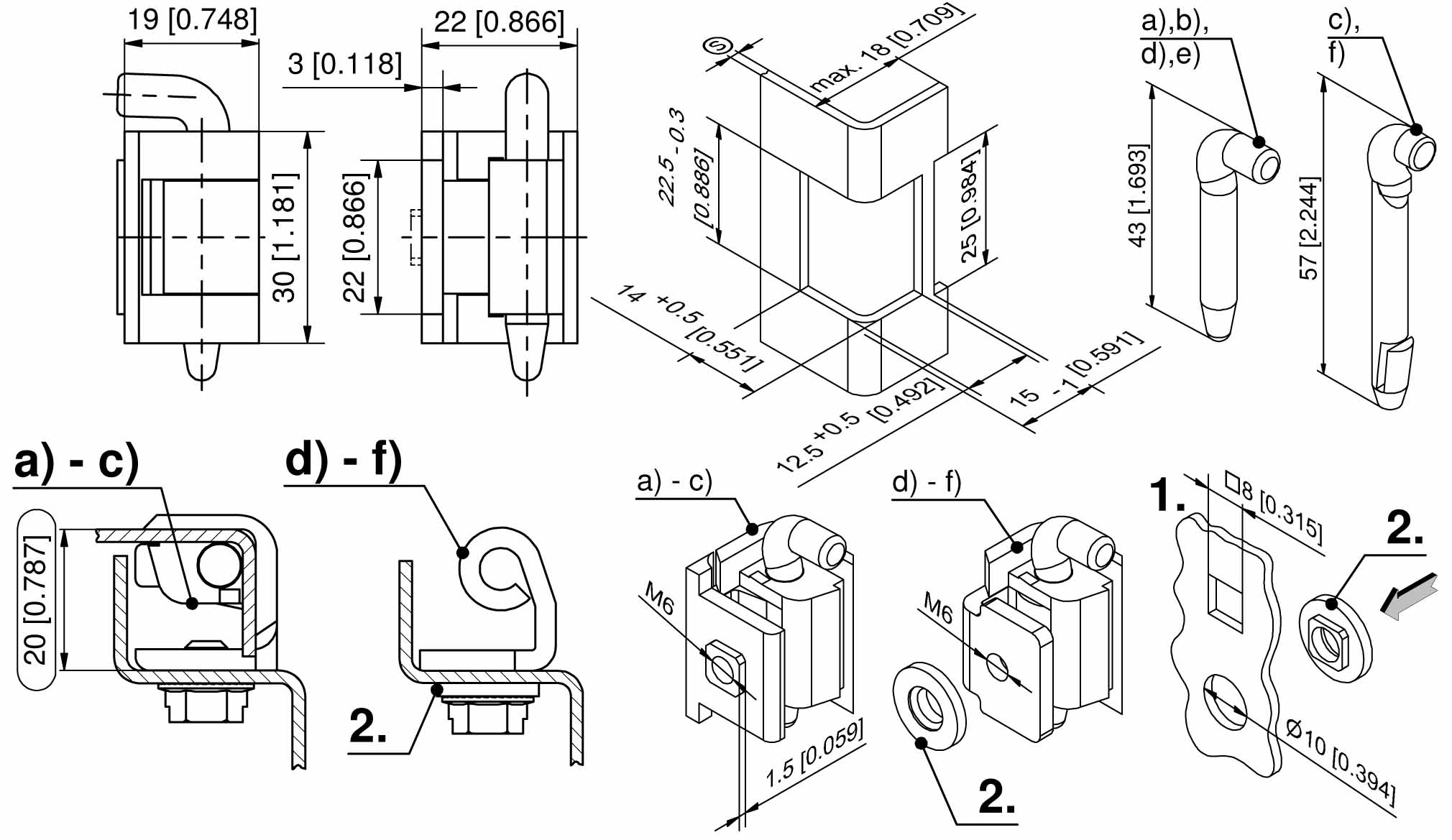

(s) Door-thickness 1.5 - 2 mm

1. installation instruction for fastening washer
2. fastening washer

Available versions

Hinge, zinc die

Product number

Surface

Version

Material pin

Pin length L

Pin version

Installation type

Delivery Unit

212-9056.00-00000

glossy chrome plated

with M6 threaded stubs

steel, zinc plated

212-9057.00-00000

glossy chrome plated

with M6 threaded stubs

stainless steel

212-9058.00-00000

glossy chrome plated

with M6 threaded stubs

212-9059.00-00000

with M6 threaded stubs

steel, zinc plated

212-9060.00-00000

with M6 threaded stubs

stainless steel

212-9061.00-00000

with M6 threaded stubs

Hinge, frame-part steel, door-part zinc die

Product number

Surface

Version

Material pin

Pin length L

Pin version

Installation type

Delivery Unit

212-9062.00-00000

with fastening washer

steel, zinc plated

212-9063.00-00000

with fastening washer

stainless steel

212-9064.00-00000

with fastening washer
