[4-150]

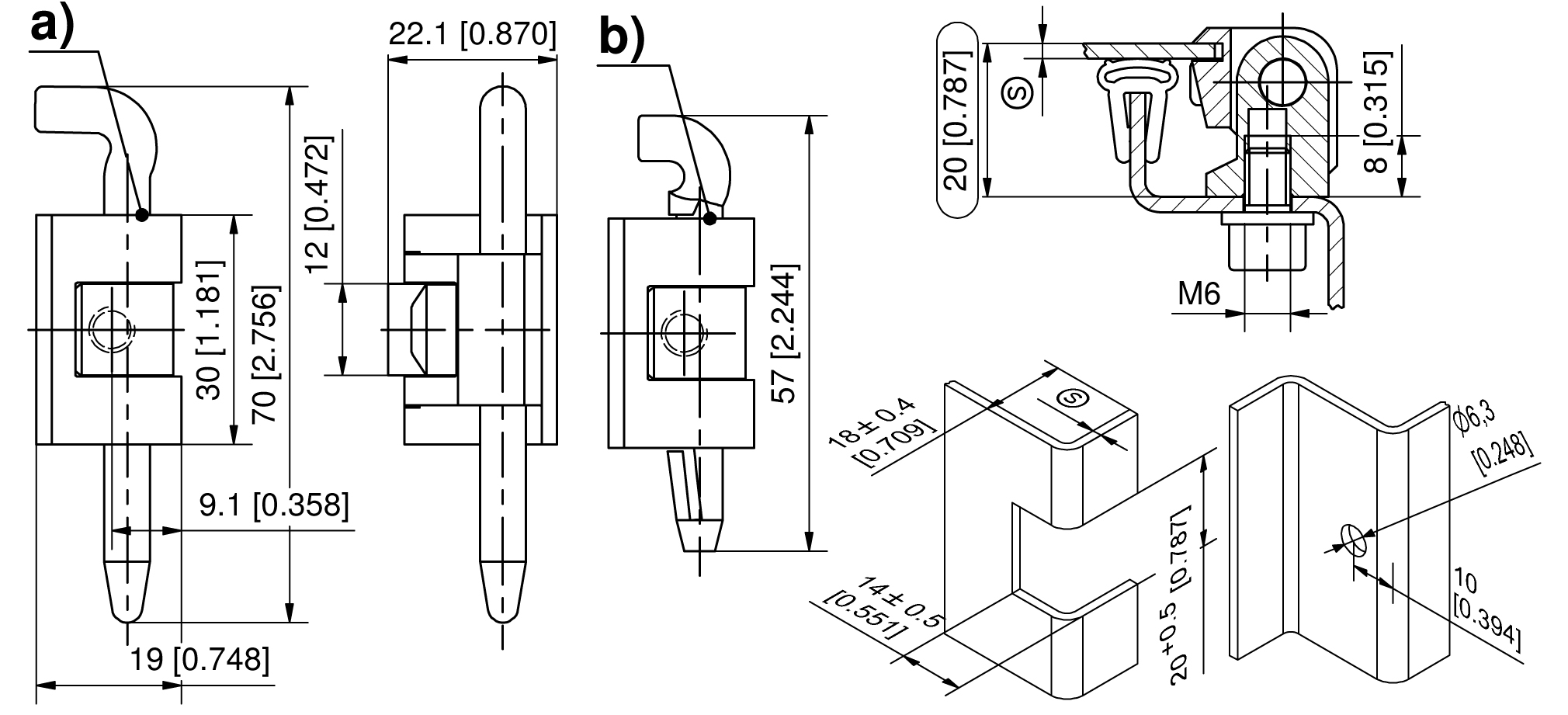

Hinge Pr05 180°
Available versions
Hinge, zinc die
Product number
Surface
Door-thickness (S)
Material pin
Pin length L
Pin version
Installation type
Delivery Unit
a)
212-9001.00-00000
glossy chrome plated
1.5 mm - 2 mm
steel, zinc plated
70 mm
loose
screw-on
10 pcs.
a)
212-9002.00-00000
glossy chrome plated
1.5 mm - 2 mm
stainless steel
70 mm
loose
screw-on
10 pcs.
b)
212-9003.00-00000
glossy chrome plated
1.5 mm - 2 mm
POM
57 mm
self-locking
screw-on
10 pcs.
a)
212-9501.00-00000
glossy chrome plated
2.5 mm - 3.2 mm
steel, zinc plated
70 mm
loose
screw-on
10 pcs.
a)
212-9502.00-00000
glossy chrome plated
2.5 mm - 3.2 mm
stainless steel
70 mm
loose
screw-on
10 pcs.
b)
212-9503.00-00000
glossy chrome plated
2.5 mm - 3.2 mm
POM
57 mm
self-locking
screw-on
10 pcs.
a)
212-9004.00-00000
black
1.5 mm - 2 mm
steel, zinc plated
70 mm
loose
screw-on
10 pcs.
a)
212-9005.00-00000
black
1.5 mm - 2 mm
stainless steel
70 mm
loose
screw-on
10 pcs.
b)
212-9006.00-00000
black
1.5 mm - 2 mm
POM
57 mm
self-locking
screw-on
10 pcs.
a)
212-9504.00-00000
black
2.5 mm - 3.2 mm
steel, zinc plated
70 mm
loose
screw-on
10 pcs.
a)
212-9505.00-00000
black
2.5 mm - 3.2 mm
stainless steel
70 mm
loose
screw-on
10 pcs.
b)
212-9506.00-00000
black
2.5 mm - 3.2 mm
POM
57 mm
self-locking
screw-on
10 pcs.
