Concealed Hinge Pr03 120°

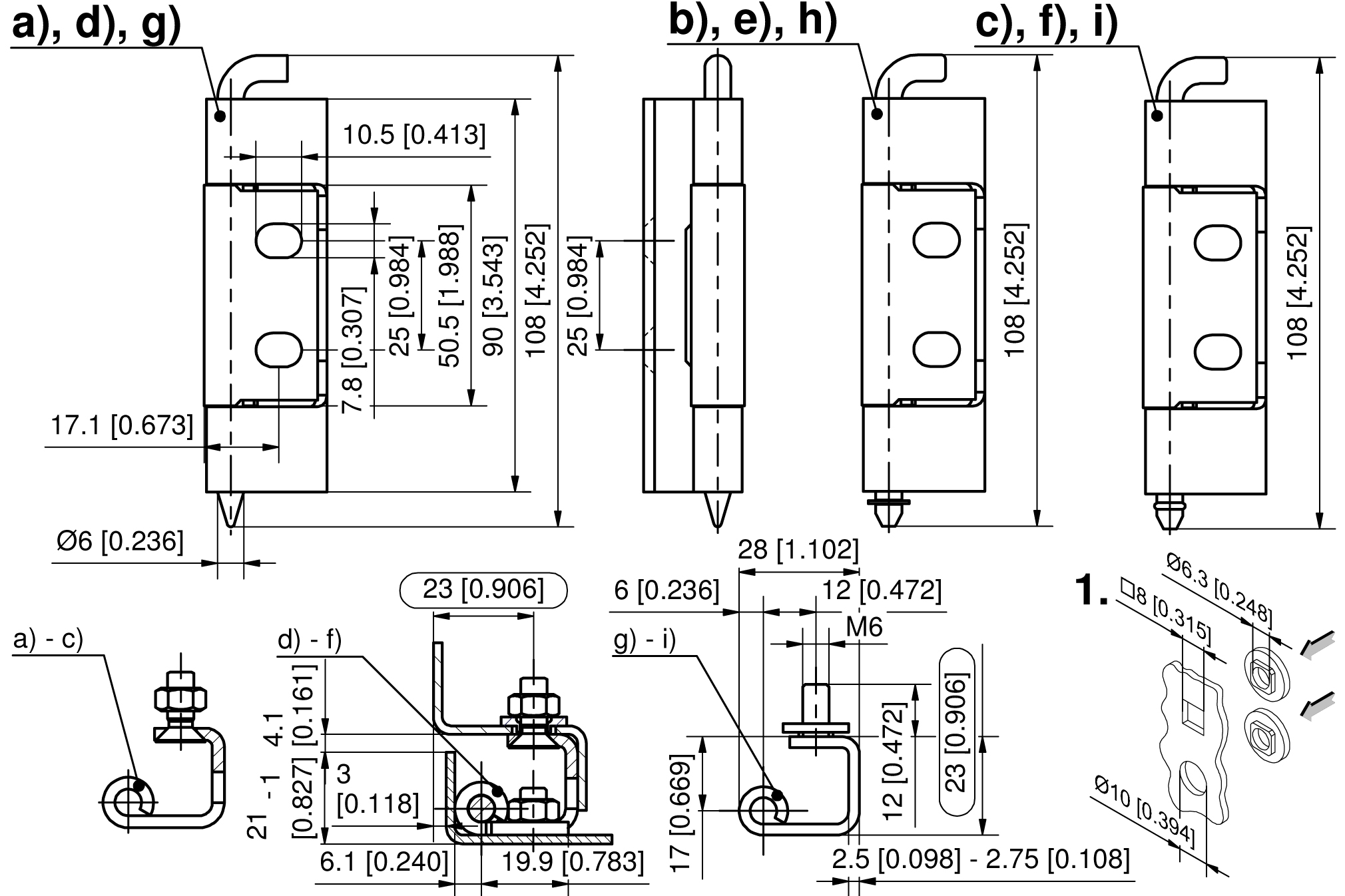

Available versions
Concealed hinge
Product number
Frame-part
cutout in frame
Pin version
Delivery Unit
a)
243-9107.00-00000
with countersunk holes for M6
Ø6.3 or M6
without groove
10 pcs.
b)
243-9108.00-00000
with countersunk holes for M6
Ø6.3 or M6
with groove incl. locking washer DIN6799
10 pcs.
c)
243-9108.00-00001
with countersunk holes for M6
Ø6.3 or M6
with groove incl. o-ring
10 pcs.
d)
243-9105.00-00000
with countersunk holes for M6 + fastening washer
□8 or Ø10
without groove
10 pcs.
e)
243-9106.00-00000
with countersunk holes for M6 + fastening washer
□8 or Ø10
with groove incl. locking washer DIN6799
10 pcs.
f)
243-9106.00-00001
with countersunk holes for M6 + fastening washer
□8 or Ø10
with groove incl. o-ring
10 pcs.
g)
243-9111.00-00000
with studs for M6 + fastening washer
Ø6.3, □8, Ø10
without groove
10 pcs.
h)
243-9112.00-00000
with studs for M6 + fastening washer
Ø6.3, □8, Ø10
with groove incl. locking washer DIN6799
10 pcs.
i)
243-9112.00-00001
with studs for M6 + fastening washer
Ø6.3, □8, Ø10
with groove incl. o-ring
10 pcs.
